Tamiya RC MERCEDES-BENZ ACTROS : 56335

Description

Tamiya Mercedes-Benz Actros 1851 GigaSpace 1/14 RC Tractor Truck Kit – 56335

The Tamiya Mercedes-Benz Actros 1851 GigaSpace – 56335 brings one of Europe’s most recognisable modern tractor units to Tamiya’s impressive 1/14 scale RC truck range.

Based on the award-winning Mercedes-Benz Actros, this highly detailed assembly kit combines an accurately reproduced GigaSpace cab with a realistic truck chassis, leaf-spring suspension and Tamiya’s fully functional 3-speed transmission.

At 458mm long, the finished Actros makes an imposing model in its own right and becomes even more impressive when coupled to one of Tamiya’s compatible 1/14 scale semi-trailers.

Highly Detailed Mercedes-Benz Actros

Tamiya has faithfully recreated the distinctive styling of the full-size Actros 1851 GigaSpace using detailed ABS plastic body components.

From the imposing front grille and aerodynamic cab design to the lighting housings and scale detailing, the body provides an excellent base for creating either a realistic fleet vehicle or a fully customised show truck.

LED light buckets are incorporated into the model, allowing optional LEDs to be installed for even greater realism.

Working 3-Speed Transmission

One of the highlights of Tamiya’s 1/14 scale truck range is the mechanical 3-speed gearbox.

With a suitable 4-channel radio system and gear-change servo, the transmission can be shifted remotely while driving, giving the model three selectable gear ratios and adding considerably to the scale driving experience.

Power is supplied by the included 540-size motor and transmitted to the driven rear axle.

Realistic Truck Suspension

The Actros uses a float-mounted die-cast front axle together with a reinforced resin rear axle.

Metal leaf springs and aluminium friction dampers recreate the suspension layout of a full-size tractor unit, while the built-in differential allows the driven wheels to rotate at different speeds when cornering for smoother operation.

Ready for a Tamiya Semi-Trailer

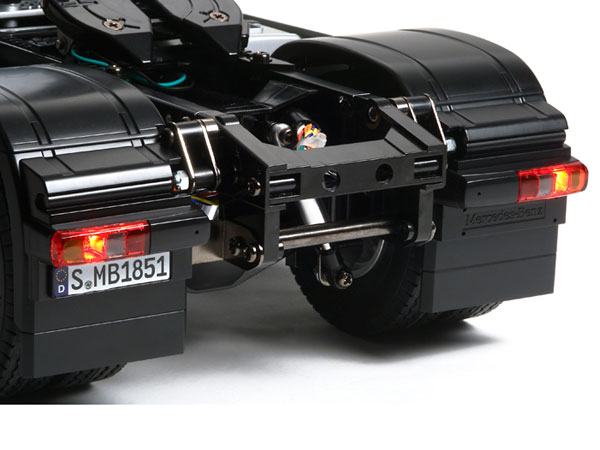

A working fifth-wheel coupler allows the Actros to be connected to compatible Tamiya 1/14 scale semi-trailers, opening up plenty of possibilities for building your ideal articulated rig.

Specifications

• Scale: 1/14
• Model: Mercedes-Benz Actros 1851 GigaSpace
• Length: 458mm
• Width: 195mm
• Height: 305mm
• Construction: Assembly kit
• Drive: Rear-wheel drive
• Transmission: 3-speed gearbox
• Motor: 540-size electric motor
• Differential: Gear differential
• Front Axle: Float-mounted die-cast construction
• Rear Axle: Reinforced resin construction
• Suspension: Metal leaf springs
• Dampers: Aluminium friction dampers
• Steering: Bell-crank system
• Tyres: Rubber radial tyres
• Body: ABS plastic
• Bearings: Metal bushings
• LED Light Buckets: Included
• LEDs: Sold separately
• Electronic Speed Controller: Not included

Required to Complete

To complete and operate the Tamiya Mercedes-Benz Actros 1851 GigaSpace 56335, you will require:

• 4-channel radio system
• Steering servo
• Gear-change servo
• Forward/reverse electronic speed controller
• 7.2V battery pack
• Compatible battery charger
• Transmitter batteries
• Tamiya TS paints and finishing supplies
• Modelling tools

Add Even More Realism

The Actros can be further customised using Tamiya’s extensive range of 1/14 Tractor Truck Option Parts, including lighting and detailing accessories.

For builders wanting the complete scale-truck experience, a compatible Tamiya Multi-Function Control system can also be considered to add realistic lighting, sound and additional functions.

Tamiya Part Number: 56335

The Tamiya Mercedes-Benz Actros 1851 GigaSpace is a superb choice for anyone wanting a modern European tractor unit. The combination of the highly detailed Mercedes-Benz cab, realistic suspension, working 3-speed transmission and extensive customisation potential makes the 56335 just as enjoyable to build as it is to drive.

For choices of paint colours click here: Tamiya TS Paints

Spares & parts

Need a replacement part for your Tamiya Mercedes-Benz Actros? View all Tamiya Mercedes-Benz Actros spares & parts. Not sure which part you need? Call or visit the TJD Models shop for advice and repairs.
