Tamiya Mercedes Arocs 4151 Tipper Truck 8X4 : 56366

Tamiya Mercedes-Benz Arocs 4151 8×4 Tipper Truck – 56366

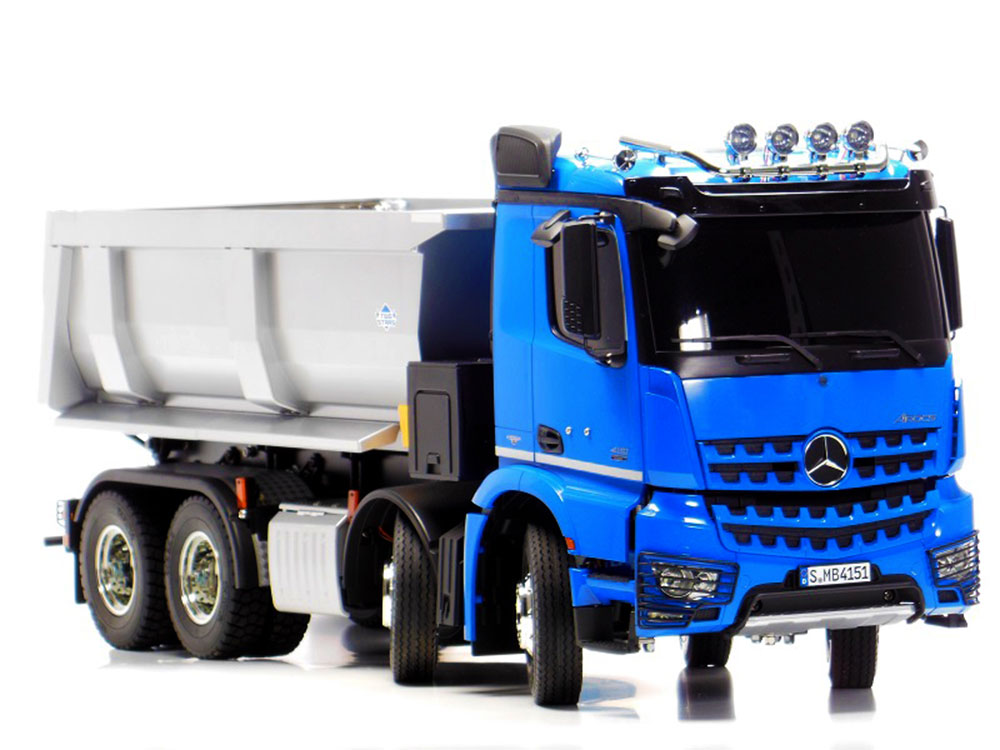

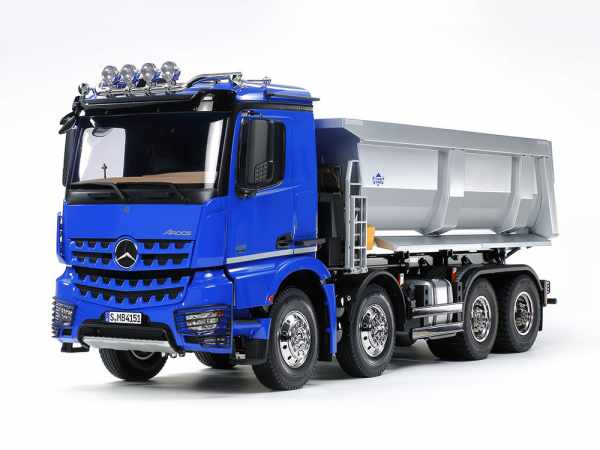

Take on some serious scale hauling with the impressive Tamiya Mercedes-Benz Arocs 4151 8×4 Tipper Truck – 56366, a heavyweight 1/14 scale RC truck assembly kit packed with realistic engineering and working features.

Based on the formidable Mercedes-Benz Arocs 4151, this huge four-axle truck features twin steering front axles, twin driven rear axles, a working 3-speed transmission and a large tipper body with a durable metal subframe.

At an impressive 667mm long, the Arocs has serious road presence and is an excellent choice for anyone looking for something a little different from a conventional Tamiya tractor and trailer combination.

Realistic Mercedes-Benz Arocs Styling

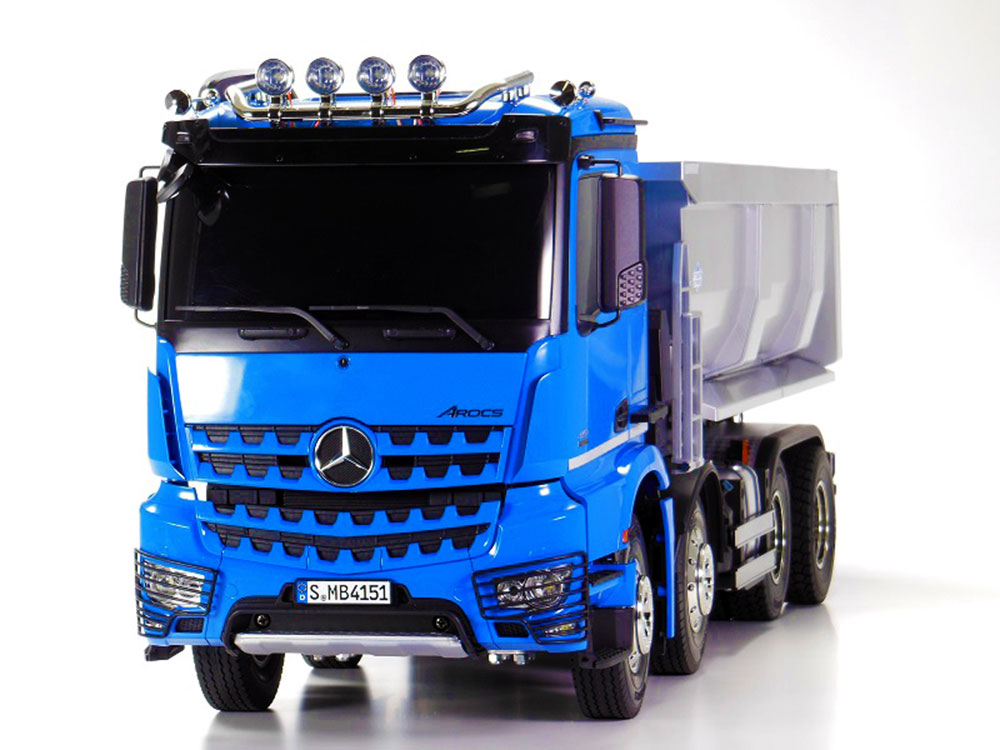

The injection-moulded cab faithfully recreates the purposeful appearance of the full-size Mercedes-Benz Arocs 4151.

Tamiya has reproduced numerous scale details including the cab rails, air intake duct, side mirrors and sun visor, helping give the completed model an authentic heavy-construction truck appearance.

The roof visor also features realistic light pods which can be fitted with separately available LEDs for even greater realism.

Heavy-Duty 8×4 Chassis

Underneath the detailed cab is a substantial four-axle 8×4 chassis built around Tamiya’s proven ladder-frame construction.

Strong aluminium side channels and resin crossmembers provide the foundation for the drivetrain, suspension and large rear tipper body.

The chassis features two steering front axles and two driven rear axles, accurately reflecting the layout of a full-size heavy-duty 8×4 truck.

Both front axles are operated from a single steering servo, with the wheels turning at slightly different angles for more realistic steering geometry.

Powerful 35T Truck Motor

The Arocs is supplied with Tamiya’s TR Mighty-Tuned 35T motor, providing the low-speed torque required for a large RC truck.

Power is delivered through the transmission to the twin rear axles, providing plenty of pulling ability and allowing the truck to carry suitable loads in its tipper bed.

Working 3-Speed Transmission

A fully functional 3-speed gearbox adds another level to the driving experience.

When used with suitable multi-channel radio equipment, the transmission can be shifted remotely, allowing you to work through the gears while driving.

Combined with the torque-focused 35T motor, this gives the Arocs a much more realistic scale driving experience.

Large Tipper Bed with Metal Subframe

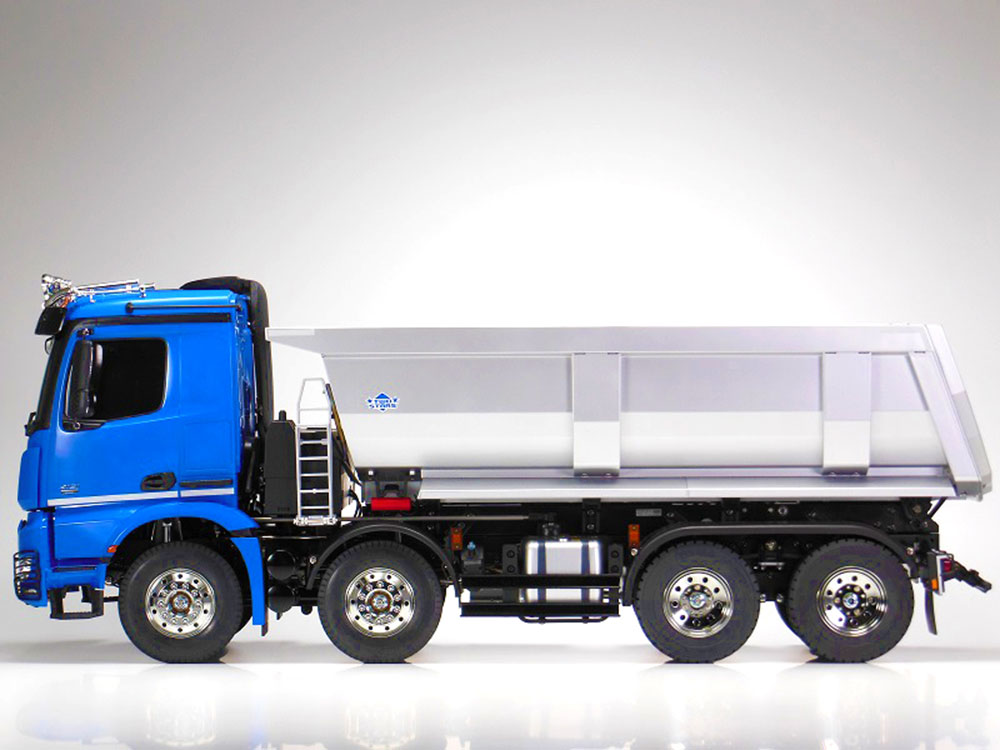

The substantial rear tipping body is one of the standout features of the Arocs 4151.

Tamiya uses a metal subframe beneath the bed for excellent strength and durability, allowing the truck to carry suitable scale loads.

The battery compartment is cleverly positioned above the second axle and has been designed to remain accessible even when cargo is being carried in the bed.

Add Remote-Controlled Tipping

Want to make the tipper fully functional?

Fit the separately available Tamiya Tipper Truck Motorised Actuator Set – 56545 and the bed can be raised and lowered remotely from your transmitter.

The actuator provides smooth powered movement of the tipping mechanism, transforming the Arocs into a genuinely functional RC tipper truck.

Realistic Suspension

The four-axle chassis uses metal leaf springs with built-in coil springs, providing a durable suspension system while maintaining the scale mechanical appearance expected from Tamiya’s 1/14 truck range.

Combined with the twin steering and twin driven rear axles, there’s plenty of mechanical detail to enjoy during the build.

Add Lights, Sounds & Vibration

For even greater realism, the Arocs is compatible with Tamiya’s separately available Multi-Function Control systems, including:

• Tamiya MFC-03 – 56523

These can add realistic truck sounds, lighting effects, vibration and additional electronic functions to the finished model.

Key Features

• 1/14 scale RC assembly kit
• Officially reproduced Mercedes-Benz Arocs 4151
• Heavy-duty 8×4 four-axle configuration
• Twin steering front axles
• Twin driven rear axles
• Realistic differential steering angles
• Strong aluminium ladder-frame chassis
• Resin chassis crossmembers
• Large scale tipper/dump body
• Metal tipper-bed subframe
• Compatible with optional motorised tipping system
• TR Mighty-Tuned 35T motor included
• Fully functional 3-speed transmission
• Remote gear changing with suitable radio equipment
• Metal leaf-spring suspension
• Built-in coil springs
• Convenient battery access
• Detailed injection-moulded cab
• Roof-mounted light pods
• Compatible with optional LED lighting
• Compatible with Tamiya MFC-01 and MFC-03
• Tamiya model number: 56366

Specifications

• Scale: 1/14
• Length: 667mm
• Width: 196mm
• Height: 268mm
• Chassis: 8×4 / 4-axle
• Steering: Twin front axles
• Drive: Twin rear axles
• Transmission: 3-speed
• Motor: TR Mighty-Tuned 35T
• Chassis Construction: Aluminium side channels with resin crossmembers
• Suspension: Metal leaf springs with built-in coil springs
• Tipper Bed: Metal subframe construction

Required to Complete

This is an RC assembly kit and requires additional equipment before it can be operated:

• Suitable 4-channel or greater radio system
• Receiver and required servos
• Electronic Speed Controller (ESC), unless using a compatible multifunction system with integrated speed control
• Suitable battery
• Compatible battery charger
• Tamiya paints and finishing materials
• Assembly tools

Recommended Optional Upgrades

For the full Arocs experience, we highly recommend the Tamiya Tipper Truck Motorised Actuator Set – 56545, allowing the tipper body to be raised and lowered under radio control.

Combine this with the Tamiya MFC-03 – 56523 for realistic lighting, sound and vibration effects and you can create an incredibly convincing working scale truck.

A Serious Piece of Tamiya Engineering

The Tamiya Mercedes-Benz Arocs 4151 8×4 Tipper Truck – 56366 is much more than a large RC model.

With its four-axle chassis, twin steering, twin rear-axle drive, 3-speed gearbox, torque-focused 35T motor and optional powered tipping system, there’s a huge amount of engineering to build and enjoy.

Whether you’re manoeuvring around a scale truck course, carrying loads or operating the powered tipper body, the Arocs 4151 is one of those Tamiya trucks that really shows what the 1/14 scale range is all about.
