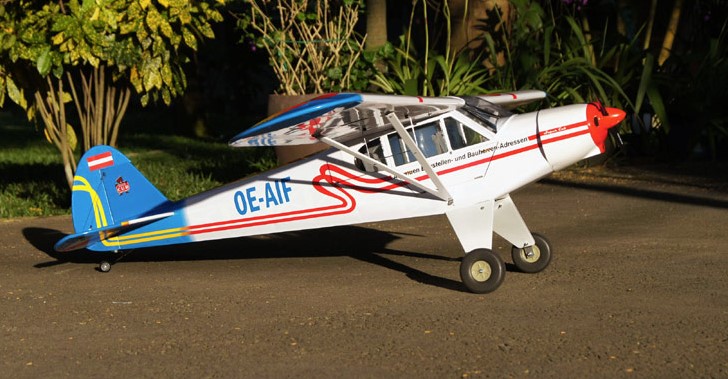

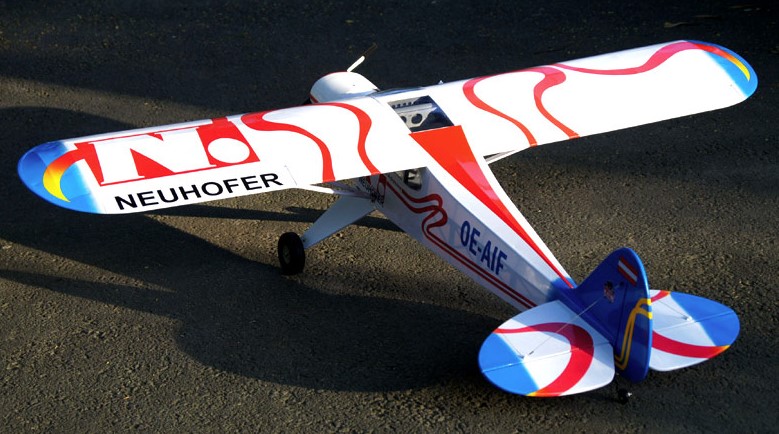

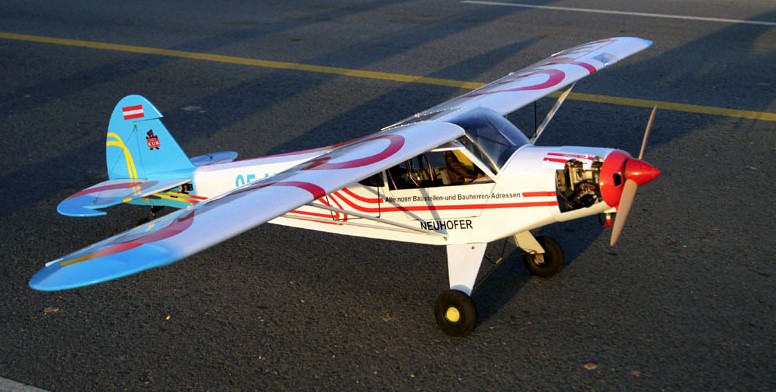

Piper PA-18 Super Cub
Overview
The Piper PA-18 Super Cub is a two-seat, single-engine monoplane. Introduced in 1949 by Piper Aircraft, it was developed from the Piper PA-11, and traces its lineage back through the J-3 to the Taylor E-2 Cub of the 1930s. In close to 40 years of production, over 9,000 were built. Super Cubs are commonly found in roles such as bush flying, banner and glider towing.
This PA-18 was designed for super light weight, so you can enjoy this plane as a scale plane with flying feel like a high wing trainer.
Features
All Balsa and Light-Ply construction
Fully covered with weathered detailing
Fibreglass cowling
Control surfaces pre-hinged and installed
Two piece wing with aluminium wing joiner
Pilot door can open-close
Scale Wheel of Cub
Includes:
Assembly instructions with stage-by-stage illustrations – [ Download ]
Plastic dummy engine
Plywood seat
Fibreglass cowling
Electric motor mount
Wheels
Aluminium wing joiner
Engine mounts
Spinner
Fuel tank
Decals and all hardware
Required Hardware (Not Supplied)
Transmitter, Motor, Propeller, Servos, Battery, Extension Leads, Glue, Tools and Silicone Fuel Line (For GP).
Recommended Hardware
Electric Motor & ESC – Electrospeed Boost 40 Power Pack
Servos – 4 (5 for IC) x MacGregor MG1703DS 3.3Kg.cm/0.10s Midi Digital Servo
Specifications:
Wingspan: 63.7in (1620mm)
Fuselage Length: 49.2in (1250mm)
Weight (Ready to fly): ~ 2.6kg – 2.9kg (~ 5.73 – 6.39lbs)
Engine: .46 (2-stroke) or .52 (4-stroke)
Radio: 5 channels with 5 servos (4 for electric)
Electric Motor: Electrospeed Boost 40 Power Pack
Battery: Li-Po Battery, 14.8V, 3700mAh
REQUIRED HARDWARE (NOT SUPPLIED)
- Transmitter, Motor, Propeller, Servos, Battery, Extension Leads, Glue, Tools and Silicone Fuel Line (For GP).
RECOMMENDED HARDWARE (NOT SUPPLIED)
- Electric Motor & ESC – Electrospeed Boost 40 Power Pack
- Servos – 4 (5 for IC) x MacGregor MG1703DS 3.3Kg.cm/0.10s Midi Digital Servo
Please note: Photos are for colour scheme purposes only, this .46 size version of the PA-18 Super Cub does not have flaps.
