7% OFF

£12.99

In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received

EAN: MAC1703 SKU: MAC1703 Category:

Description

Description

Overview

Features:

  • High Performance Midi Digital Servo
  • High-Precision Metal Gears
  • High Quality Core Motor
  • 25T (Futaba Type) Spline
  • JR Style Lead and Plug
  • Equivalent to Pichler DS3012/C5638 Master Servo

Product Description:

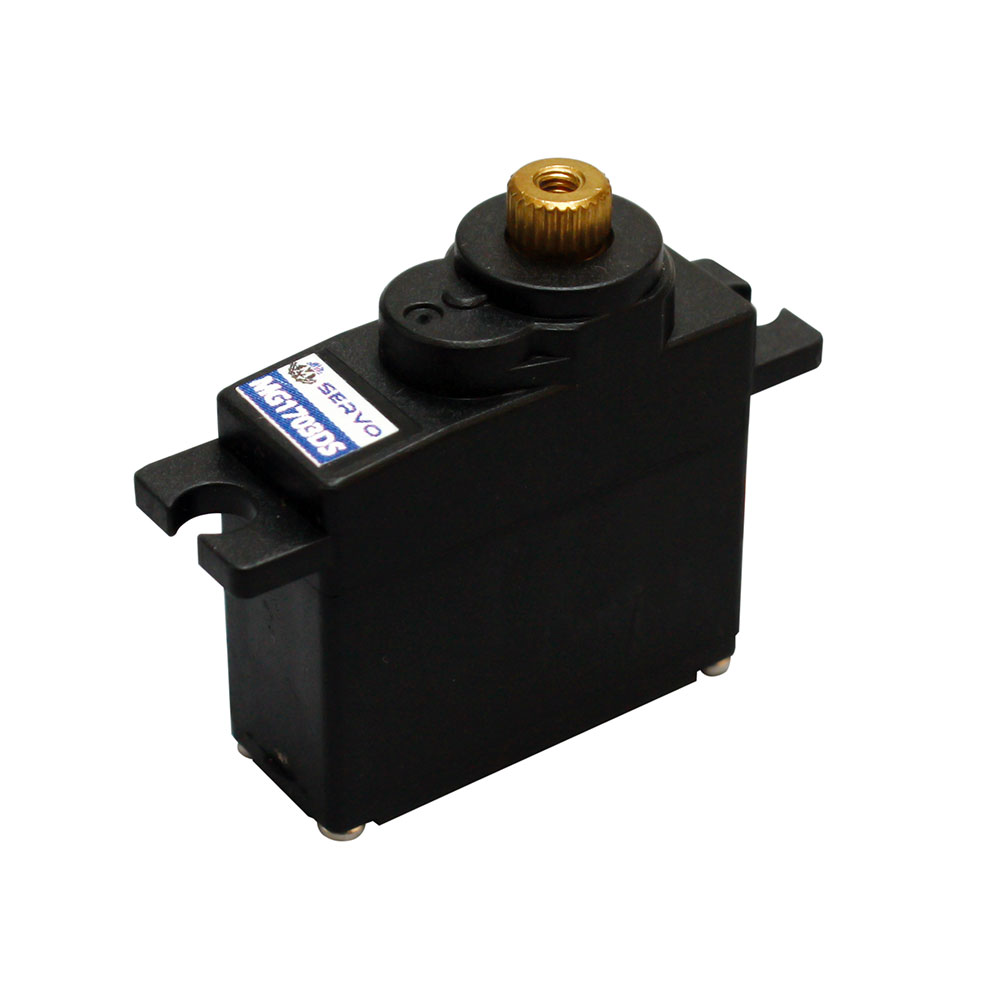

The MG1703DS is part of MacGregor’s range of digital servos. This midi digital servo is ideal for VQ Models ARF Kits.

Specifications:

Operating Voltage:DC 4.8 – 6.0V
Dead Band:1µs 1520µs / 330hz
Motor:Core Motor
Operating Speed (4.8V):0.12sec/60°
Operating Speed (6.0V):0.10sec/60°
Stall Torque (4.8V):2.0Kg.cm
Stall Torque (6.0V):3.3kg.cm
Dimensions:30 x 12 x 32mm
Weight:17g

Specification

Specification

Servo Power

up to 2.9kg

Servo Voltage

Servo 4.8v, Servo 6v

Servo Operation

Digital Servo

Brand

MacGregor

Servo Size

Micro / Mini
