Electrospeed Boost 40 Power Pack ELE001

£74.99

In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received

Description

Description

Electrospeed Boost 40 Power Pack ELE001

Product Description

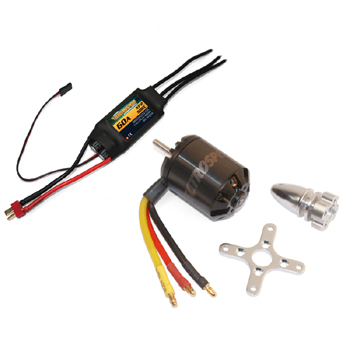

Electrospeed Boost 40 Power Pack

Includes:

1 x Electrospeed 3548/05 900KV Brushless Outrunner Motor.
1 x Electrospeed XP2 60A SBEC Brushless ESC.
Brushless Outrunner RC Motor – Electrospeed 3548/05 900KV
FEATURES:
710 watt motor
9 – 18 NiMh cells
3 – 6 LiPo cells
Prop size from 11in (larger prop with less cells)
Shaft Diameter 4mm Shaft
Motor weight 170g
Speed Controller Recommended 60A ESC
Electrospeed 3548/05 900KV
The sheer power of Electrospeed brushless motors far exceeds many motors costing 2 – 3 times their price. All of the MacGregor Electrospeed motors are manufactured to MacGregor’s demanding standards, using the finest quality components. Our High Tech manufacturer uses state of the art CNC machine tools, giving the unique MacGregor Electrospeed design, this design means a lower weight motor with our black finish for better heat dissipation.

Every component of the motors are manufactured from the highest quality materials, only the best Neodym magnets are used along with special high temperature wire for windings, giving these motors reliability normally associated with much more expensive products.

MacGregor Electrospeed motors are designed to provide reliable power for your model at respectable prices, a total performance package when used in conjunction with our XP2 Speed Controllers.

TECHNICAL SPECIFICATION
Length inc shaft: 67mm
Width: 35mm
Depth: 48mm
Weight: 170g
Propeller size range: From 11 x 8in
Inrunner/Outrunner: Outrunner
KV: 0 – 900
Motor Diameter: 35mm
Electrospeed XP2 60A SBEC Brushless ESC – RTF Speed Controller
Fitted with Deans connector for the battery and 4mm gold connectors for the motor.

This series of speed controllers have high technology and perfect function. Aimed at none-hall, direct current brushless motors, several parameters can be set through a programming card or key on the ESC and are convenient to use.

XP2 SBEC 60A BRUSHLESS SPEED CONTROLLER FEATURES:
Full protection feature including low voltage, over-heat, throttle signal loss, startup protection and self-check.
Compatible with most sensor less brushless motors.
Excellent startup performance, linear throttle and quick throttle response.
Highest motor speed supported 210,000RPM (2 poles), 70,000RPM (6 poles) and 35,000(12 poles).
Easily configured using a programming card.
System can automatically detect throttle neutral point.
3 timing modes can match different motors.
3 modes of start force adjustment.
Governor mode for heli
Reverse motor direction
SPECIFICATION:
Low resistance PCB
Input Voltage: Support 2-6 cell Li-Po, 5-18 NiMh
Continue current: 60A, (Burst max 80A 10 secs)
BEC output: 5A/5V
Dimensions: 77 x 35 x 14 mm
Weight: 53.4g
Blue Motor Wire 14AWG
Red and Black Battery Wire 12AWG

Specification

Specification

Brand

Electrospeed

Distributor

MacGregor Industries

TopsysDatabase

Topsys

ESC Amps

41-60A

LiPo Cells

2S, 3S, 4S, 5S, 6S
