Stinger 40cc Twin Cylinder 2-Stroke Petrol Engine

Description

Stinger 40cc Twin Cylinder

Key Features
Walbro carburettor.
Powerful 40cc (2.44cu in.) displacement.
1500 to 8600rpm range
19×8 to 20×10″ propeller range.
Uses 30:1 (recommended) pre-mixed fuel.
Auto advance electronic ignition system.
Easy starting.
Twin mufflers.
Includes CDI unit, mufflers and spark plugs.
1323g

What’s in the Box
1x Stinger 40cc twin.
1x Electronic CDI unit.
2x Spark plugs.
2x Mufflers.
2x Muffler extension pipes.
1x Gasket and bolt set.
1x Throttle arm extension.
1x Comprehensive instruction manual.
Needed to Complete
1x 19×8, 19×10, 20×8 or 20×10″ propeller.
1x Ignition battery (6 – 8.4V NiMH, 6.6V LiFe or 7.4V LiPo).

Product Description
One of the strongest and most powerful engines in its class, RCGF’s compact 40cc Stinger twin has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that’s manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.

Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.

Stinger 40cc Twin Cylinder Specification:
Displacement (cc): 40
Bore (mm): 32
Stroke (mm): 26
Weight (g): 1323
Fuel: Petrol
Petrol / Oil mix: 30:1
Static thrust at 100m (lb): 23.4
Static thrust at 1800m (lb): 22.1
Spark plug: 1/4-32

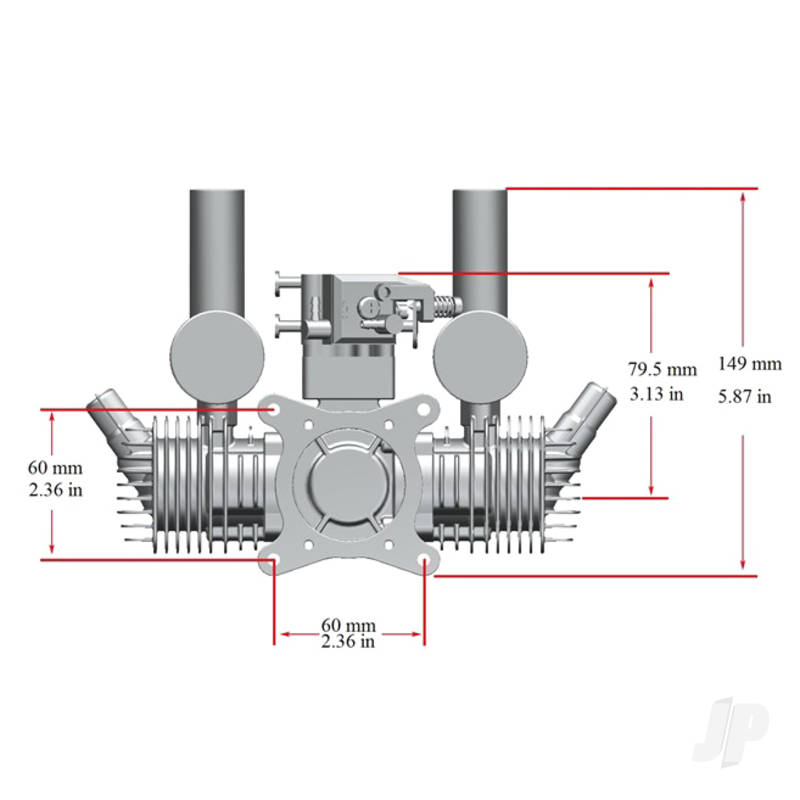

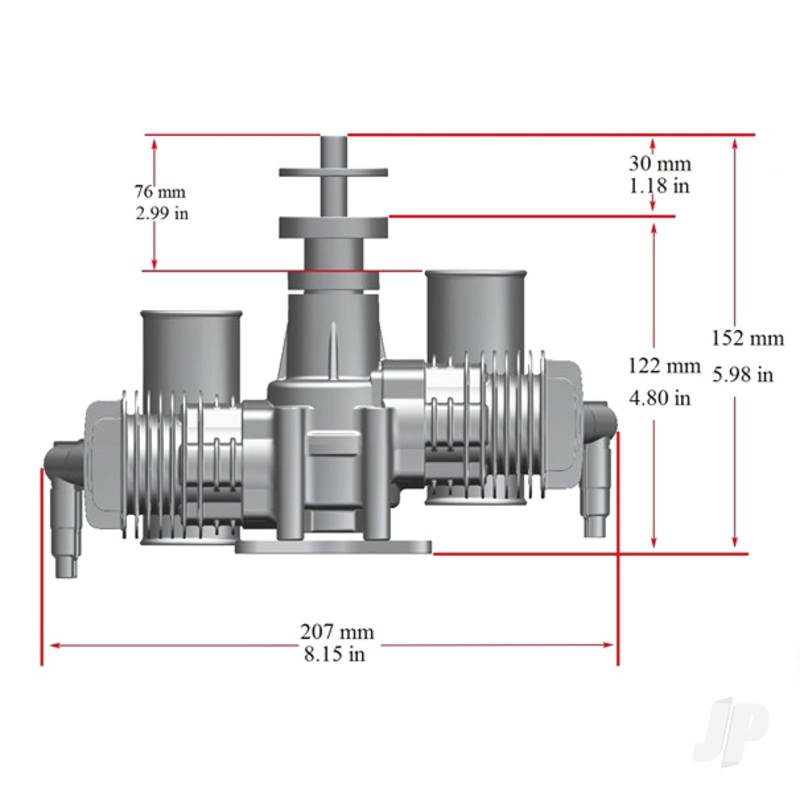

Engine Technical Specifications
Weights & Dimensions
Weight 1323g 46.67oz
Shipping Weight 0.00kg 0.00lbs
Application Aircraft
Experience Level Experienced
Recommended Usage Environment Outdoors / designated model flying site
