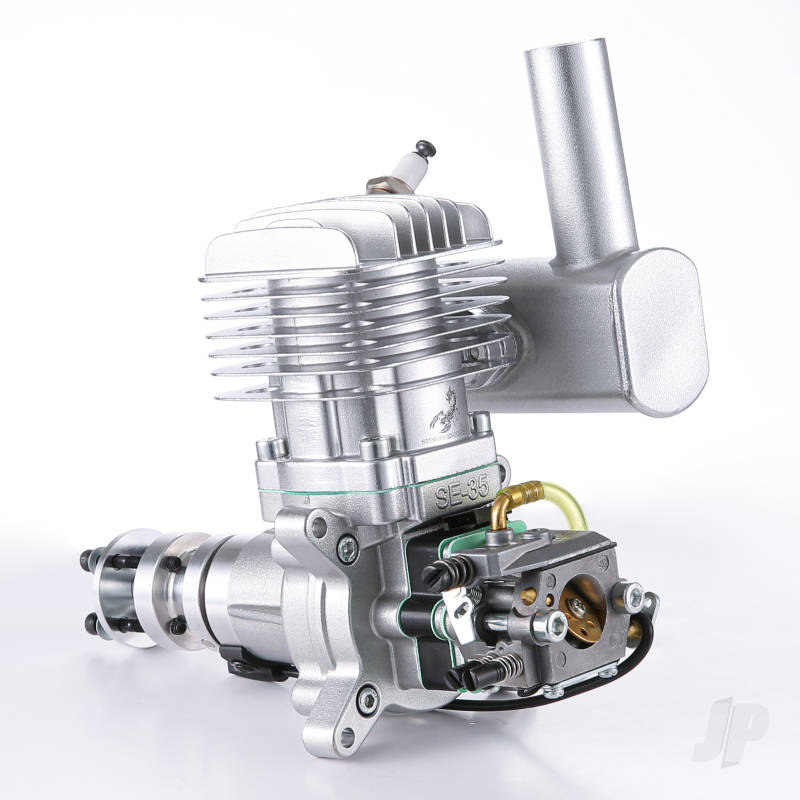

Stinger 35cc Single Cylinder Side Exhaust 2-Stroke Petrol Engine

Description

Stinger 35cc Single Cylinder

Key Features
Walbro carburettor.
Powerful 35cc (2.13cu in.) displacement.
1500 to 9000rpm range.
19×8 to 20×10″ propeller range.
Uses 30:1 (recommended) pre-mixed fuel.
Auto advance electronic ignition system.
Easy starting.
Includes CDI unit, muffler and spark plug.
1145g (inc. muffler and CDI)

What’s in the Box
1x Stinger 35cc Single.
1x Electronic CDI unit.
1x Spark plug.
1x Muffler.
1x Gasket and bolt set.
1x Throttle arm extension.
1x Engine stand-off set.
1x Comprehensive instruction manual.
Needed to Complete
1x 19×8, 20×8 or 20×10″ propeller.
1x Ignition battery (6 – 8.4V NiMH, 6.6V LiFe or 7.4V LiPo).

Product Description
One of the strongest and most powerful engines in its class RCGF’s compact Stinger 35cc SE has been built to offer years of trouble-free service. Re-designed and re-engineered, Stinger engines incorporate a more robust metallurgy in their parts and a tougher crank system allied to exceptionally high quality bearings. Add this to a case that’s manufactured from a tailored no-compromise aluminium alloy and the result is not only an impressive power output but a stronger, more attractive product all round.

Having stood the test of time by providing solid, reliable and powerful petrol engines for well over a decade, greater numbers of R/C pilots are turning to Stinger engines for their aircraft, partly due to the obvious fuel efficiency of the type but also due to the economy of scale that these particular purpose-designed two-strokes offer, especially as an alternative to traditional glow power. If you love engines, as many do, Stinger is the way to go.

Stinger 35cc Single Cylinder Specification:
Displacement (cc): 35
Bore (mm): 39
Stroke (mm): 30
Weight (g): 1145
Fuel: Petrol
Petrol / Oil mix: 30:1
Static thrust at 100m (lb): 19.9
Static thrust at 1800m (lb): 19.0
Spark plug: NGK CM6

Engine Technical Specifications

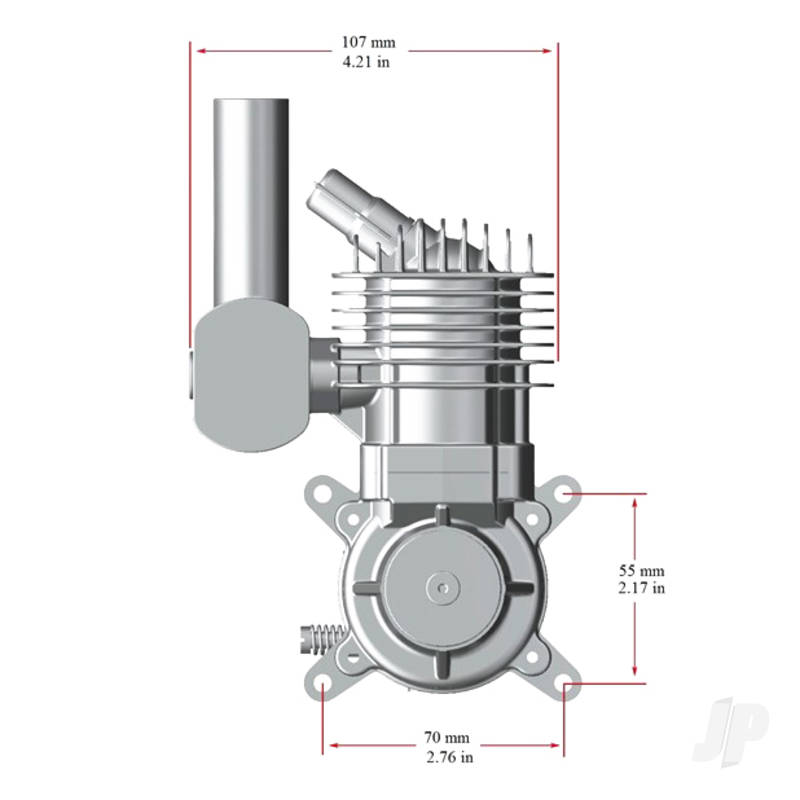

Weights & Dimensions
Weight 1145 (inc. muffler and CDI)g 40.39oz
Shipping Weight 0.00kg 0.00lbs
Application Aircraft
Experience Level Experienced
Recommended Usage Environment Outdoors / designated model flying site
