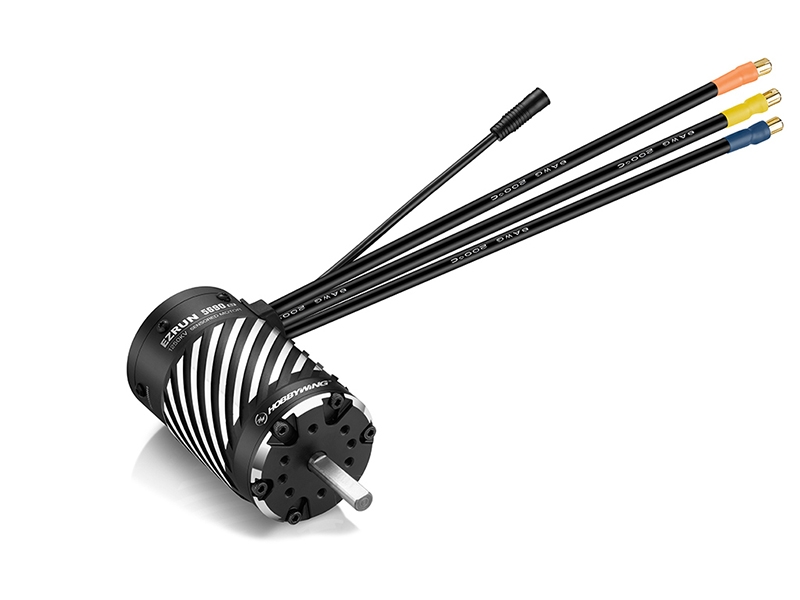

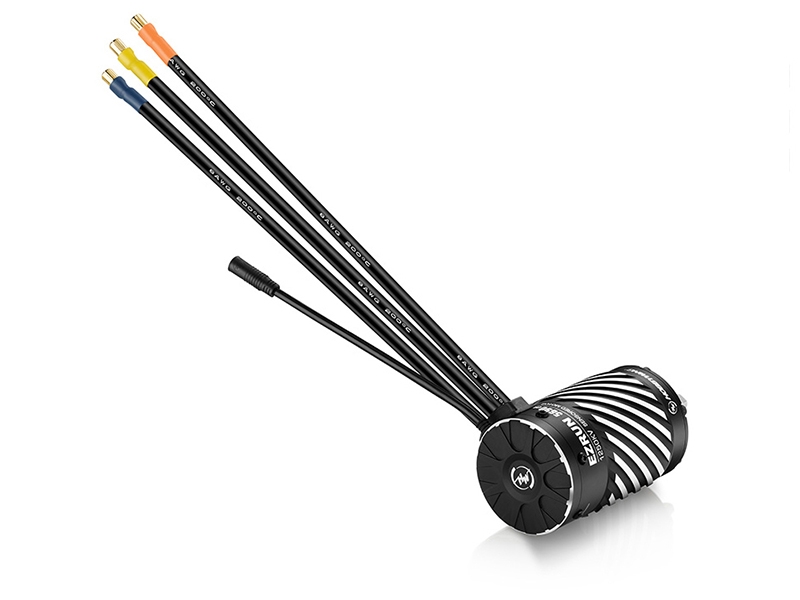

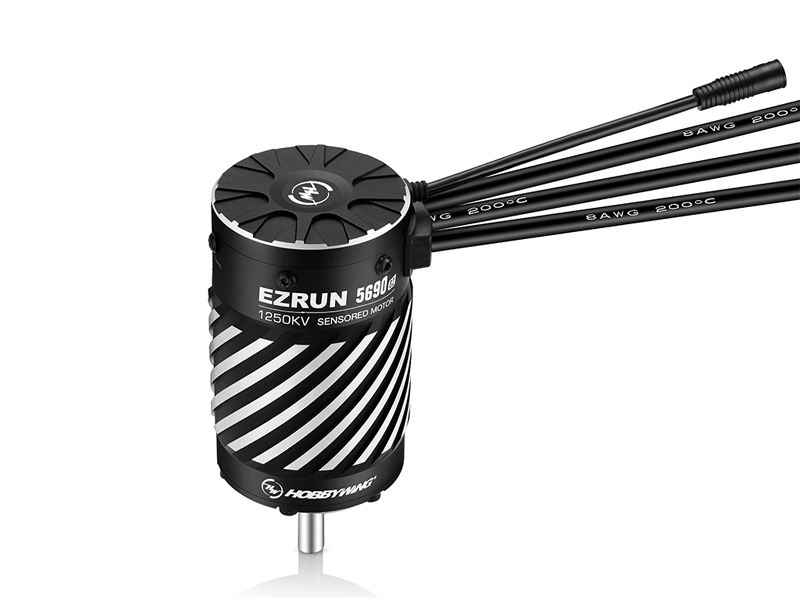

Hobbywing EZRUN – 5690SD – 1250KV – BLACK – G2 MOTOR

Description

Hobbywing EZRUN – 5690SD – 1250KV – BLACK – G2 MOTOR

Elegant Appearance

The motor casing adopts an innovatively spiral groove heat dissipation structure. It not only has good heat dissipation, but visually appealing.

8S Sensored Motor

Wider Adaptability
Motor comes with 6.5mm plugs pre installed onto the motor power wires. Additional 8MM size motor plugs are included for usage with ESC’s that have larger sized 8mm motor plugs like the Max5 G2.

New Sensor Line Interface
All Weather Operation Capability

Wider Adaptability
Motor comes with 6.5mm plugs pre installed onto the motor power wires. Additional 8MM size motor plugs are included for usage with ESC’s that have larger sized 8mm motor plugs like the Max5 G2.

Note:
The IP67 protection level mentioned above is splash-proof, water-proof, and dust-proof under normal use, but it is not permanently effective, and the protection performance may decline due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.

Module design for easy maintenance
The motor adopts a modular structure design, which is convenient for daily cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Specification

• Scale – 1/5th-1/6th
• Brushed/Brushless – BL
• Sensored/Sensorless – SD
• Pole Count – 4
• KV Rating – 1250KV
• LiPo – 3-8s
• No-load Current(A) – 6.6A
• O.D. (mm) – 56 D22*D8*T7
• Length (mm) – 90.2
• Shaft Diameter (mm) – 8
• Weight (g) – 867g
• Front Bearing – D16*D5*T5
• Rear Bearing – D19*D8*T6
• Timing – Fixed
• Applications – 1/6th Short course truck,Truck &1/5th Light-load Truck
