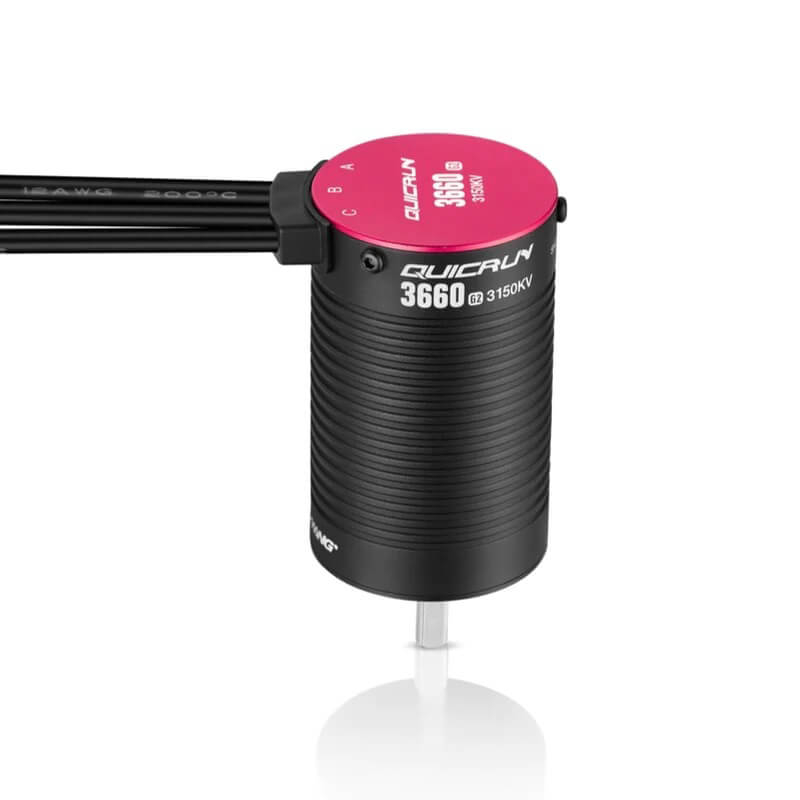

HOBBYWING QUICRUN 3660SL 3150KV G2 MOTOR BLACK HW30404500

Description

HOBBYWING QUICRUN 3660SL 3150KV G2 MOTOR BLACK HW30404500

HOBBYWING QUICRUN 3660SL 3150KV G2 MOTOR BLACK
FEATURES
Explosive output power – 10% increase in maximum output power.

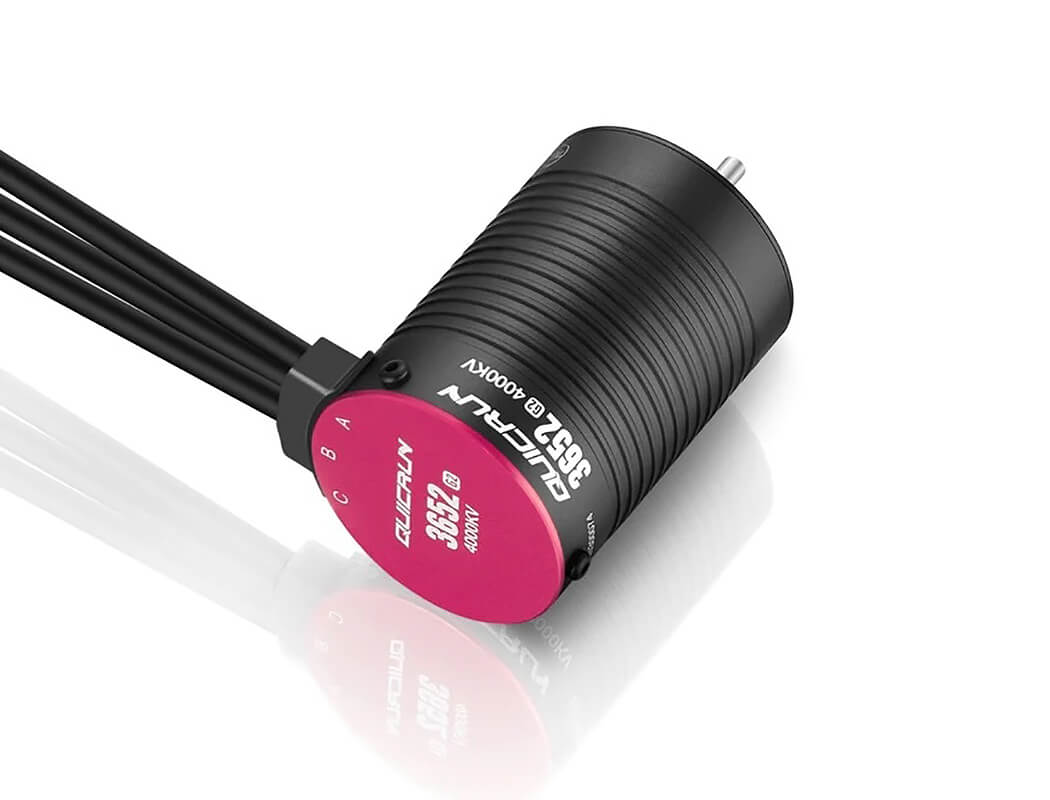

Featuring excellent performance and 8% higher motor efficiency than other motors of the same specifications, the QUICRUN 3660/3652 SL brushless G2 motor operates cooler under the same load than its competitors, making it an ideal choice for your next project.
Equipped with a powerful switch-mode BEC, the motor is capable of providing continuous currents of up to 5A and instantaneous currents of 10A, as well as adjustable 6V/7.4V power that easily drives various powerful and high-voltage steering servos.
Protection features include battery low voltage protection, ESC overheat protection, throttle signal loss protection, current protection, and capacitor overheat protection.
The QUICRUN 3660 / 3652 SL brushless G2 motor is ideal for off-road or on-road hobbiests, with an independent programming port for easy connection to the program card. This eliminates the need to pull the throttle cable out of the receiver, providing a convenient and efficient motor adjustment.
QUICRUN motors feature an explosion-proof rotor design with reinforced aluminum end plates. This advanced design improves balance and strength, as well as providing excellent protection for the internal components. Its high-strength tensile materials ensure reliable performance.
This QUICRUN 3660/3652 SL brushless G2 motor is a reliable choice crafted from high-hardness aluminum, a CNC end cover, and a 0.2mm ultra-thin low-loss silicon steel sheet. It is further enhanced with first-line brand high-precision and high-quality bearings and 200°C high-temperature-resistant enameled wire for strong performance and longevity.
The QUICRUN brushless motor G2 features a modular detachable design for easy maintenance, allowing for thorough daily cleaning and repairs that extend the service life and optimize motor performance.
SPECIFICATIONS
KV: 3150KV
Lipo’s: 2-3S
No-load Current (A): 5.4A
Length (mm): φ=36mm (1.42″) L=60mm (2.36″)
Diameter / Length (mm): φ=5mm (0.20″) L=18.5mm (0.73″)
Bearing size (mm): Front: D16*D5*T5 Rear: D13*D5*T4
Pole: 4
Weight:273g
Applications: 1/10 Truck, Monster Truck
