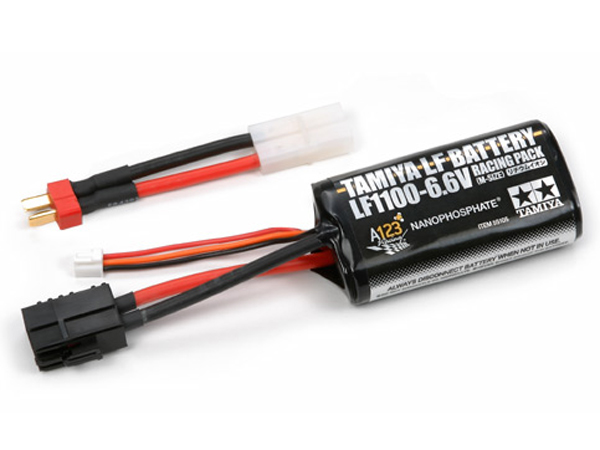

Tamiya LF1100 6.6V M-Size Battery

Description

Tamiya LF1100 6.6V M-Size Battery

This is a high performance Lithium-ion battery pack designed for R/C model use. It features a large-capacity high-power output and has superior safety characteristics making it compatible for quick charging. Minimal self-discharging and reduced memory effects enables a long-lasting battery life, allowing approximately 1000 recharging cycles. Furthermore, use of a discharger to recondition the battery is not required. DEANS connector enables a large amount of current flow whilst ensuring a secure attachment. A connection adaptor is included for use with Tamiya speed controllers (ESC). In addition, the balance connector allows a balanced charging for reconditioning of each individual cell.

Specifications

• Capacity:1100mAh
• Voltage:6.6V( Do not zap the battery cell)
• Discharging cutoff voltage: 4.0V
• Standard charging voltage : 7.2V (Over 7.2V of Charging voltage damages the battery.)
• Maximum Charging current: 4.4A(4C rate)
• Dimensions: 70x38x20mm
• Weight: Approximately 100g.
• Type: Lithium-ion battery
• Cell layout: 2-cell in series
• Temperature range (Discharging): -10 to +50C
• Temperature range (Charging): 0 to +40C
• Temperature range (Storing):-20 to +30C
