SkyRC B6 AC Neo AC/DC Charger SK-100200

Original price was: £57.99.Current price is: £51.99.Save £6.00

Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.

Description

Description

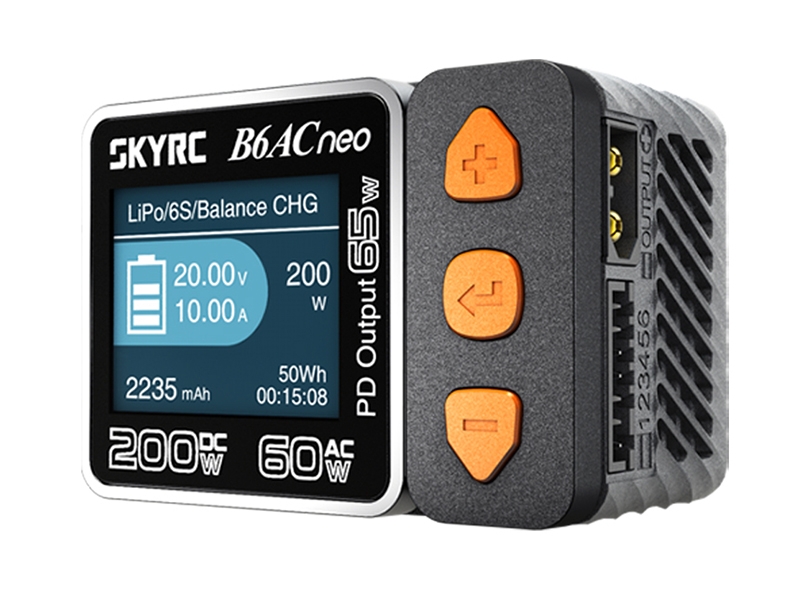

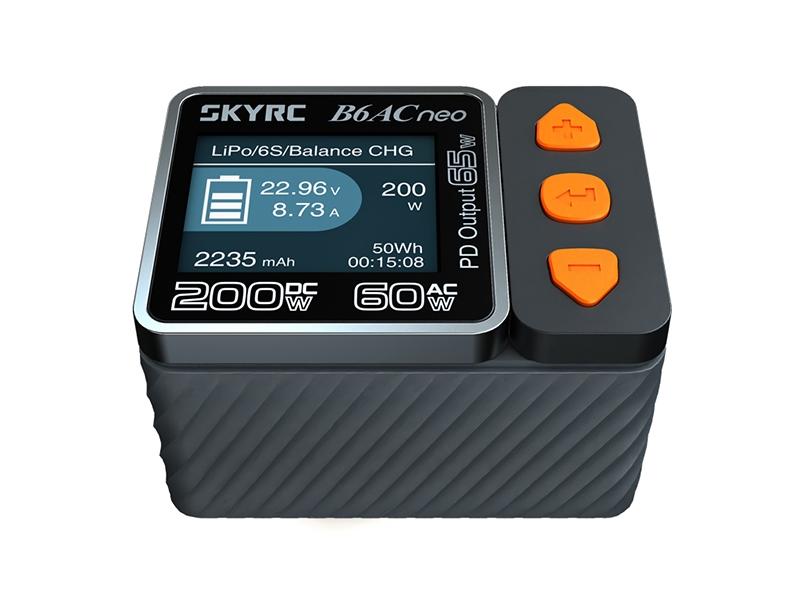

SkyRC B6 AC Neo AC/DC Charger SK-100200

Introducing the new SKY RC B6ACneo AC/DC Charger from SKY RC.

Beauty outside. Beast inside. Performance Punch. Packed with Style.

Be Legendary: Innovation Evolved, Smaller than a Credit Card
Meet B6ACneo by SkyRC, a compact evolution of the iconic iMax B6AC chargers since 2006.
Stunningly smaller than a credit card, B6ACneo sports a sleek design with vibrant colors, and boasts an impressive 200W charging capacity with DC power and 60W with AC, surpassing the original B6AC’s 50W AC limit.
B6ACneo reduces charging time, maximizing your time in RC action.

Tiny & Shiny.  Amazing Power of 200W.
Don’t let its downsized footprint deceive you – this charger packs a punch!
When powered by DC, the tiny and shiny powerhouse delivers a remarkable charging power of up to 200W with a maximum current of 10A. Even when connected to the AC power, it effortlessly fills up to 60W.
With its tiny footprint, the B6ACneo exceeds expectations in every way!
Experience the ultimate combination of power and portability with the B6ACneo.
What more could you ask for from such a compact powerhouse?

XT60 & Universal AC input
SkyRC B6ACneo features an XT60 interface as its DC input and Universal 100-240V AC input, ensuring greater flexibility and convenience in charging your RC batteries.

Discharging Multiplied by Balance Port
The built-in balance port enables B6ACneo to discharge faster, allowing it to discharge at up to 19W when used in conjunction with the main port. In contrast, the discharge rate when using the main port alone is limited to just 5W.

Versatile 2-in-1: Check Batteries Easily
When the balance port is connected, B6ACneo is a versatile battery checker capable of measuring cell voltage and the balance state of LiPo, LiHV, LiFe, and LiIon battery. The overall voltage and individual cell’s voltage of will be displayed on the fly to help tell whether the battery is charged or discharged and whether it requires balancing.
It will work as a safeguard for batteries, as, for example, LiPo battery is renowned for their high energy density and lightweight properties. Proper care and monitoring are crucial to ensure their safety and longevity.

So. Pro. So is Digital Power
B6ACneo is not only professional in charging but also can act as a digital power supply.
After clicks on the menu, B6ACneo is ready for your application, offering an optimal voltage of 2-27V with 0.1V increment, adjustable 1-10A current.
Short circuit, Overload, and Reverse polarity protection are all included!

Specifications

Size and Weight

  • Shell material: PC-ABS V0
  • Size: 70.6*50.6*46mm
  • Weight: 150g

Display

  • Display Type: TN
  • Size: 1.77 inch
  • Panel Active Area: 28.03*35.04mm
  • Resolution: 128×160 Pixel
  • Number of Colors: 262K

Power

  • AC Input Voltage: 100V~240V 50/60Hz
  • DC Input Voltage: 10-30.0V

Charger power:

  • DC:200W
  • AC:60W
  • QC3.0 / PD: 5V⎓3A, 9V⎓3A, 12V⎓3A, 20V⎓3.25A Max. 65W

Discharge power:

  • 19W based on 6S(4.2V/S)

Battery

  • Battery Types/Cells:
  • LiPo/LiFe/LiIon/LiHV: 1-6cells
  • NiMH/NiCd: 1-15cells
  • Pb: 3S/6S

Charge and Discharge
Charge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb:0.2-10.0A

Discharge current

LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb:0.1-2.0A

Balance current

LiPo/LiFe/LiIon/LiHV: Max. 500mA

Operation
LiPo/LiFe/LiIon/LiHV: Balance CHG, Charge, Storage, Discharge
NiMH/NiCd: Charge, Re-Peak, CYCLE_C_D, CYCLE_D_C, Discharge
Pb: Normal, AGM Charge, Cold Charge, Discharge
