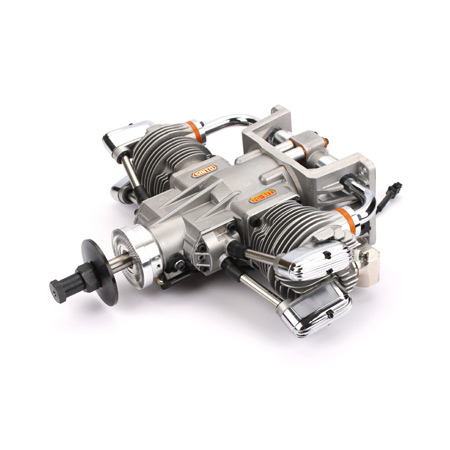

Saito FG-57T twin petrol engine

Overview

Product Description

The FG-57TS is an updated version of the FG-57T. It has been designed as an alternative yet practical solution to the large singles normally used in 50cc class scale and aerobatic aeroplanes. Being a Saito twin it offers excellent throttle response and lower levels of vibration.

The FG-57TS comes with the standard equipment of Heat Sink, Stand-off mounts (35mm x 4) and lightweight aluminium prop washer. The twin exhaust sound gives a lovely scale-like mellow sound to the exhaust note. Fuel consumption is also very low at just 35cc per minute, making this a cheap engine to run over the long term.

Specifications

Bore:ø36.0mm x 2
Stroke:28.0mm x 2
Stroke Volume:57.0cc
Approximate HP:4.5
Weight (Approx):Body – 2,090g | Muffler – 90g | Ignition System – 170g | Mount – 80g(20g x 4)
Practical Speed:Approx 1,500 ~ 7,000RPM (Recommended highest speed on ground: 6,000 ~ 7,000RPM
Recommended Prop:D21 ~ 23 x P10 ~ 11″
Fuel:Gasoline : Oil = 20:1 (Volume Ratio)
Fuel Flow:Approx. 35cc/minute (at full throttle approx 6,500RPM). Fuel flow varies depending upon propeller load. More fuel flow with a larger load and less with smaller load (in actual flight, fuel flow somewhat increases).
Static Thrust:9 ~ 11Kg (Depending on Prop)

Specification

Specification

Fuel Type

Petrol

Brand

Saito
