£279.95

In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received

EAN: 9010189120070 SKU: DLE20RA Category:

Description

Description

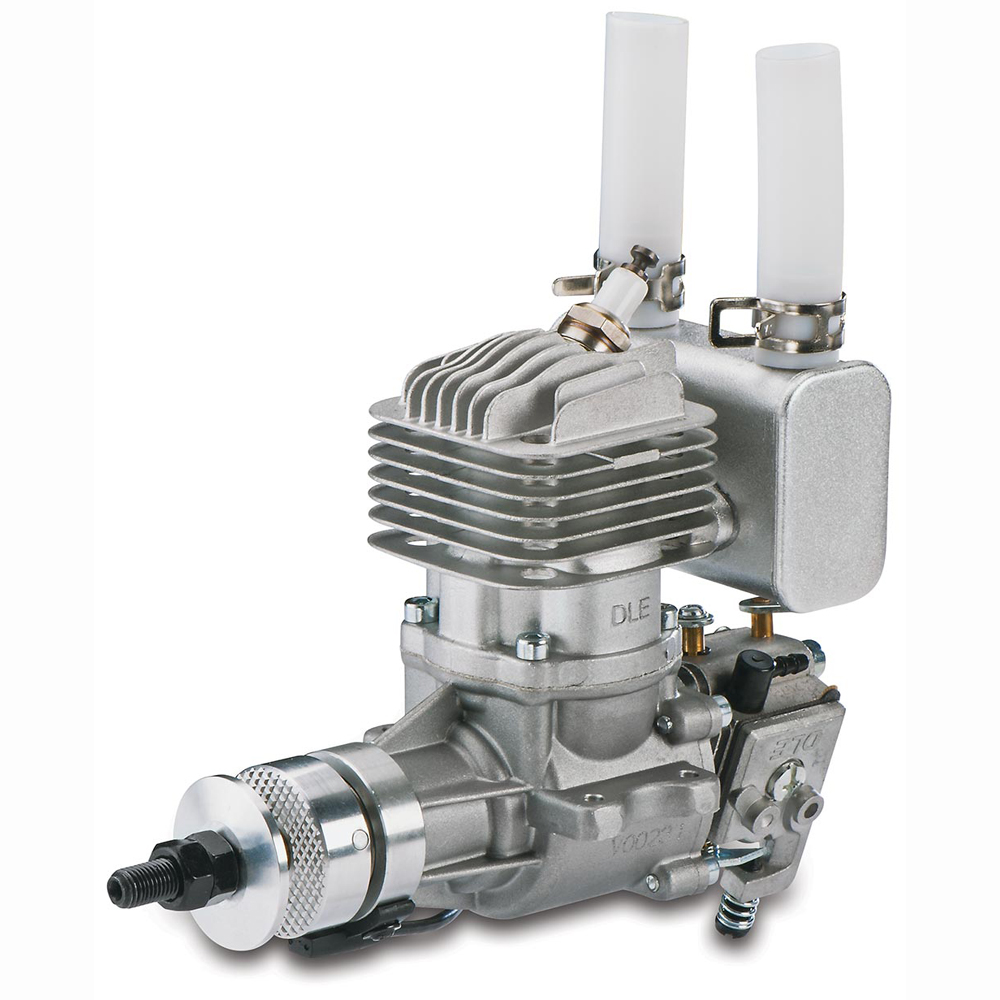

DLE 20RA Two-Stroke Petrol Engine DLE-20RA 20cc

GLOW SIZE – REAR-EXHAUST INSTALLATION EASE!
The DLE-20RA has the features you’re looking for. Rear-exhaust design makes it an easy install even in cramped cowls – and a beam mount makes installation easy. A rear pumper carb offers consistently superior performance, as well as simple installation and adjustments.

A generous package of “extras” and electronic ignition for starting ease and top performance make the DLE-20RA another attractive alternative to glow… and a solid buy for value and performance.

IMPORTANT NOTICE: We highly recommend using NGK-CM6 spark plugs with this engine for optimum performance.

PRODUCT FEATURES

  • Light, efficient design for a high power-to-weight ratio
  • Lightweight piston for fast acceleration, excellent compression and low vibration
  • CNC-machined parts for high performance and long life
  • Sealed crankshaft bearings
  • Perfect for use with tuned pipes
  • Custom pumper carb
  • Updated muffler for excellent aeration and power

SPECIFICATIONS:

Displacement:20.0 cc (1.22 cu in)
Bore:1.26 in (32 mm)
Stroke:0.98 in (25 mm)
Weight:1.92 lb (870 g)
RPM Range:1,700-9,000
Output:2.5 hp @ 9,000 rpm
Requires:Unleaded Petrol (Gasoline), 2-cycle oil, ignition battery & propeller
Includes:Electronic Ignition Module, Muffler, Spark Plug, Instruction Manual, Gasket, Bolts, Throttle Arm Extension and Two Exhaust Extensions
Recommended Prop:14×10, 15×8, 16×6, 16×8 & 17×6

TECHNICAL DATA:

Ignition Battery:4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack (Voltage regulator required if LiPo or LiFe pack is used)
Petrol/Oil Mix:30:1
Static Thrust:13.88 lb (6.3 kg) @ 328 ft (100 m) altitude; 12.34 lb (5.6 kg) @ 5,900 ft (1800 m) altitude
Weight Breakdown:Engine: 1.46 lb (660 g) | Muffler: 2.8 oz (80 g) | Ignition Module: 4.6 oz (130 g)

DLE 20RA Two-Stroke Petrol Engine DLE-20RA 20cc

For other sized DLE Engines click here: DLE Engines

News on Aircraft clubs and restrictions click here: https://bmfa.org/

Specification

Specification

Fuel Type

Petrol

Brand

DLE Engines
