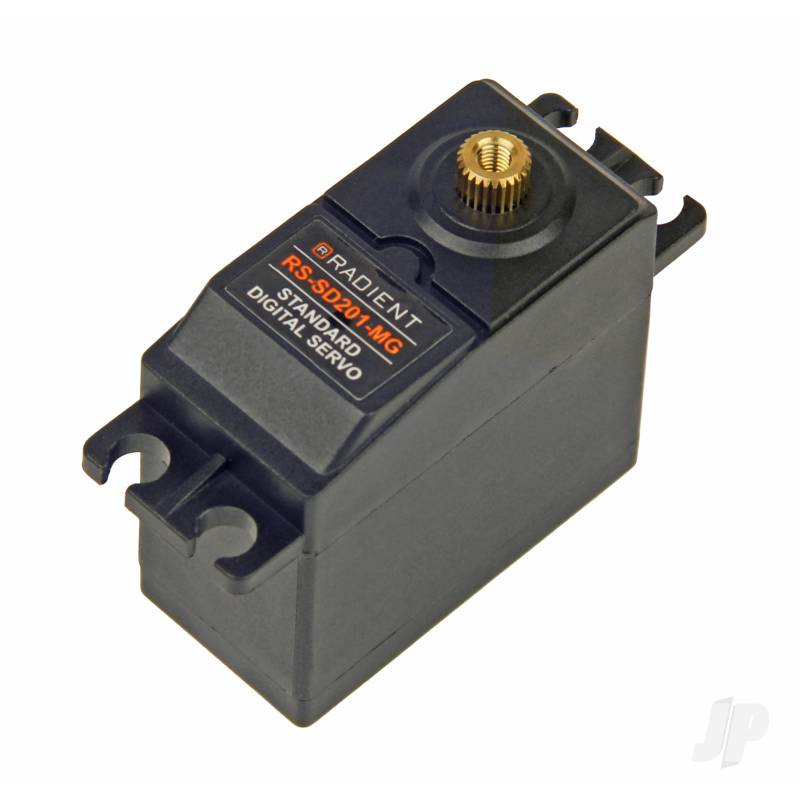

Radient RS-SD201-MG Standard 10kg Digital HV MG Servo

Key Features

O-ring seals.

Water resistant.

3P iron core motor.

Metal gears.

25 tooth spline.

High voltage.

Dual ball raced output shaft.

Product Description

Offering the size, power, torque and speed to suit a variety of applications Radient servos are rapidly building a reputation for reliability that compliments their outstanding value. With its dual ball raced output shaft, metal gears, high voltage capability plus impressive torque and speed, the RS-SD201-MG is a perfect example.

Specification:

Weight (g): 56

Speed at 6.0V (secs / 60deg): 0.12

Speed at 7.4V (secs / 60deg): 0.10

Torque at 6.0V (kg.cm): 9.0

Torque at 7.4V (secs / 60deg): 10

Size (mm): 40.8 x 20.1 x 38.0

Voltage (V): 6.0 / 7.4

Servo Technical Specifications

Weights & Dimensions

Weight 56g 1.98oz

Shipping Weight 0.08kg 0.17lbs

Product Height 38mm 1.50in

Product Width 20mm 0.79in

Product Length 41mm 1.61in

Servo Size Standard

Age Recommendation 14+
