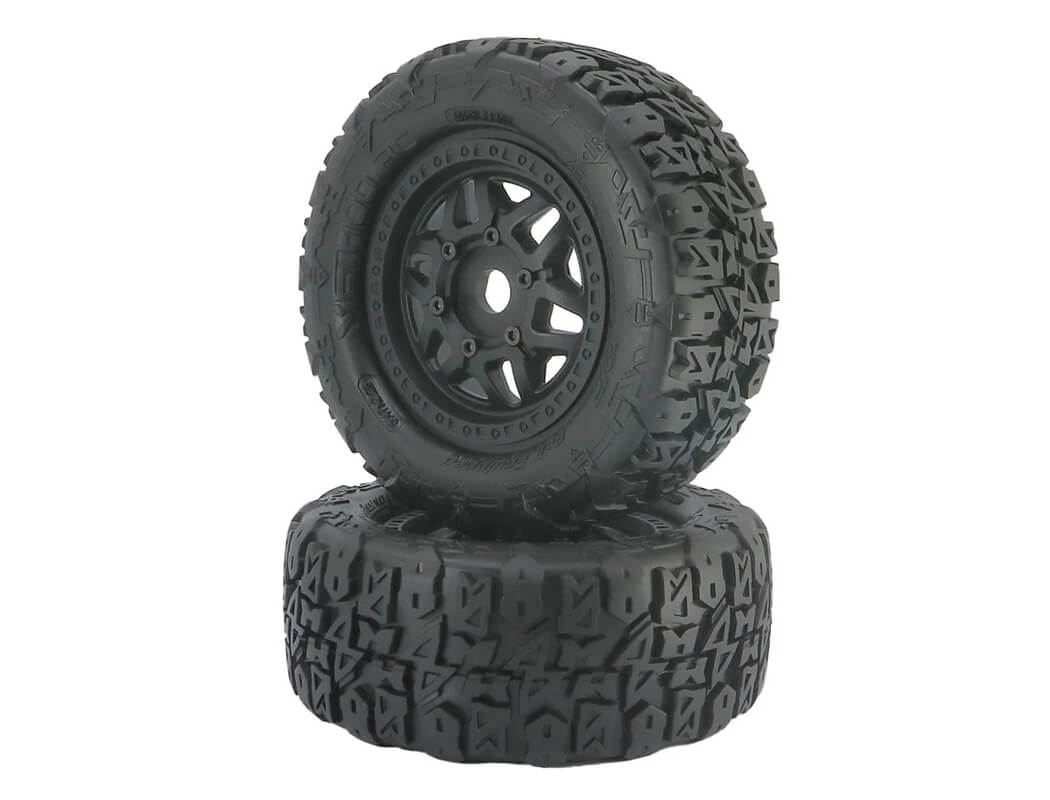

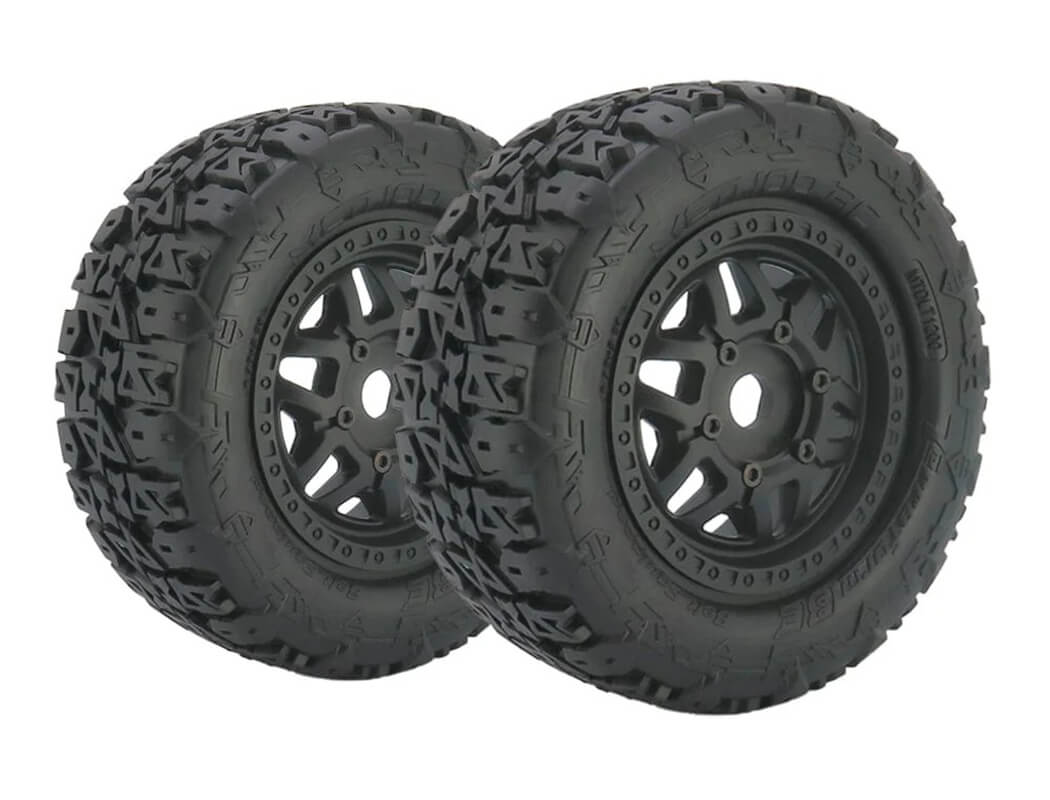

METHOD TERRAFORM BELTED SC TYRES ON SWITCH RIMS 1/7, 1/8 MTD1200V2

Description

METHOD TERRAFORM BELTED SC TYRES ON SWITCH RIMS 1/7, 1/8 MTD1200V2

Terraform BE Tyre Features

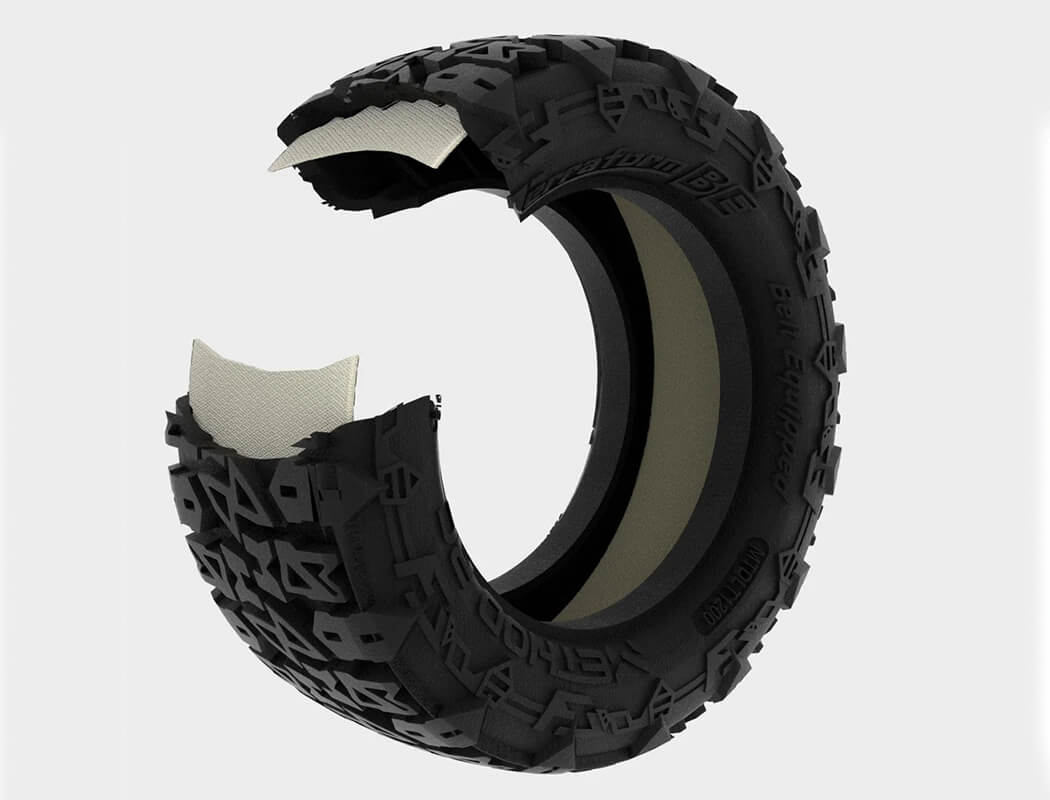

Hand Laid Belt-Equipped (BE)

• Nearly eliminates tyre expansion creating a stable/consistent platform at high speeds.
• Less tyre expansion greatly reduces the “gyro” effect reducing the overall load on the servo, axles, plastics and hub bearings.

Tread Design

• Unique tread detail throughout provides a neutral/all-around performance on an array of surfaces. Aggressive enough for dirt yet poised to tackle the harsh bite of concrete and asphalt alike, the Terraform BE packs a powerful passion for your bashing needs.
• Generous tread depth for long wear and the ability to easily clear debris.

Rubber Compound

• Relentlessly tested through a variety of platforms, the Terraform’s BE rubber compound lends itself well to a middle ground of performance and a long wearing compound. We think it’s tuned just right for the basher in mind.

Fits

• Traxxas UDR. (Adaptor needed)

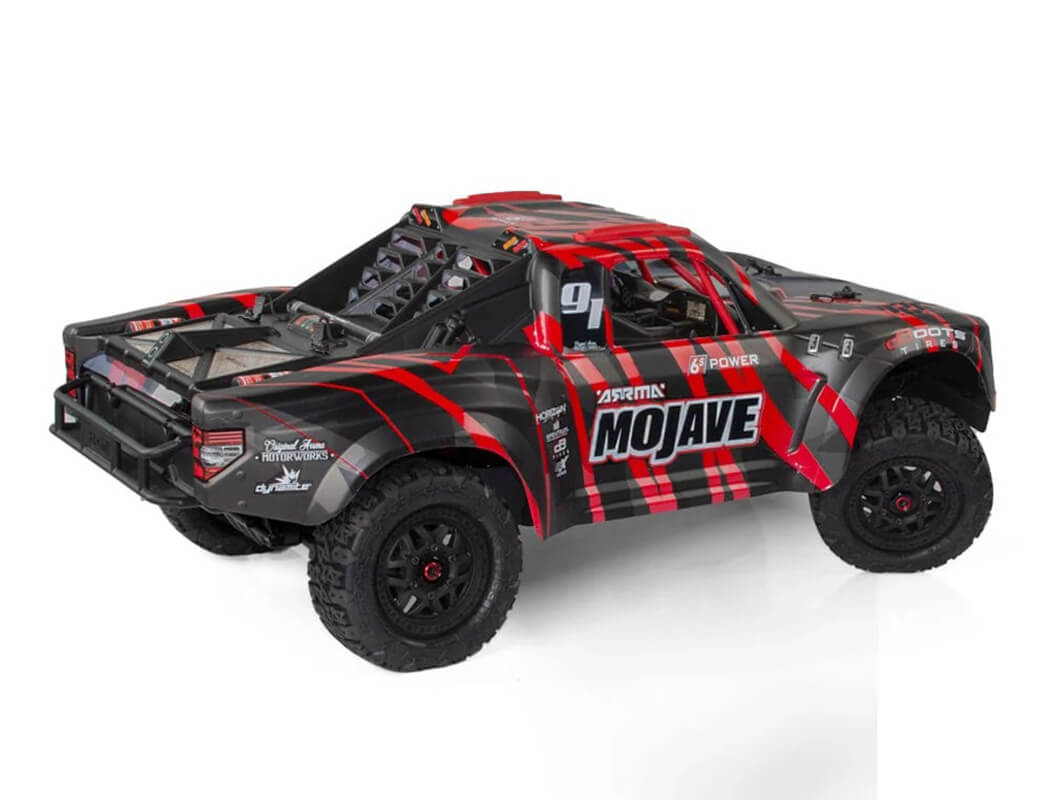

• Arrma Mojave. (Uses included adaptor)

Array Wheel Features

• Injection Molded One Piece Design
• 17mm Hex Size

Tyre Specifications

Tyre Diameter: 5.47″ (13.98cm)
Tyre Width: 2.28″ (5.79cm)
Total weight of wheel and tyre (1 piece): 212 grams

Wheel Specifications

Hex Size: 17mm
Bead Diameter: 3.3″ (83mm)
Width: 1.67″ (42.5mm)
Center Bore: 0.48″ (12.2mm)
Back Spacing: 1.14″ (29mm)
Front Spacing: 0.53″ (13.5mm)
Offset: +0.30″ (+7.75mm)
Total weight of wheel and tyre (1 piece): 212 grams

Hex Specifications

Hex Size: 17mm
Bolt Pattern: 6x32mm

What’s Included

• 2 x Terraform Belted Tyres
• 2 x Switch Wheel
• 2 x Foam Insert
• 2 x Stock Injection Molded 17mm Hex
