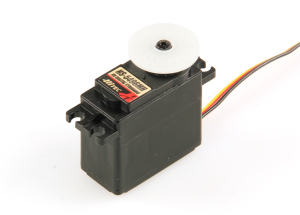

HS5496MH DIGITAL HV HIGH TORQUE METAL GEARS

£28.35

Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.

EAN: 669962354967 SKU: 2217600 Category:

Description

Description

  • 6.0v to 7.4v

  • Motor Type – 3 Pole Ferrite

  • Bearing Type – Top Ball Bearing

  • Speed (6.0V/7.4V) – 017 / 0.15 sec @ 60 deg.

  • Torque kg./cm. (6.0V/7.4V) – 6.0 / 7.2

  • Size in Millimetres – 40 x 20 x 38

  • Weight grams – 52

  • Gears – Metal

Digital Performance at an Analog Price

At Hitec, we believe in developing the highest quality servos in the market at an affordable price. That philosophy stands true with the economical HS-5496MH metal gear digital sport servo. Based on the popular HS-5485HB, the HS-5496MH is the perfect match for match for sport airplanes up to 25% scale as well as sport cars and trucks. With 7.4 volt, 2-cell LiPo battery capability, The HS-5496MH delivers the power you need at a price you can feel good about! Trust your hobby to Hitec.

Programmable Features Include:

– Dead Band Width
– Direction of Rotation
– Speed of Rotation (slower)
– End Points
– Neutral Points
– Fail Safe On/Off
– Fail Safe Point

Specifications



Motor Type: 3 Pole Ferrite
Bearing Type: Top Ball Bearing
Speed (6.0V/7.4V): 0.17 / 0.15 Second
Torque oz./in. (6.0V/7.4V): 83 / 100 oz./in.
Torque kg./cm. (6.0V/7.4V): 6.0 / 7.2 kg./cm.
Size in Inches: 1.57 x 0.78 x 1.50 in.
Size in Millimeters: 40 x 20 x 38 mm
Weight oz.: 1.59 oz.
Weight g.: 52 g.

HS-5496MH Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.17 ~ 0.15
Maximum Torque Range oz. / in. 89 ~ 104
Maximum Torque Range kg. / cm. 6.4 ~ 7.5
Current Draw at Idle 12 mA
No Load Operating Current Draw 190 mA
Stall Current Draw 1,400 mA
Dead Band Width 4 µs
Physical Specifications
Dimensions (Inches) 1.57 x 0.78 x 1.49
Dimensions (Metric) 39.8 x 19.8 x 38.0
Weight (Ounces) 1.84
Weight (Gram) 52.0
Circuit Type G1 Programable Digital
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40

Specification

Specification

Servo Power

3.0kg to 7.9kg

Servo Voltage

Servo 6v, Servo 7.4v

Servo Operation

Digital Servo

Manufacturer

Hi Tec

Gear Material

Metal Gear

Servo Size

Standard
