Hobbywing XERUN XR10 JUSTOCK G3S HW30112005

Original price was: £63.99.Current price is: £57.59.Save £6.40

Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.

Description

Description

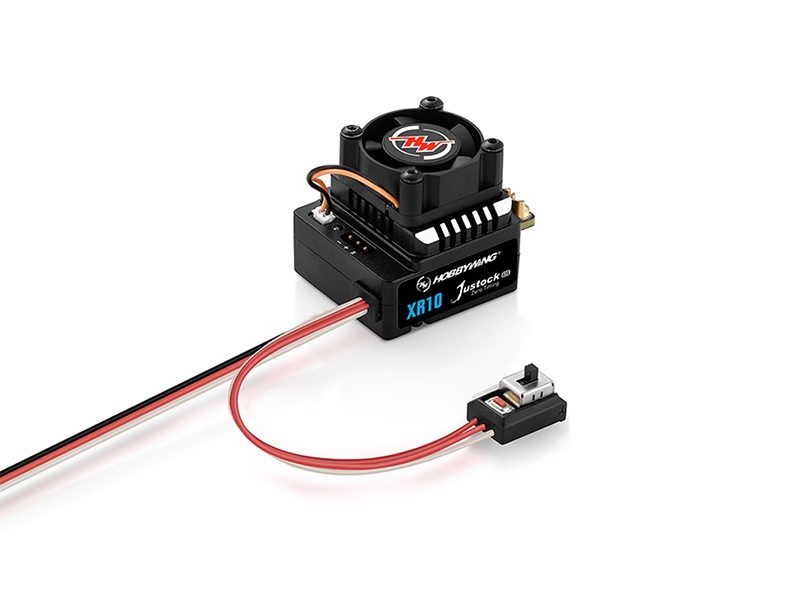

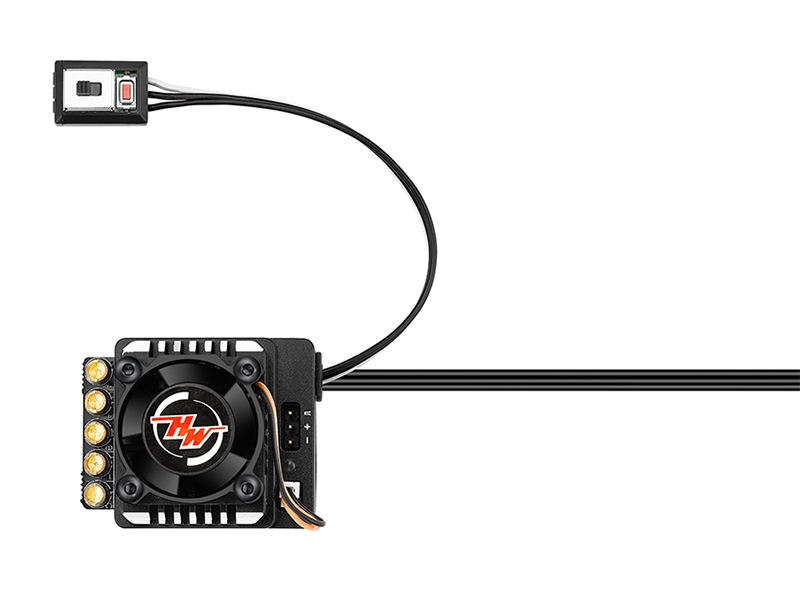

Hobbywing XERUN XR10 JUSTOCK G3S HW30112005

The XR10 Justock G3S has precise control and powerful performance. It is suitable for 1/10th on-road and off-road zero-timing (blinky) competitions.

This speed control is not BRCA legal for 2024 Nationals in the control 17.5T or FWD class. Control products for that class are HW30112003, HW38020321, HW30408011

Fan intelligent start and stop function
When the ESC temperature is low, the fan does not activate, when the ESC temperature reaches the preset value, the fan automatically turns on.
The intelligent start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.

Freewheeling Feature
With the freewheeling function turned-on, the ESC temperature is lower, the vehicle decelerates faster when the throttle input is off, and it has better controllability around the corners.

Built-in polarity protection
One danger that all electrical systems face is a reversed polarity from the power source. This can be caused by a short circuit, or usually, accidentally reversing the terminals.

Multi RPM limit, select as needed
Supports 79RPM Limits
(10000-88000RPM)RPM limit value selection. It can be programmed through the LCD programming box or OTA module. It is simple and convenient to meet the RPM limit requirements of various competitions in the world.

Built-in capacitor module, optimized layout
The built-in capacitor module eliminates the need for external capacitors and unwanted space.

Built in BEC
The ESC has a built-in BEC which can support a maximum output current of up to 8A. The output voltage at either 6V or 7.4V. This will ensure constant power supplied to today’s high-torque servos in the market.

Built-in data logging function
The ESC has a built-in data recording function making it easy to obtain the operating status.
The data includes;

Minimum voltage
Maximum ESC temperature
Maximum current
Maximum motor temperature
Maximum RPM

Wireless connection for data recording and analysis
After the ESC is connected to the OTA Bluetooth module, connect to the ESC through the HW Link mobile app and turn on the real-time data recording function. You can view data such as throttle, voltage, current, temperature, speed, etc. in real time. In addition, OTA can record the above data using HW Link. Easy to implement data analysis functions. Note: Due to the Bluetooth transmission distance, the effective distance is about 5m!

Parameters optimized

It is tailored and are more in line with competition needs.
Type

Scale – 1/10th
Brushed/Brushless – BL
Sensored/Sensorless – SD
Waterproof – No
Specifications

Cont./Peak Current – 60A/380A
Input Voltage – 2S LiPo
BEC Output – 6V/7.4V @4A
Wires & Connectors

Input Wires – Black-14AWG-200mm*1 Red-14AWG-200mm*1
Output Wires – Black-14AWG-200mm*1 Black-14AWG-200mm*1 Black-14AWG-200mm*1
Input Connectors – No
Output Connectors – No
Fan

Size – 25x25x10mm
Output Wires – 5-7.4V
Input Connectors – Powered by BEC
Data Recording

Extreme Value – Not Supported
Real-Time Date – Not Supported
Historical data (Graph) – Not Supported
ESC Programing via

SET Button on ESC – Not Supported
LED Program Box – Not Supported
LCD Program Box – Supported
WiFi Module – Supported
OTA Programmer – Supported
Programming Port – Separate
Firmware

Firmware Upgrade – Supported
Size & Weight

Size – 40.9×33.9×32.1mm
Weight – 75.4g(w/Wires)
Applications

Applications – SL BL Motors / SD BL Motors

Vehicles – 1/10th,1/12th On-road and Off-road club competition and normal training
KV Rating/T Count – ≥10.5T 3650 Motor

Specification

Specification

Brand

HobbyWing

Distributor

Schumacher Racing Cars

TopsysDatabase

Topsys

LiPo Cells

2S

Motor Type

Brushless
