Hobbywing QUICRUN Combo QR16BL30 and 2435SL 6500kV G3 Motor HW38030001

Original price was: £51.99.Current price is: £46.79.Save £5.20

In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received

Description

Description

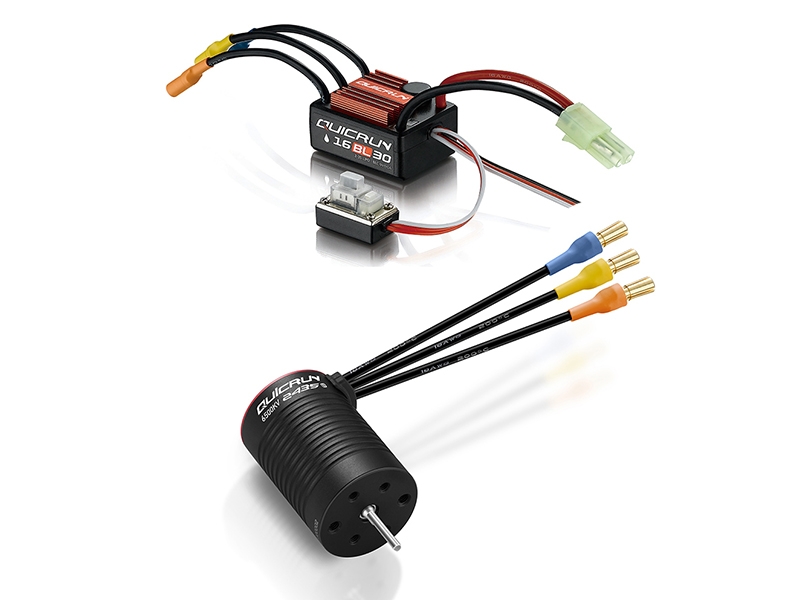

Hobbywing QUICRUN Combo QR16BL30 and 2435SL 6500kV G3 Motor HW38030001

Benefits from the water-proof and dust-proof design, the QuicRun-WP-16BL30 speedo is fit for all weather races. The speedo owns these outstanding features as listed below. Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment. 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks. Multiple protections like Low voltage cut-off protection, Over-heat protection, Throttle signal loss protection and Motor lock-up protection to extend the service life. One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings. Compatible with the optional device – the portable Digital LED Program Card, especially convenient for outdoor use.

ESC Specification

  • Current – 30A/180A
  • Input – 4-9 Cells NiMH, or 2-3S Lipo
  • BEC Output – 6V/1A (Linear Mode)
  • Resistance – 0.002
  • Motor Supported – Sensorless Brushless Motor (compatible with sensored motor but
  • not in sensored operating mode)
  • Cooling Fan – No cooling fan
  • Weight – 38g
  • Size – 36(L)X28(W)X16(H)mm
  • Motor Limit – For 2S Lipo or 6 cells NiMH
  • On-road: 2435-size or smaller motor with the KV 8000
  • Off-road/Buggy/Monster: 2435-size or smaller
  • motor with the KV 5000
  • For 3S Lipo or 9 cells NiMH:
  • On-road: 2435-size or smaller motor with the
  • KV ;5500
  • Off-road/Buggy/Monster: 2435-size or smaller
  • motor with the KV 3500.
  • Car Applicable – 1:18 ; 1:16 On-road/Off-road/Buggy/Monster

Motor Information

Better performance
Compared with the same specification of products under the same load conditions, the maximum output power is 60% higher, the maximum efficiency is 5% higher, and the temperature is reduced by approximately 30 degrees.

Upgraded materials
durable 0.2mm thick silicon steel, high-strength explosion-proof rotor, 200°C high-temperature-resistant enameled wire, and first-line brand high-precision and high-quality bearings make the motor durable.

Excellent protection
The output of the motor is sealed with a silicone rubber on the housing. It is dust-proof for off-road vehicles/trucks. Users will now enjoy bashing without having to worry in harsh operating environments such as outdoor sand, stones, and dust.
Note: It is recommended to block the unused mounting holes of the motor front cover with screws.

Plug and play, flexible play
The motor output line has been welded with high-quality gold-plated plugs. Plug and play without worrying about soldering.

One “machine” with multiple functions, compatible with a wide range of models
The product is applicable to 1:16 and 1:18 vehicles, from on-road to buggy, short course truck, and monster truck.

Specification

  • Scale – 1/16th
  • Brushed/Brushless – BL
  • Sensored/Sensorless – SL
  • Pole Count – 4
  • KV Rating – 6500KV
  • LiPo – 2-3s
  • No-load Current(A) – 3.4A
  • O.D. (mm) – 24
  • Length (mm) – 36
  • Shaft Diameter (mm) – 2
  • Weight (g) – 61.2
  • Connectors – 3.5mm (Male)
  • Front Bearing – D8*D3*T4
  • Rear Bearing – D8*D3*T4
  • Applications – 1/16th, 1/18th On Road, Off Road

Specification

Specification

Brand

HobbyWing

TopsysDatabase

Topsys

Motor kV

6000kV and over

LiPo Cells

2S, 3S
