Hobbywing Ezrun Max8 G2s Esc

Original price was: £119.99.Current price is: £107.99.Save £12.00

Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.

Description

Description

Hobbywing Ezrun Max8 G2s Esc – a genuine Hobbywing product (part number HW30103205).

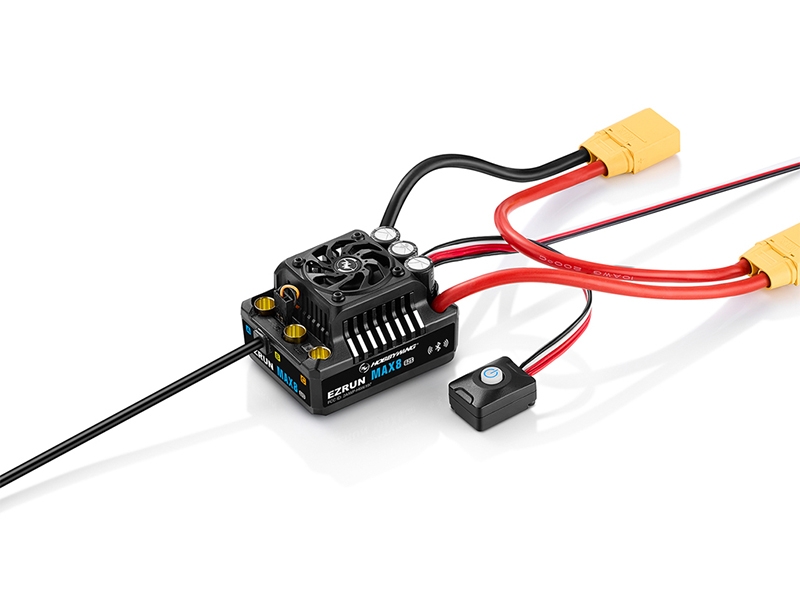

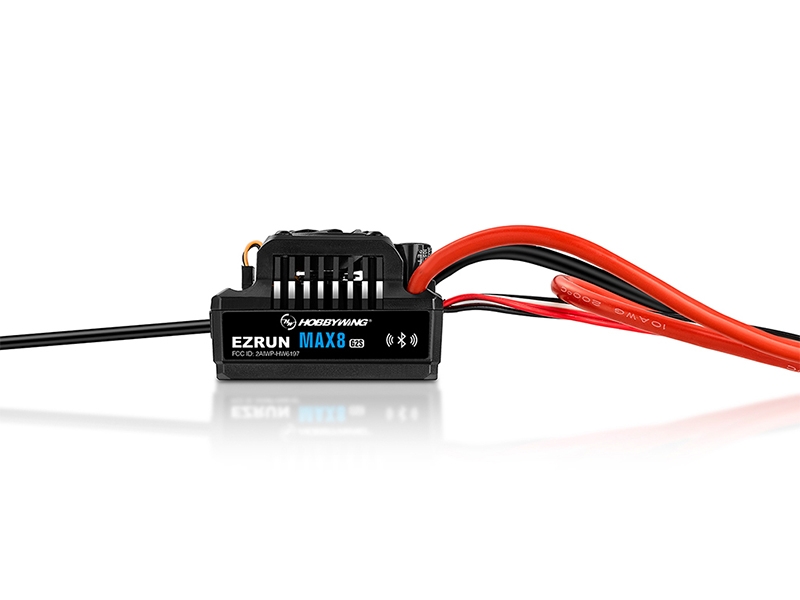

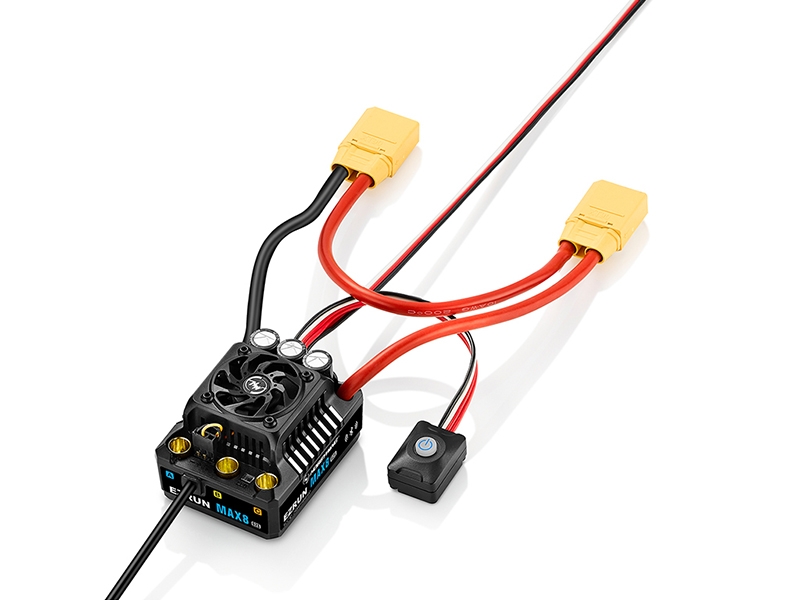

Hobbywing EZRUN MAX8 G2S ESC HW30103205

Introducing the EzRun MAX8 G2S Speed Control.

EzRun MAX8 G2S Optimised hardware, increases in stability and reliability.

Extreme output, easy to control.
The ESC has power, yet smooth and linear thro le response. This balance of power and control allows drivers to drive their vehicles at the limit comfortably.

Optimised hardware, increases in stability and reliability.
Based on the Max8 G2 ESC, the brand new G2S ESC is equipped with optimised hardware design application such as intelligent freewheeling technology. The stability and reliability of the ESC has been further
improved.

Built-in Bluetooth, directly connected to the mobile APP
The ESC has a built-in Bluetooth module. It allows you to connect to the mobile APP directly without plugging any device. It is simple and convenient to perform parameter se ings, data reading, firmware upgrades and other operations.
Note: The data includes thro le amount, voltage, current, temperature, speed, etc.

Specifications

Cont. / Peak Current: 160A/1050A
Motor Type: Sensored and sensorless
brushless motor
Lipo Cells: 3-6S Lipo
Programming Method:
iOS or Android smart phone
(installed with the HW LINK app)
Size / Weight: 60 x 48 x 40.5mm / 192g
(Included input wires&connectors)
Motor Limit: With 4S Lipo: KV 3000
With 6S Lipo: KV 2400 4278 size motor
BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 6A (Switch-mode)
Fan intelligent start and stop function
The ESC fan does not run when the ESC temperature is low; The fan automatically turns on when the ESC temperature reaches the preset value. The intelligent
start and stop function of the fan not only reduces noise, saves power, but also ensures that the ESC works in a good temperature range.
Built-in data logging function, ease of obtaining power operating status.
The ESC has a built in data rcoerding module. Store up to 10 minutes of your most recent run. Using the HW Link V2 App, you can view the data saved to the ESC. In addition, the module allows you to view Real Time Data from the ESC for bench top testing and viewing of the data outputs.
Note: Due to transmission distance of bluetooth, the e ective distance
is only about 5m!

Efficient cooling system
A frameless fan with patented technology is used. The large flow of air from the side of the fan e ectively blows the heat away from the integrated housing radiator to ensure that the ESC is always in the
optimal operating temperature.

High level of protection
The protection level reaches IP67, with excellent waterproof and dust-proof performance. It is able to cope with harsh environments, various climate conditions and has all-weather operation capabilities.
Note: The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently e ffective, and the protective performance may decrease due to daily wear and aging. Do not soak in water for a long time, otherwise the product may be damaged.

1/8th power system turbo timing technology
Turbo timing that is adjustable up to 32 degrees. Using turbo allows motor RPM to be increased through advanced ESC electronic timing.

Capacitor overheating protection
The Capacitor protection prevents damage to the power caps from overheating from overloads or extreme conditions. This protects the ESC from damage.

Super Built-in BEC
The ESC has a built-in super BEC with a maximum output current of up to 15A. The output voltage can be switched in three levels of 6V/7.4V/8.4V. Drivers are able to enjoy using high-voltage servos with this function.

Waterproof Sensor Harness
The proven Hobbywing waterproof sensor harness provides an element proof solution for sensor based systems.
Note: Supports normal adaptor sensored motors, it requires an additional adapter wires for other motors.

Best Combination: EzRun 4278/4268 SD G2

Suitable for;
On-road
Monster
Off-road
Short Course Truck

Product details

  • Brand: Hobbywing
  • Part number: HW30103205
  • Condition: New

Why buy from TJD Models?

  • Independent RC model shop in Kent, easy to reach from M25 junctions 2 and 3
  • Fast UK delivery
  • Expert advice and repairs in store
  • Not sure it fits? Call us and we’ll check the part for you

Specification

Specification

Weight 0.25 kg
Brand

HobbyWing

Distributor

Schumacher Racing Cars

TopsysDatabase

Topsys

ESC Amps

Up to 20A

LiPo Cells

3S, 4S, 5S, 6S

Motor Type

Brushless
