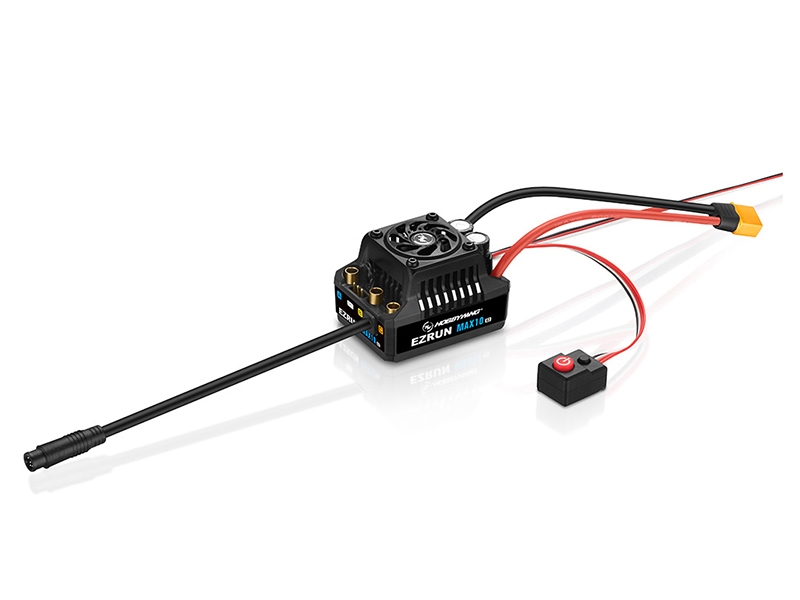

Hobbywing EZRUN MAX10 G2 – 80A ESC HW30102604

Introducing the Hobbywing EZRUN MAX10 G2 – 80A Speed Control.

Compared with the previous generation, the Max10 G2 not only has strong explosive power and stable output power, but also has excellent low-speed linearity. It can not only easily realize violent start-up, straight-line high-speed, flying slopes, but also smooth low-speed walking

It supports turbo timing adjustment up to 32 degrees . It has a significant turbo timing effect when paired with EzRun 3652/3665 G3 , and the maximum speed can be increased by about 25% .

Patented frameless fan + smart start-stop technology
The side of the frameless fan has a large flow of air,blowing heat away from the integrated case radiator quickly.
Intelligent start-stop technology, intelligent start-stop fan,when the temperature is low, the fan is not activated, reducing noise and saving power; when the temperature rises to a certain level, the fan is activated to effectively dissipate heat.

Dynamic data acquisition
As convenient as ever.
After connecting the ESC to the OTA Bluetooth module , you can check the throttle, voltage, current, temperature, speed and other data in real time through the mobile APP to know the power running status; you can also grasp the power .

IP67 protection, 24/7 operation
The new induction line interface is waterproof design, the overall protection level is IP67 , and it can operate in various climatic conditions and harsh environments. Note: This ESC also supports sensored motors with common interfaces, and you need to purchase an adapter cable to realize it.

Specifications

Type

Scale – 1/10th
Brushed/Brushless – BL
Sensored/Sensorless – SL
Waterproof – Yes
Cont./Peak Current – 80A/520A
Input Voltage – 2-3S LiPo
BEC Output – Switch Mode: 6V/7.4V,5A
Wires & Connectors

Input Wires – Red-12AWG-150mm*1 Black-12AWG-150mm*1
Output Connectors – XT60
(Note: All the wire length above is the original length not the length you see from the outside.)

Fan

Size – 25x25x10mm
Voltage Range – 5-7.4V
Powered by – BEC
ESC Programing via

SET Button on ESC – Not Supported
LED Program Box – Supported
LCD Program Box – Supported
Program Port – Independent programming port
Firmware

Firmware Upgrade – Supported
Size & Weight

Size – 53mm*39.5mm*37.2mm
Weight – 120g (including wire plug)
Applications
Motors

Sensorless brushless motor/ sensored brushless motor
Vehicles

1/10th flat road/off-road/short course
KV Rating/T Count

2S lithium battery: KV≤6000KV
3S lithium battery: KV≤4200KV 3652 size motor

Specification

Specification

Brand

HobbyWing
