10% OFF
Original price was: £20.25.£18.23Current price is: £18.23.
Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.
Description
Description
- Continuous rotation ideal for robotic applications.

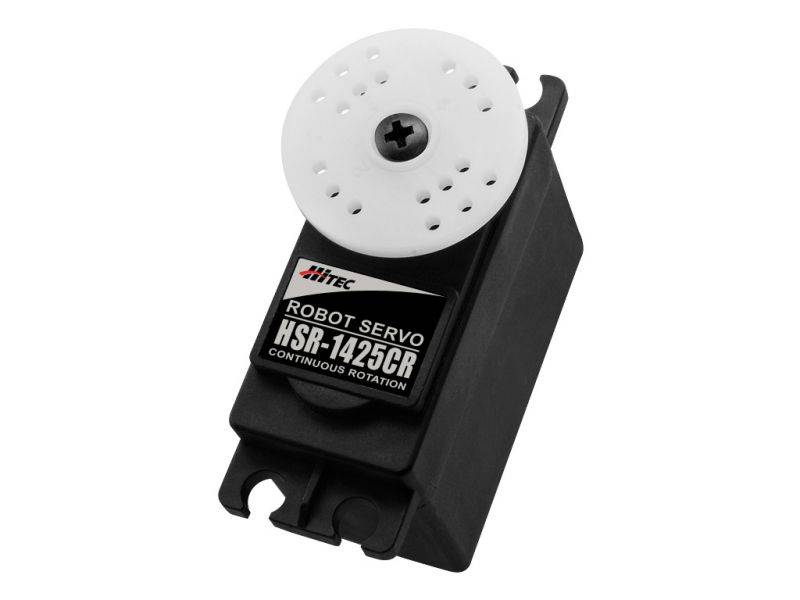

- The HSR-1425CR is the continuous rotation (non-proprtional) version of the HS-425BB
HS-1425CR Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (RPM) | 43 ~ 52 |
| Maximum Torque Range oz. / in. | 39 ~ 47 |
| Maximum Torque Range kg. / cm. | 2.8 ~ 3.4 |
| Current Draw at Idle | 8 mA |
| No Load Operating Current Draw | 150 mA |
| Stall Current Draw | 640 mA |
| Dead Band Width | 10 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.59 x 0.77 x 1.44 |
| Dimensions (Metric) | 40.6 x 19.8 x 36.6 |
| Weight (Ounces) | 1.47 |
| Weight (Gram) | 41.7 |
| Circuit Type | HT7003 Analog SMT |
| Motor Type | 3 Pole Metal Brush Ferrite |
| Gear Material | Nylon |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | Standard 24 |
| Case Material | Plastic |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 25 / 40 |
Specification
Specification
| Servo Power | 25.0kg + |
|---|---|
| Servo Voltage | Servo 6v, Servo 7.4v |
| Servo Operation | Digital Servo |
| Brand | Hi Tec |
| Gear Material | Metal Gear |
| Servo Size | Standard |
