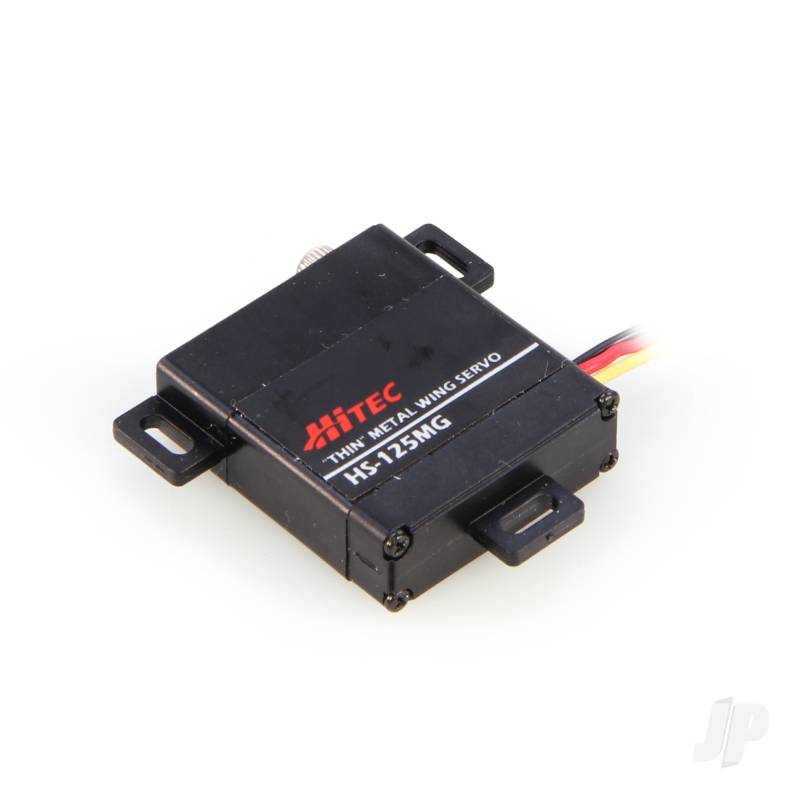

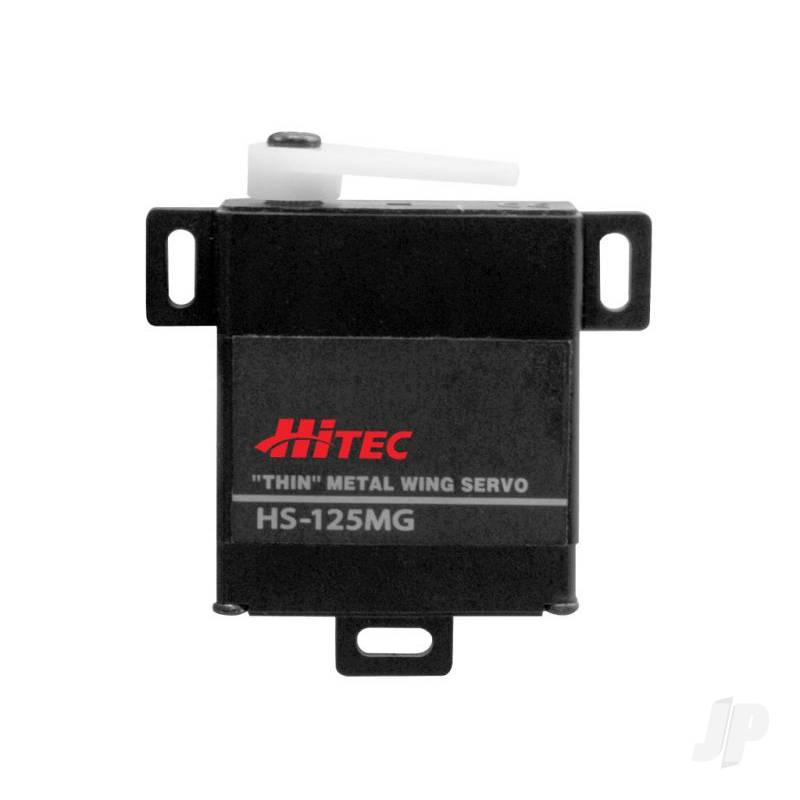

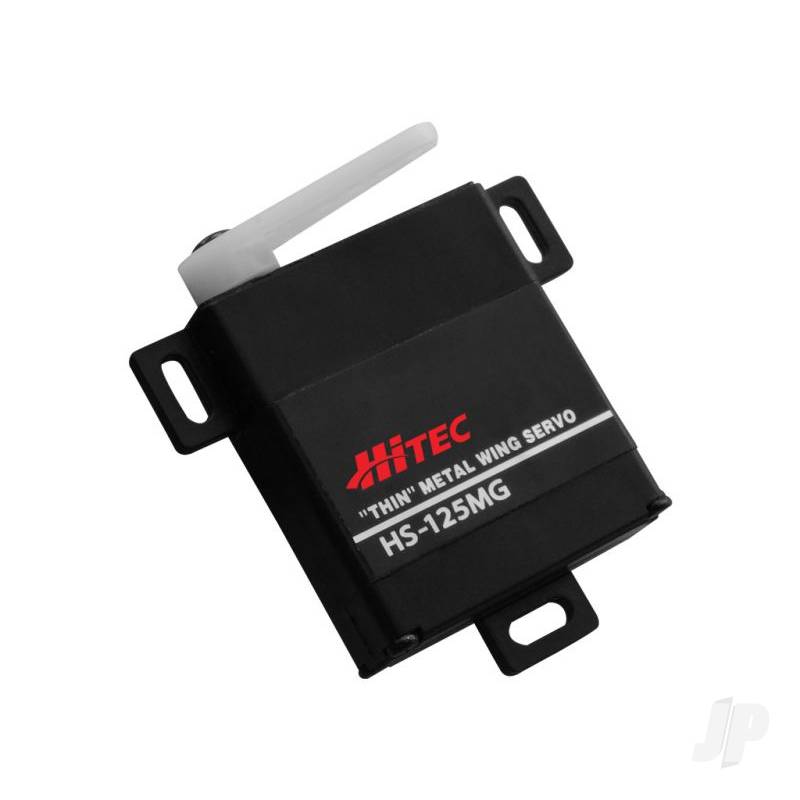

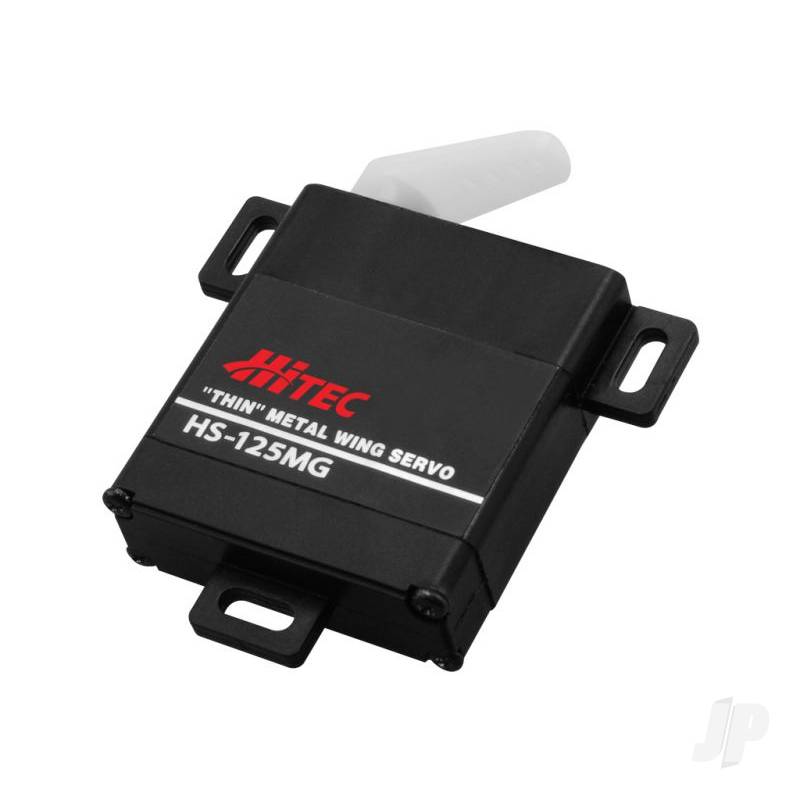

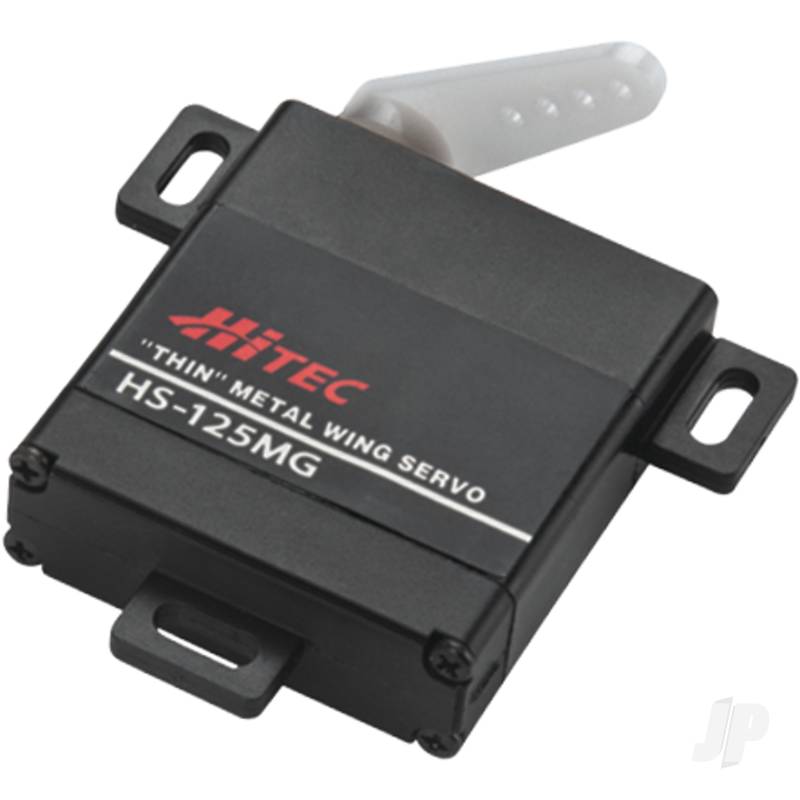

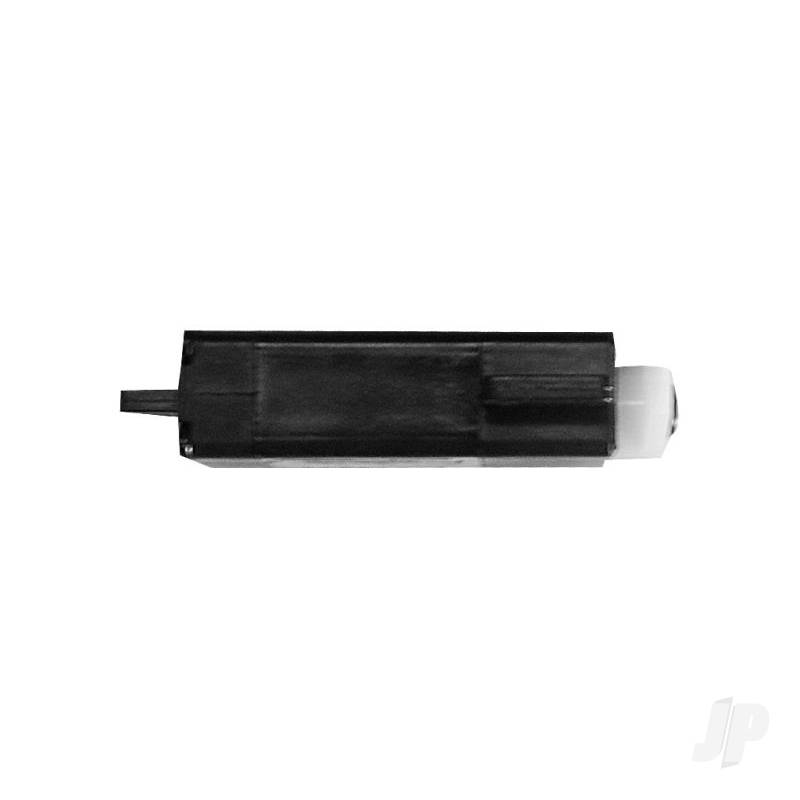

Hitec HS125MG Metal Gear Slim Wing Servo

£27.45

In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received

EAN: 669962320443 SKU: HS-125MG Categories: ,

Description

Description

HS-125MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.17 ~ 0.13
Maximum Torque Range oz. / in. 42 ~ 49
Maximum Torque Range kg. / cm. 3.0 ~ 3.5
Current Draw at Idle 8 mA
No Load Operating Current Draw 230 mA
Stall Current Draw 1,200 mA
Dead Band Width 1 µs

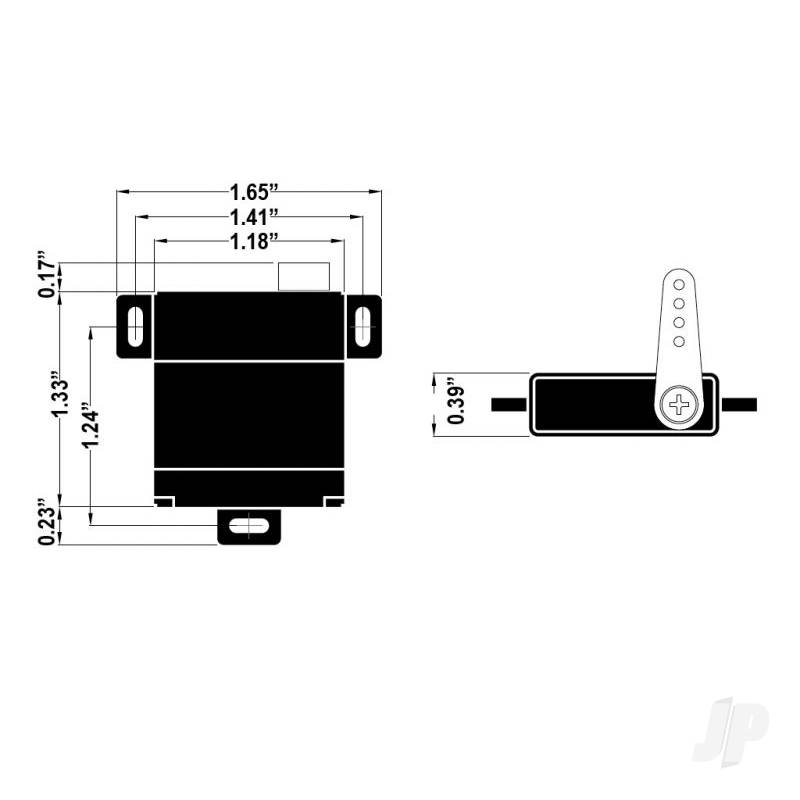

Physical Specifications
Dimensions (Inches) 1.18 x 0.39 x 1.33
Dimensions (Metric) 30.0 x 10.0 x 34.0
Weight (Ounces) 0.84
Weight (Gram) 24.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Metal
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Micro 23
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40

Specification

Specification

Servo Power

3.0kg to 7.9kg

Servo Voltage

Servo 4.8v, Servo 6v

Servo Operation

Analog Servo

Manufacturer

Hi Tec

Gear Material

Metal Gear

Servo Size

Low Profile
