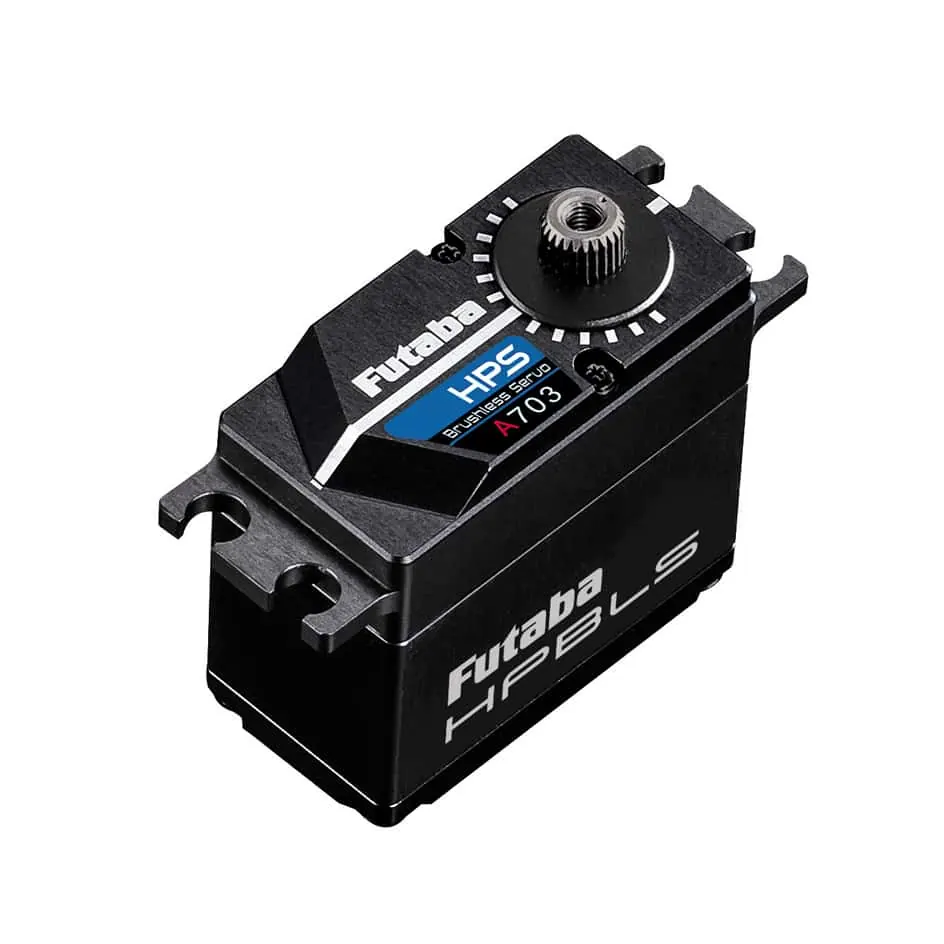

Futaba HPS-A703 Standard Brushless Servo S.Bus2 4.8V-8.4V

Description

Futaba HPS-A703 Standard Brushless Servo S.Bus2 4.8V-8.4V

FEATURES:

• For all-purpose giant scale airplanes.
• Programmable/HV Brushless Servo.
• Custom New high power Brushless Motor.
• Suggested upgrade for BLS172SV/177SV
• Programmable and compatible with S.Bus and S.Bus2 systems.
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
• Final gear material is Stainless Steel.
• Upper/middle/bottom: Aluminum Case

SPEED:

• 0.13 sec/60°at 6.6V
• 0.12 sec/60° at 7.4V

TORQUE:

• 61.0 kgf/cm at 6.6V
• 847.17.4 ozf/in at 6.6V
• 66.0 kgf/cm at 7.4V
• 916.61 ozf/in at 7.4V

SIZE:

• 40.5 mm x 21 mm x 39.4 mm
• 1.59 in x 0.83 in x 1.55 in

WEIGHT:

• 82 g
• 2.89 oz

RATED VOLTAGE:

• DC 6.0V-7.4V

OPERATING VOLTAGE:

• DC 4.8-8.4V

NO DRY BATTERY OR BEC USE
