FLYSKY FS-I4X 4CH 2.4GHZ RADIO SYSTEM W/A6 RECEIVER MODE 1

Description

FLYSKY FS-I4X 4CH 2.4GHZ RADIO SYSTEM W/A6 RECEIVER MODE 1

• With strong initiative and passive anti-interference ability and V-MIX mix control system,compatible with many models.
• According to your own needs,you can DIY expansion channel,this item can be expaned to 10CH.
• Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 140 independent channels.
• This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission
• Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
• This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
• AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
• AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.

SPECIFICATIONS (TRAMSMITTER)

Mode (optional): Mode 1 (Right Hand Throttle)
Band Range: 2.4055-2.475GHz
Band Amount: 140
Channel: 4-10CH
Model Type: RC Airplane/Glider/Helicopter
RF Power: <20dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFHDS
Modulation Type: GFSK
Stick Resolution: 1024
Low Voltage Warning: <4.2V
DSC Port: PS2 PPM
Chargeable: No
Antenna Length: 26mm *2
Weight: 335g
Power: 6V DC 1.5AA*4(Not included)
Display: LED Indicators
Size: 174*89*190mm
Colour: Black
Certificate: CE0678, FCC

SPECIFICATION OF RECEIVER

Channels: 6
Model Type: Fixed-Wing/Glider/ Helicopter
RF Range: 2.4055-2.475GHz
RF Channel: 140
RF Receiver Sensitivity: -105dBm
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A
Modulation Type: GFSK
Power: 4.0-6.5V DC
Antenna Length: 26mm
Weight: 13g
Size: 45*23*9mm
i-BUS Port: No
Data Acquisition Port: No
Colour: Grey (Transparent)
Certificate: CE0678, FCC

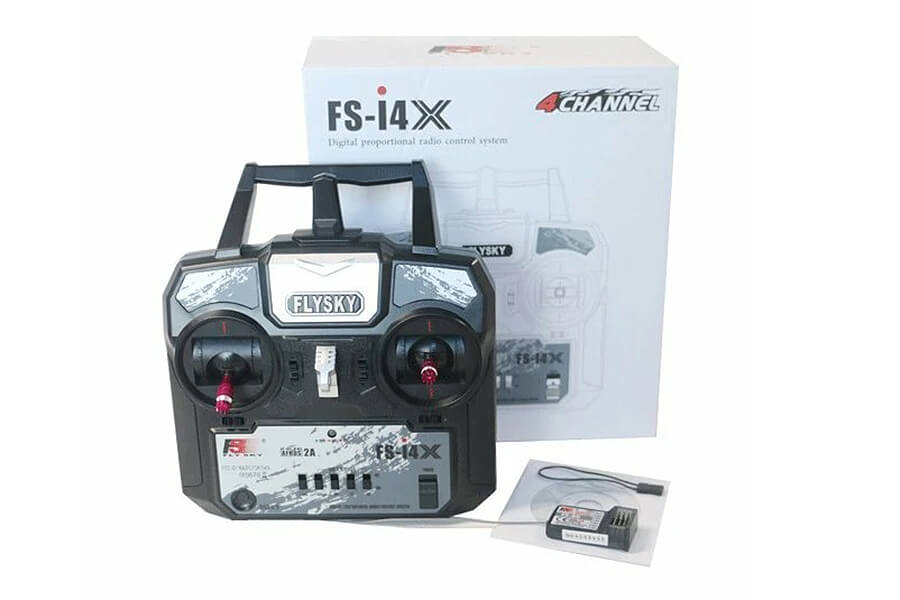

WHAT’S INCLUDED

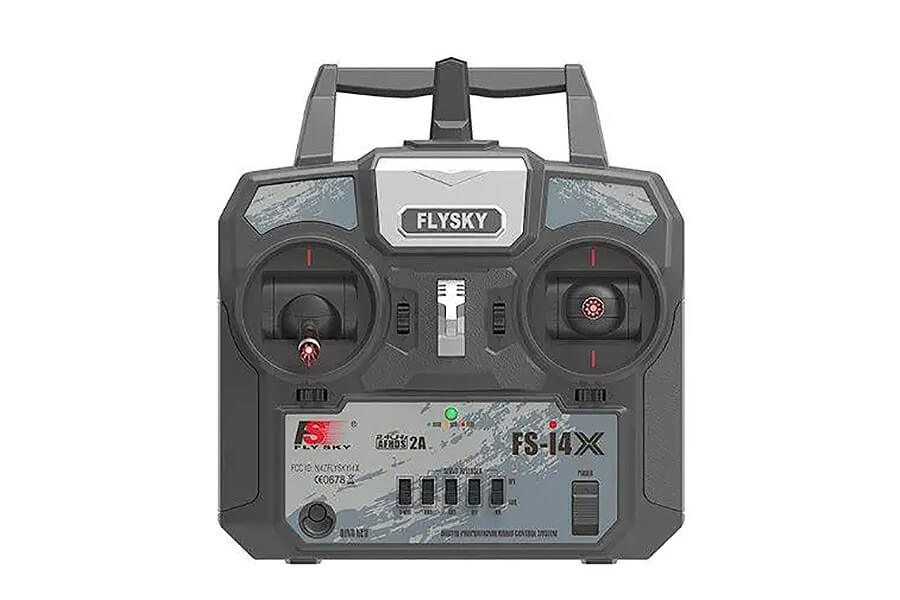

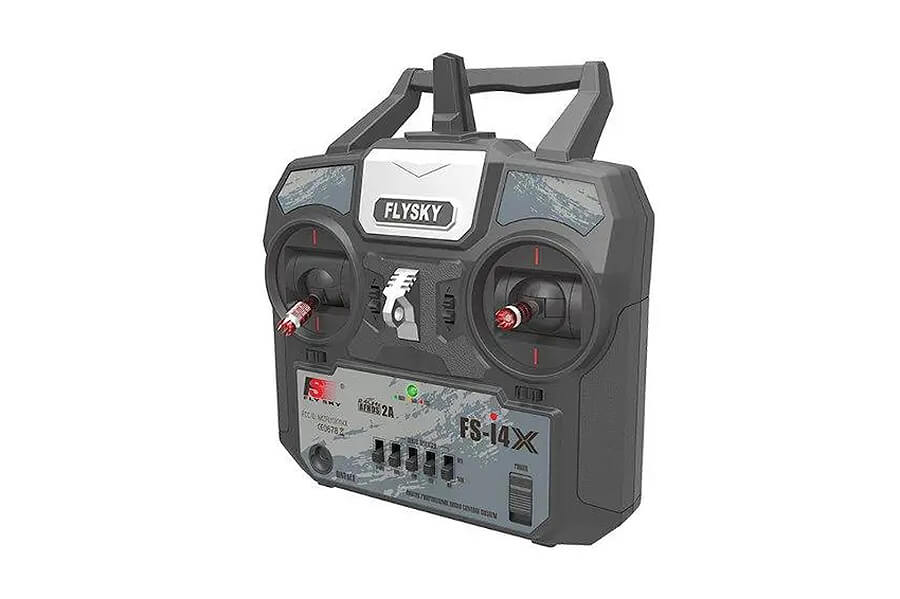

• 1x Flysky FS-i4X Transmitter

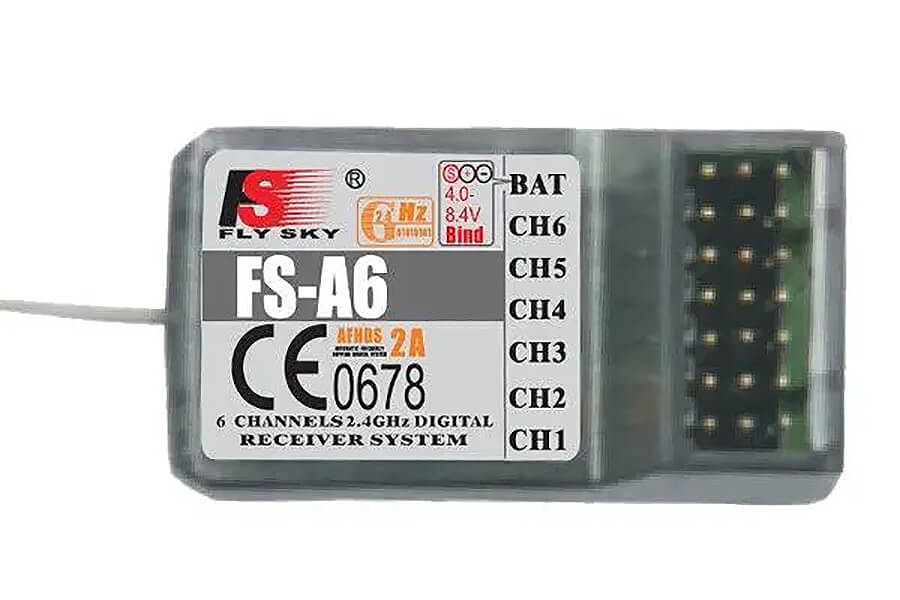

• 1x Flysky FS-A6 Receiver
