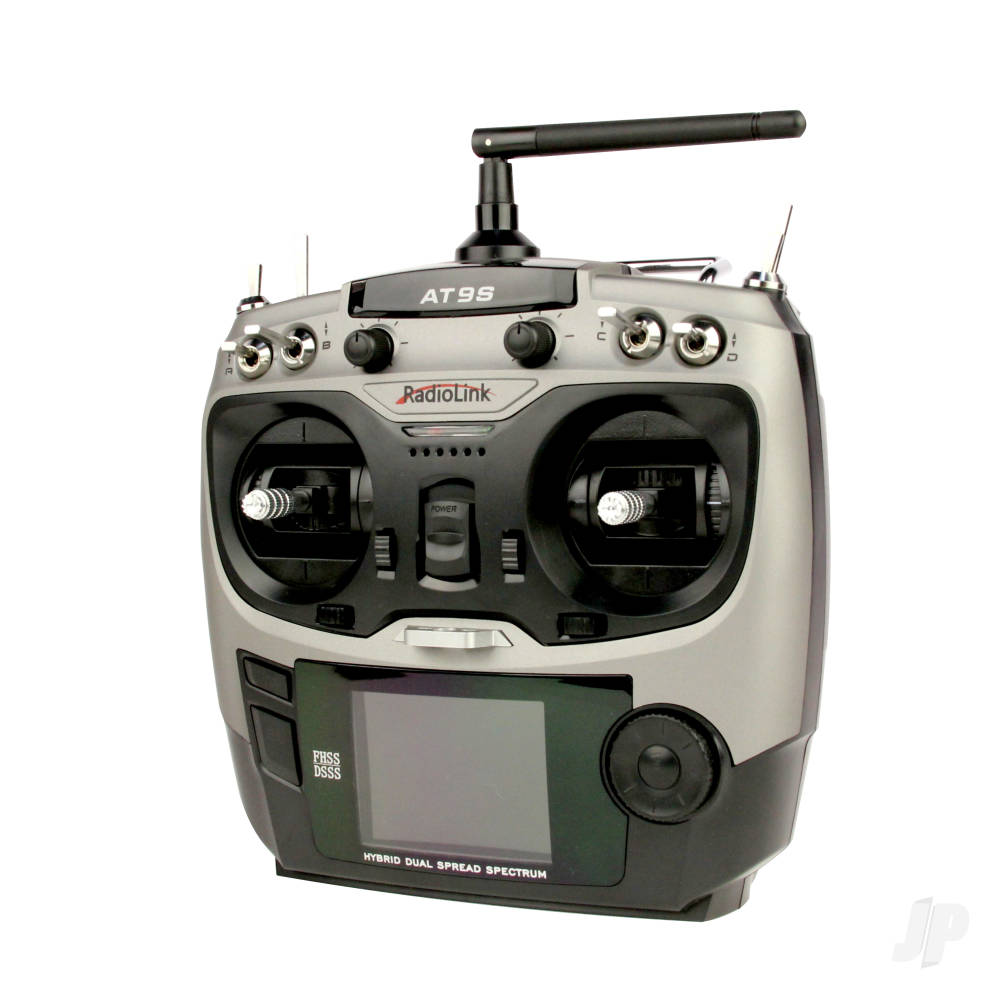

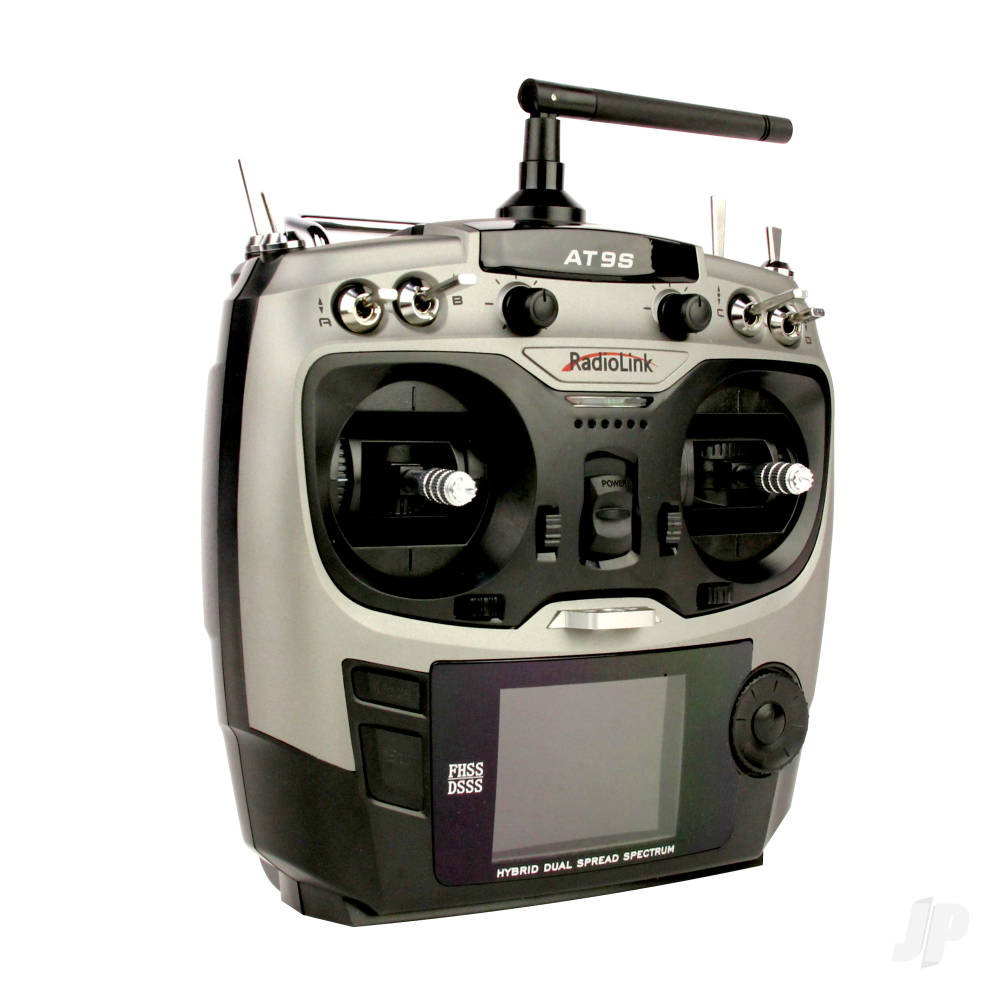

Radiolink AT9S 2.4GHz 10-Channel Transmitter with Receiver (Silver)

Description

Radiolink AT9S 2.4GHz

Key Features
Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
Modulation mode: QPSK
Channel bandwidth: 5.0MHz & 250Kps
Spread spectrum: DSSS & FHSS
Adjacent channel rejection: 28dbm
Transmitter power:<100mW (20dbm)
Operating current: 90mA @ 12v
Operating voltage: 7.4v – 15.0v
Control distance: more the 900 meters ground, 3400 meters air (the actual control distance depends on flying environment)
Channels: 10 channels, 5-10 channels are customised
Compatible models: include 120 degree and 90 degree swash-plate helicopter, all fixed wings, gliders and multi-rotor
Simulator mode: Transmitter switches to power saving mode
Screen: 2.8 inches 16 bit colour screen, 240 – 320PX
Supports receivers: R9DS, R12DS, R12DSM, R6DS, R6DSM
Receiver R9DS operating voltage: 4.8v – 10v
Receiver R9DS operating current: <38 – 45mA
Receiver R9DS size: 43 x 24 x 15mm
