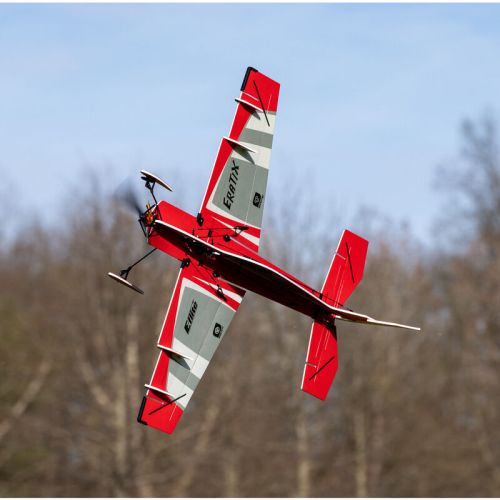

E-FLITE ERATIX 3D FF (FLAT FOAMY) 860MM PNP A-EFL01975

Description

E-FLITE ERATIX 3D FF (FLAT FOAMY) 860MM PNP A-EFL01975

The E-flite® Eratix 3D FF offers the aggressive aerobatic plus smooth sport and slow-flying performance of similar class models – without all the hassles of buying components for and building one because it bolts/snaps together in no time!

• The easiest to buy, assemble and fly flat foamy model yet – capable of slow cruising, sport flying, basic and all-out 3D aerobatics
• Specially tuned brushless motor that’s factory-installed and ready for use with popular 3S 600–850mAh batteries
• 15-amp Spektrum Avian™ Smart ESC provides real-time battery voltage, current, RPM, and other data via compatible receivers and transmitters
• Three factory-installed digital servos and linkages, including a metal-geared aileron servo
• Fast and easy assembly, unlike similar class models – no glue or tape required

In The Box

• (1) E-flite® Eratix 3D FF 860mm
• (1) Spektrum™ Avian™ 15A Brushless Smart ESC (installed)
• (1) Spektrum™ Avian™ Brushless Outrunner Motor (installed)
• (3) Spektrum Sub-Micro Digital Servos (installed)
• (1) Product Manual

Needed to Complete

• (1) Full-range 4+ Channel Transmitter and Receiver
• (1) 3S 11.1V 600–850mAh LiPo with IC2 Connector (or JST-RCY connector plus a suitable IC2 to JST-RCY adapter)
• (1) Compatible LiPo Charger

Introduction

In the early 2000s, “flat foamy” models were extremely popular because they could be scratch built from foam sheets you could buy in many stores. Today, most foam models are fully-molded sport and scale aircraft – and few can match the unique capabilities and performance of flat foam models, especially those designed and built for aerobatic plus 3D flying! The E-flite® Eratix 3D FF (Flat Foamy) 860mm is perfect for experienced pilots who already build and fly flat foam models, intermediate pilots who are interested in them but don’t want to undertake a complicated build, and less experienced pilots who have always wanted to try but were intimidated by the extra effort and skills required to buy, build and fly such a model. The Eratix 3D FF is the easiest-to-fly, most convenient, and best value in a flat foamy model yet!

Features

• The easiest to buy, assemble and fly flat foamy model yet – capable of slow cruising, sport flying, basic and all-out 3D aerobatics
• Specially tuned brushless motor that’s factory-installed and ready for use with popular 3S 600–850mAh batteries
• 15-amp Spektrum Avian™ Smart ESC provides real-time battery voltage, current, RPM, and other data via compatible receivers and transmitters
• Extremely durable yet lightweight, high-density EPP airframe with carbon fiber and composite reinforcements
• Three factory-installed digital servos and linkages, including a metal-geared aileron servo
• Factory-finished in a high-contrast, high-visibility trim scheme for excellent orientation
• Fast and easy assembly, unlike similar class models – no glue or tape required
• Landing gear snaps into place for easy installation, removal, and replacement

Overview

The E-flite Eratix 3D FF (Flat Foamy) 860mm offers the aggressive aerobatic plus smooth sport and slow-flying performance of similar class models – without all the hassles of buying components for and building one! It bolts/snaps together and can be ready to fly in less time than it takes to charge a battery compared to the glue, tape, and many hours it usually takes to assemble other “flat foamy” aircraft. Its lightweight yet extremely durable EPP airframe is mostly factory-assembled and includes a factory-installed power system and servos. The 3S compatible brushless motor is matched with an exclusive Spektrum Avian Smart ESC. The BNF Basic version is equipped with an AR630 receiver to deliver real-time telemetry data along with AS3X and SAFE Select technologies. It’s small enough and light enough to be flown indoors in gymnasiums and other similar spaces or outdoors in yards, parks, and sports fields, making it a versatile addition to the hangar for a wide variety of pilots!

Plug-N-Play® Completion Level

This Plug-N-Play (PNP) version comes out of the box with a factory-installed power system and servos that are ready to connect to the compatible receiver of your choice (sold separately), plus the transmitter and battery you provide (also sold separately). Install the receiver, finish any final assembly, and fly!

Smart Technology

The Eratix 3D FF is equipped with an exclusive Spektrum™ Avian™ Smart ESC that can provide a variety of real-time power system-related telemetry data, including motor RPM, current, battery voltage, and more – with Smart and non-Smart batteries – via compatible receivers (including the AR630) and Spektrum AirWare™ equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6, 8 and 10, iX12, iX14, iX20, and others) while you fly.

High Performance

The factory-installed brushless power system features a specially-tuned outrunner motor. This power system delivers plenty of thrust for unlimited vertical and 3D performance with 3S batteries! Use 600mAh batteries to keep the weight down, or up to 850mAh batteries for longer flight times.

Uniquely Capable

Like other flat foamy models, the Eratix 3D FF is capable of slow cruising, smooth sport flying, basic aerobatics, and even aggressive 3D flying — all in the same flight! It offers a truly “mild to wild” flight experience intermediate to experienced pilots will appreciate whether flying indoors in gymnasiums or outdoors in yards, parks, sports fields, and beyond.

Easy Assembly

Unlike other similar flat foamy models only available as kits without power and control components, the Eratix 3D FF arrives factory-assembled with the power system, servos, and the receiver (BNF Basic version only) installed. All you need to do is finish some quick and easy final bolt/snap-together assembly – without glue, tape, or special tools – and you’ll be ready to fly in less time than it takes to charge a battery!

Durable Design

Construction with carbon fiber and composite-reinforced, high-density EPP delivers a lightweight yet stiff and durable airframe. In the unfortunate event you damage any airframe parts or components and can’t repair them, a full line of replacement/spare parts is readily available.

Product Specifications

• Motor Type Brushless
• Speed Control Included
• Product Weight 13.3oz (376g)
• Radio Sold Separately
• Technology Smart
• Battery Sold Separately
• Connector Type IC2
• Motor Size 2405- 1200KV 14-Pole
• Product Length 35.69″ (907 mm)
• Power Type Electric
• Servos Included
• Wingspan 34″ (864 mm)
• Completion Level Plug-N-Play
• Propeller Size 9×4.6SF Electric
• Recommended Motor Battery 850mAh 3S 11.1V LiPo Battery with IC2 Connector
• Approximate Assembly Time Less than 1 Hour
• Material Foam
• Charger Sold Separately
• Motor Design Outrunner
• Receiver Sold Separately
