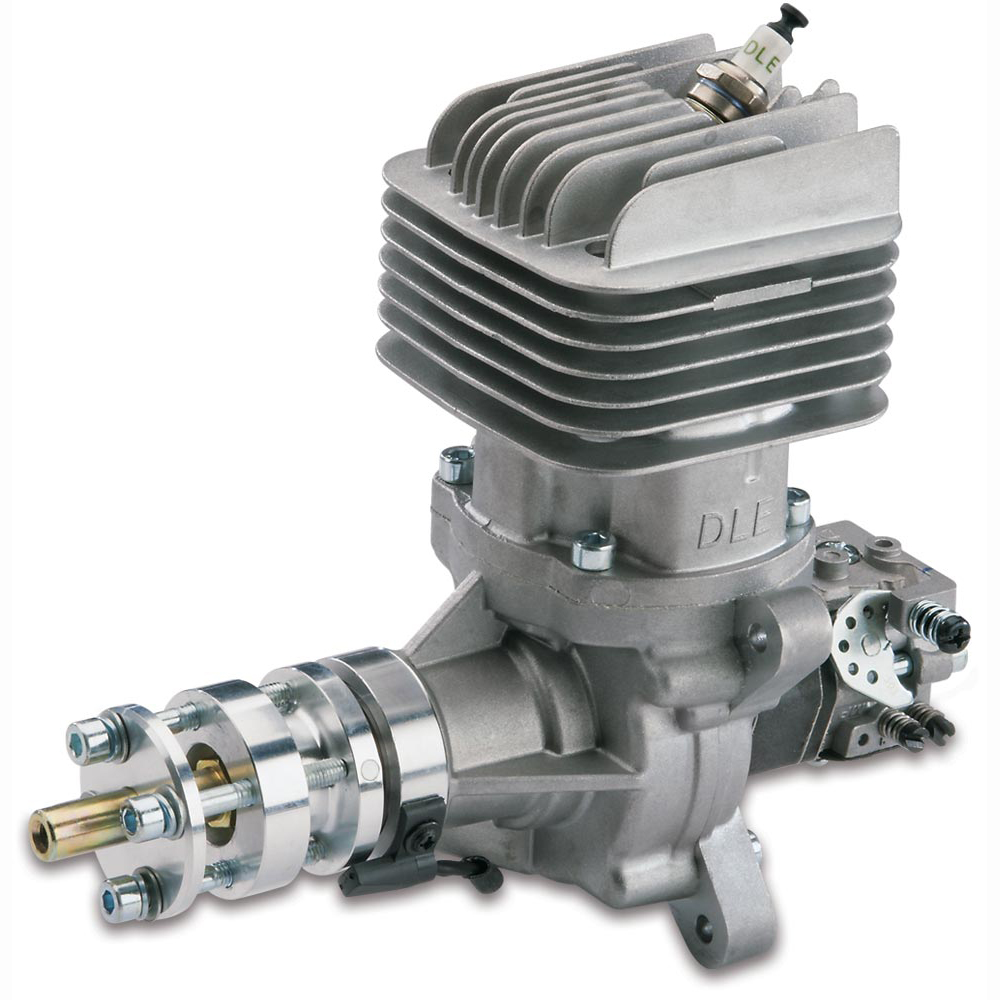

DLE 55RA Two-Stroke Petrol Engine DLE-55RA 55cc
£435.00
Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.
Description
Description
DLE 55RA Two-Stroke Petrol Engine DLE-55RA 55cc
MORE POWER!
Producing 100 rpm more than the DLE-55, the DLE-55RA screams performance – from the lightweight piston skirt that speeds throttle response to the rear exhaust design that permits easy tuned pipe installation. Ideal for warbirds and aerobatic aircraft, it comes with engine standoffs, electronic ignition, spark plug and Pitts style muffler.
IMPORTANT NOTICE: We highly recommend using NGK-CM6 spark plugs with this engine for optimum performance.
PRODUCT FEATURES
- Advanced CNC machining, tight tolerances and refined porting improve compression and fuel burning efficiency to raise performance and reduce exhaust residue.
- Redesigned, lightened piston skirt provides better throttle response, fuel economy and resistance to wear.
- Included 2-stage Pitts muffler reduces back pressure and increases power.
- Also features a special aluminum alloy crankcase, high-quality sealed crankshaft bearings and DLE-customized carburetor.
SPECIFICATIONS:
| Displacement: | 55.6 cc (3.4 cu in) |
|---|---|
| Bore: | 1.77 in (45 mm) |
| Stroke: | 1.38 in (35 mm) |
| Weight: | 3.74 (1.7 kg) |
| RPM Range: | 1,500-8,500 |
| Output: | 5.5 hp @ 8,500 rpm |
| Requires: | Unleaded Petrol (Gasoline), oil, ignition battery & propeller |
| Includes: | Electronic Ignition, Muffler, Spark Plug, Engine Standoffs, Integrated Choke Rod Guide and Rear-Mounted Carb |
TECHNICAL DATA:
| Ignition Battery: | 4.8V-12V (Voltage regulator required if LiFe or LiPo pack is used) |
|---|---|
| Compression Ratio: | 7.6:1 |
| Petrol/Oil Mix: | 30:1 |
| Weight Breakdown: | Engine: 46.74 oz (1325 g); Muffler: 3.17 oz (90 g); Ignition: 5.11 oz (145 g) |
DLE 55RA Two-Stroke Petrol Engine DLE-55RA 55cc
For other sized DLE Engines click here: DLE Engines
News on Aircraft clubs and restrictions click here: https://bmfa.org/
Specification
Specification
| Fuel Type | Petrol |
|---|---|
| Brand | DLE Engines |
