£389.95

In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received

EAN: 667300804358 SKU: DLE35RA Category:

Description

Description

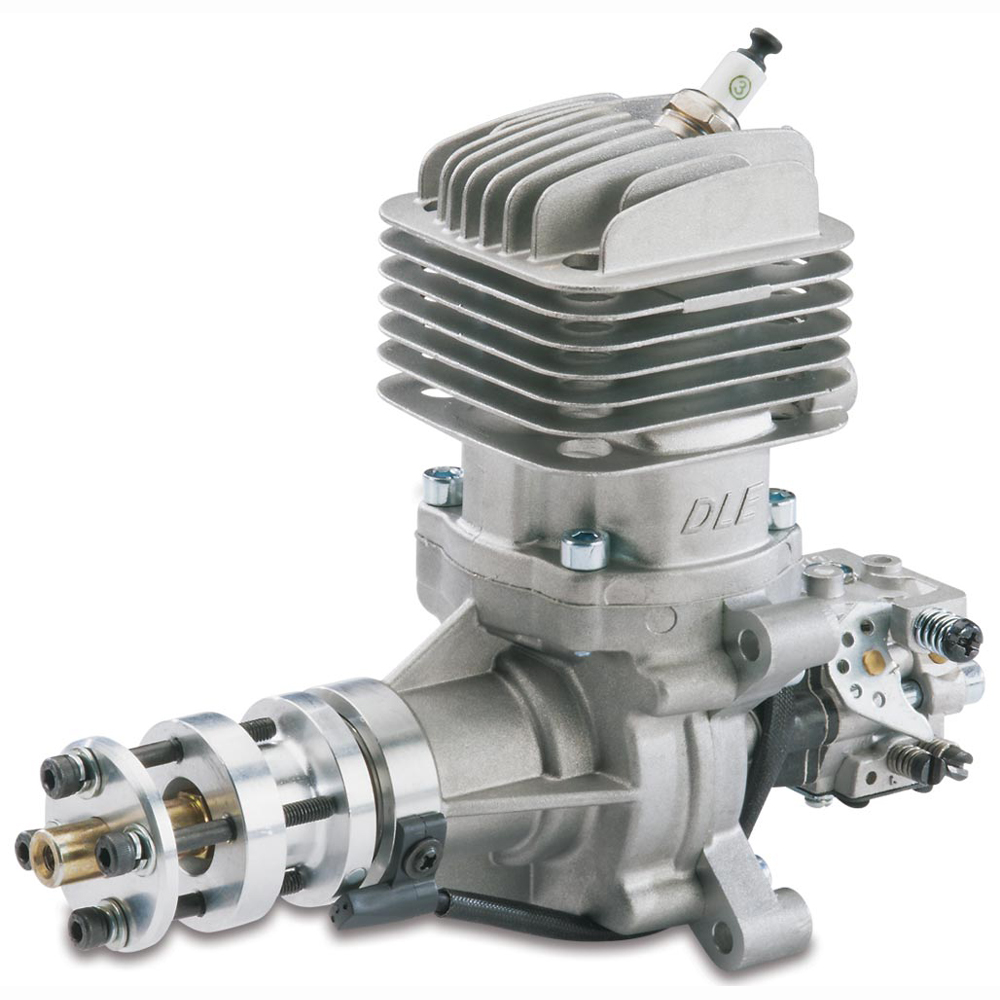

DLE 35RA Two-Stroke Petrol Engine DLE-35RA 35cc

HIGH PERFORMANCE IN A COMPACT PACKAGE!
Producing 400 rpm more than the DLE-30, the DLE-35RA offers gas power convenience and performance in a popular size – great for pattern pilots and any fliers eager to give their aerobatic aircraft an extra edge. The rear exhaust design is ideal for tuned pipe setups.

IMPORTANT NOTICE: We highly recommend using NGK-CM6 spark plugs with this engine for optimum performance.

PRODUCT FEATURES

  • Advanced CNC machining, tight tolerances and refined porting improve compression and fuel burning efficiency to raise performance and reduce exhaust residue.
  • Redesigned, lightened piston skirt provides better throttle response, fuel economy and resistance to wear.
  • Included 2-stage muffler’s two outlets reduce back pressure and increase power.
  • Also features a special aluminum alloy crankcase, high-quality sealed crankshaft bearings and DLE-customized carburetor.

Specifications:

Displacement:34.9 cc (2.13 cu in)
Bore:1.52 in (38.5 mm)
Stroke:1.18 in (30 mm)
Weight:2.77 lb (1.26 kg)
RPM Range:1,500-8,500
Output:4.1 hp @ 8,500 rpm
Requires:Unleaded Petrol (Gasoline), oil, ignition battery & propeller
Includes:Electronic ignition, muffler, spark plug, engine standoffs, integrated choke rod guide & rear-mounted carb

Technical Data:

Ignition Battery:4.8V-12V NiMH, LiPo or LiFe pack (Voltage regulator required if LiPo or LiFe pack is used.)
Compression Ratio:7.6:1
Petrol/Oil Mix:30:1
Weight Breakdown:Engine: 33.02 oz (936 g); Muffler: 2.61 oz (74 g); Ignition: 5.26 oz (211 g)



DLE 35RA Two-Stroke Petrol Engine DLE-35RA 35cc

For other sized DLE Engines click here: DLE Engines

News on Aircraft clubs and restrictions click here: https://bmfa.org/

Specification

Specification

Fuel Type

Petrol

Brand

DLE Engines
