£789.95
Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.
Description
Description

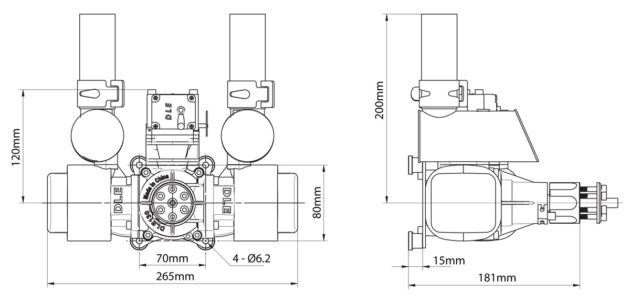

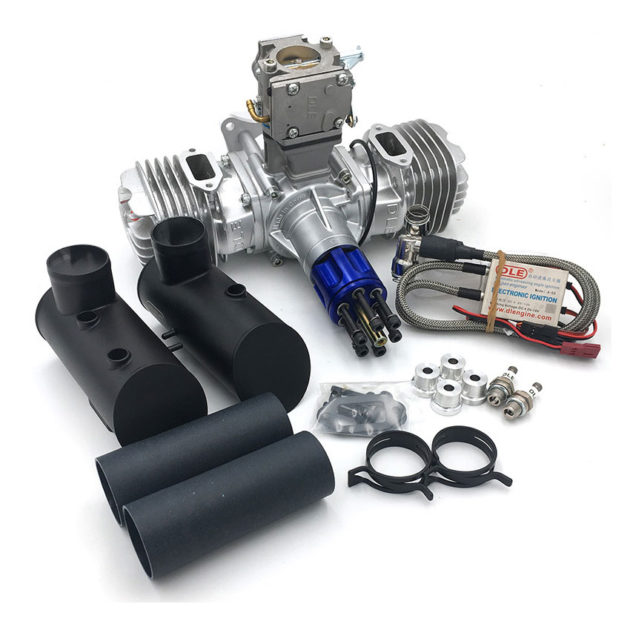

DLE-130 Flat Twin Petrol Engine DLE-130 130cc
TECHNICAL DATA
- Performance: 13HP/8500rpm
- Idle Speed: 1300rpm
- Static Thrust 28.5Kg / 100 metres Altitude
- Static Thrust 24.5Kg / 1800 metres Altitude
- Recommended Prop: 27 x 12, 28 x 10, 28 x 11, 29 x 9
- Spark Plug: DLE-6 (Supplied)
- Ignition Voltage: 4.8 ~ 12V
IMPORTANT NOTICE: We highly recommend using NGK-CM6 spark plugs with this engine for optimum performance.
SPECIFICATIONS:
Displacement: | 130cc |
---|---|
Bore x Stroke: | 47mm x 37.5mm |
Compression Ratio: | 9.2:1 |
Ratio of Lubricating Capacity: | 30:1 |
Net Weight: | 2.5kg |
Muffler Weight: | 350g |
Ignition Weight: | 190g |
DLE-130 Flat Twin Petrol Engine DLE-130 130cc
For other sized DLE Engines click here: DLE Engines
News on Aircraft clubs and restrictions click here: https://bmfa.org/
Specification
Specification
Fuel Type | Petrol |
---|---|
Brand | DLE Engines |
