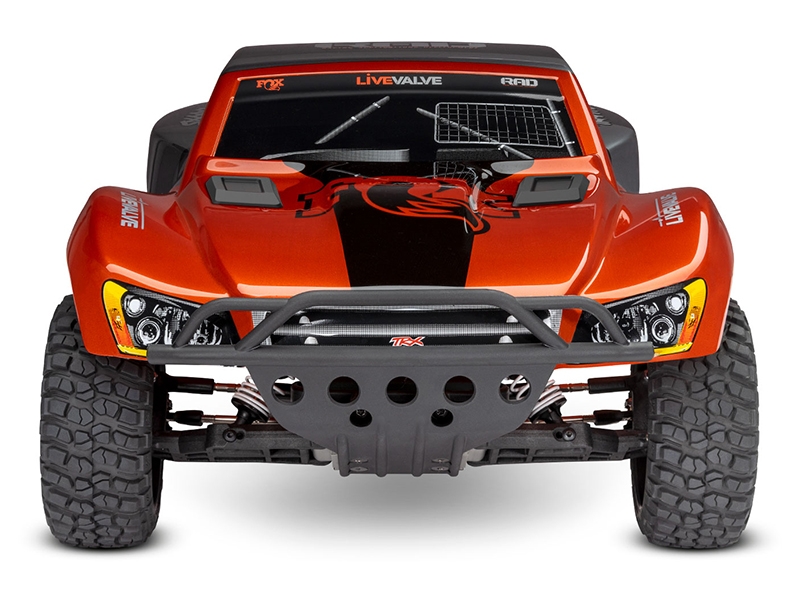

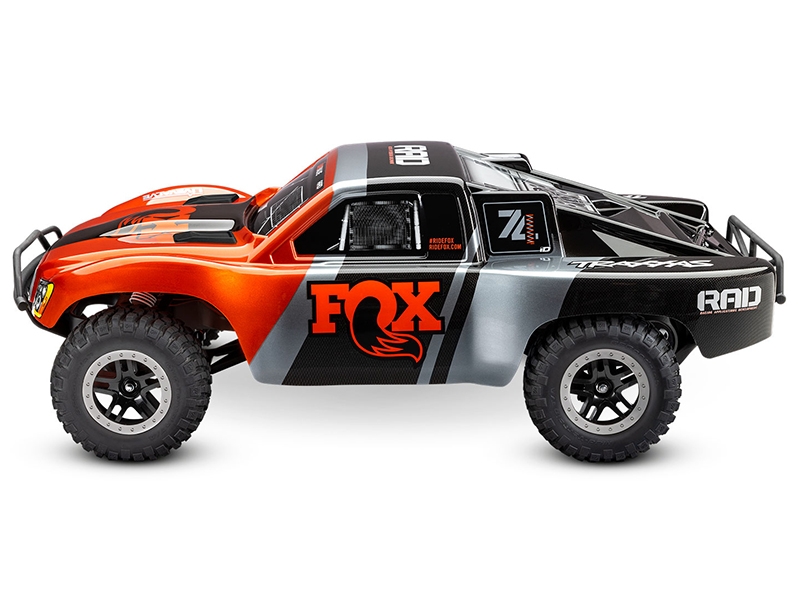

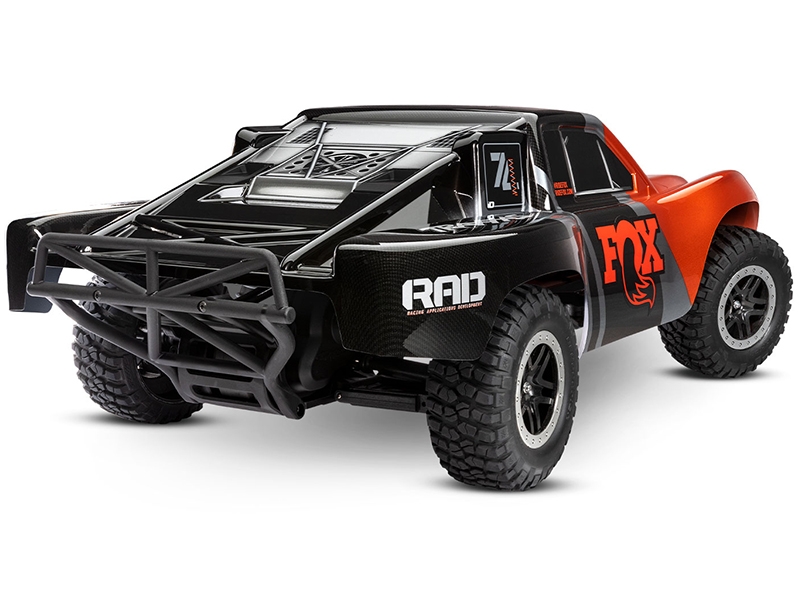

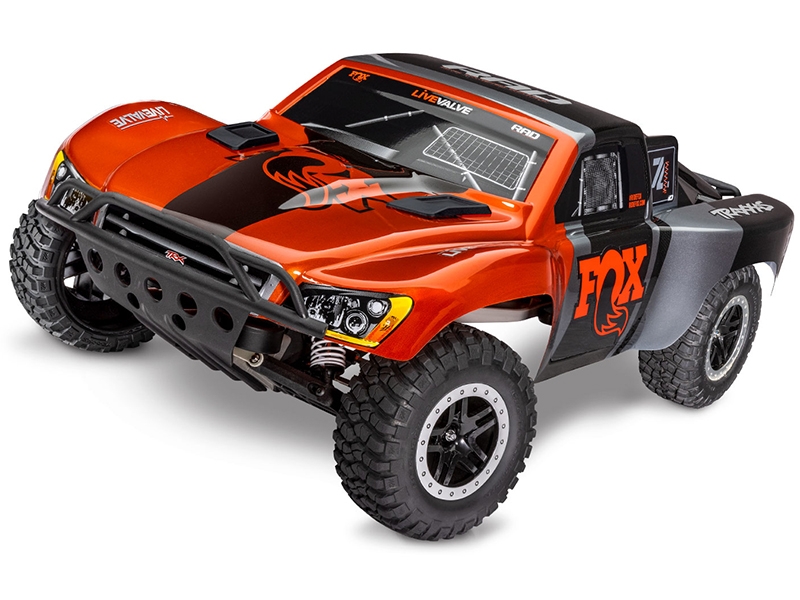

Traxxas Slash 1:10 2WD RTR VXL-3S Brushless Short Course Truck – Fox TRX58276-74-FOX

Description

Traxxas Slash 1:10 2WD RTR VXL-3S Brushless Short Course Truck – Fox TRX58276-74-FOX

The Traxxas Slash VXL puts you in the driver’s seat for intense fender-to-fender, high-flying off-road action. Since its introduction, the Slash has set the standard for durability, performance, and technology. Traxxas Stability Management® puts Slash VXL’s tire-shredding power to the ground while making it incredibly agile and easily controllable. Extreme Velineon® brushless power provides screaming 60+mph† speed while the advanced TQ™ radio system keeps everything under precise control. With just one drive you will see why the Traxxas Slash VXL elevates short course performance to a whole new level.

QUICK FEATURES ON SLASH VXL (58276-74)
­

• Pre-painted clipless race replica body
• Magnum 272R™ transmission
• Aluminum motor plate
• All-metal internal gears
• Sealed beveled-gear differential
• Velineon® brushless power system
• Traxxas Stability Management TSM®
• TQi™ 2.4 GHz transmitter and receiver
• Waterproof electronics
• Digital high-torque waterproof steering servo
• Precision steel turnbuckles with heavy-duty rod ends
• 100% Fully assembled and Ready-To-Race®
• Battery and charger sold separately

Clipless Body Mounting

Slash’s innovative clipless body features secure mounting with quick and easy removal. No posts, no clips—just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift up to access the chassis in just seconds.

Pro Series Magnum 272R™ Transmission

The Magnum 272R uses a new low-profile housing with a rock-solid 3.2 mm aluminum motor plate. A hardened steel top shaft and all-metal gears send power to a sealed, silicone-filled 4-gear differential for maximum traction. A removable panel gives you easy access to the differential for tuning with different viscosity fluids. Originally developed for the hard-hitting Drag Slash, the Magnum 272R delivers competition-grade performance for your Slash VXL.

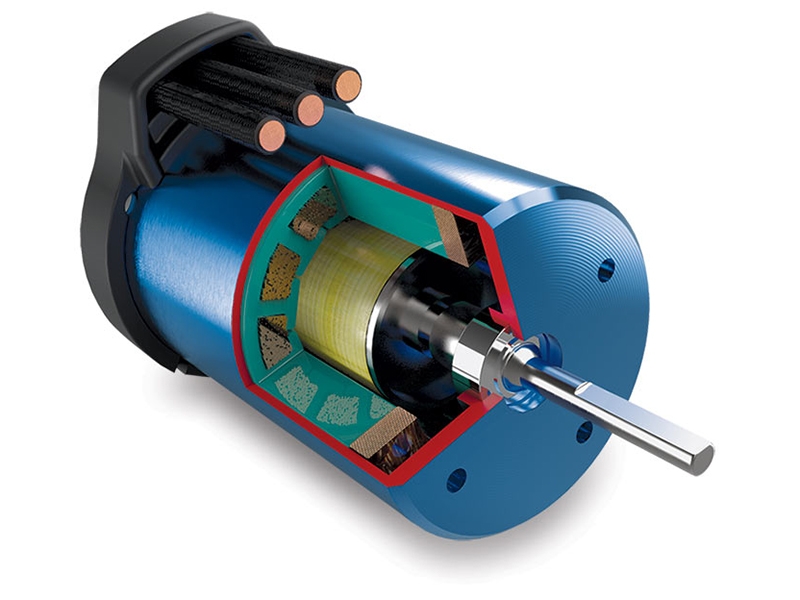

Class-Leading Velineon Brushless Power

The Velineon brushless motor and electronic speed control deliver the ultimate in efficiency, speed, and run time. With the Slash VXL, your battery selection determines your speed and skill level. Velineon accepts a wide range of batteries, including powerful 3-cell LiPo packs. These packs pump out over 11 volts of power for intense, skill level 5 speeds beyond 65 mph! Built-in low-voltage detection in the VXL-3s™ ESC helps you maintain your LiPo packs in top condition.

• Length ­ 22.4 inches (568 mm)
• Front Track ­ 11.65 inches (296 mm)
• Rear Track ­ 11.65 inches (296 mm)
• Weight ­ 90.4 ounces (2.56 kg)
• Height (overall) ­ 8.43 inches (214 mm)
• Wheelbase ­ 13.2 inches (335 mm)
• Front Shock Length ­ Long
• Rear Shock Length ­ XX-long
• Front Tires ­ Slash 2.2″ (pre-glued with inserts)
• Rear Tires ­ Slash 2.2″ (pre-glued with inserts)
• Front Wheels ­ 2.2″ satin or chrome-finish
• Rear Wheels ­ 2.2″ satin or chrome-finish

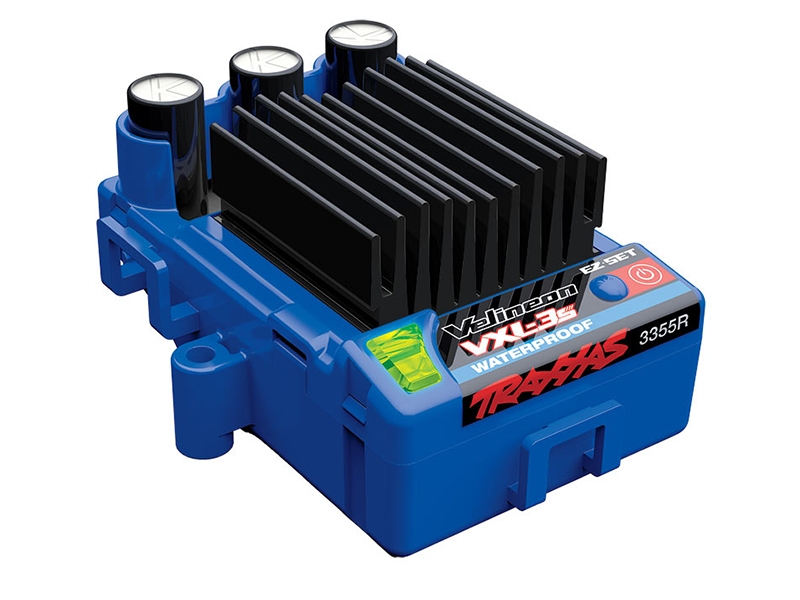

• Speed Control ­ VXL-3s™
• Motor (electric) ­ Velineon® 3500 brushless
• Gear Ratio (internal) ­ 2.72 (final drive: 10.2)
• Differential Type ­ Steel composite planetary
• Gear Pitch ­ 48-pitch
• Transmission ­ Metal gear Magnum 272™
• Steering ­ Bellcrank

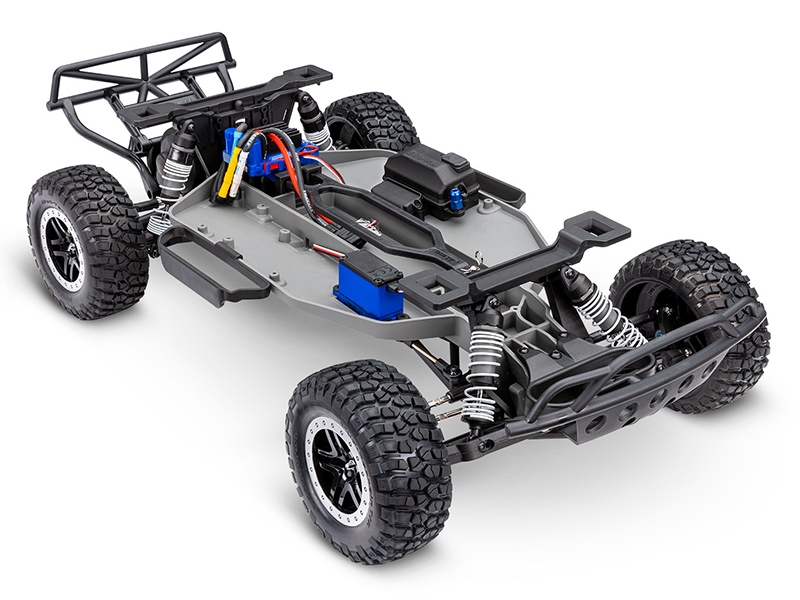

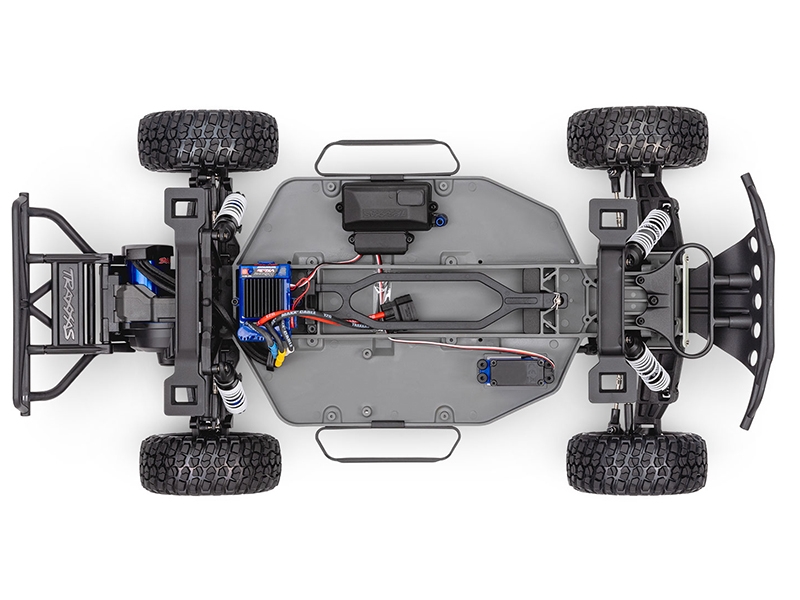

• Chassis Type ­ Long-wheelbase fiber-composite chassis
• Chassis Material ­ Composite Nylon
• Center Ground Clearance ­ 3.5 inches (89 mm)
• Top Speed ­ 60+mph*
• Skill Level ­ 1

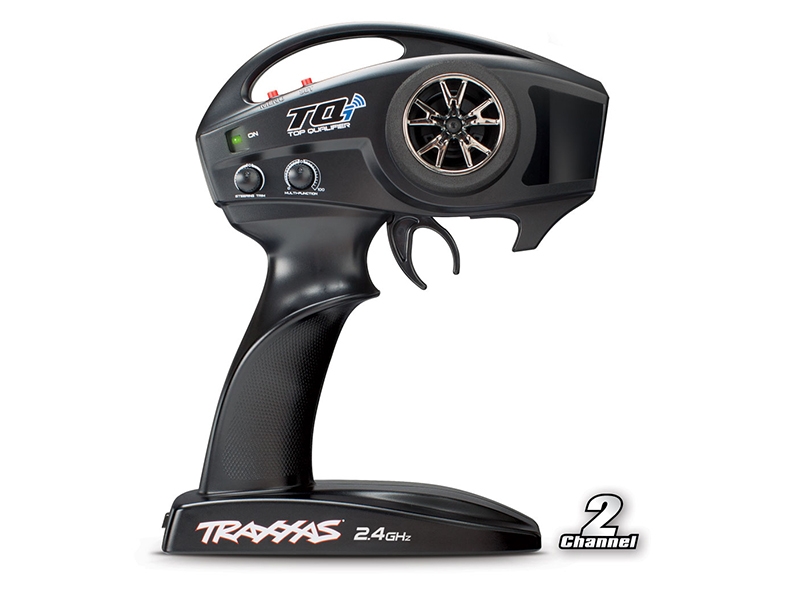

• Radio System (transmitter) ­ TQi™ 2.4 GHz (2-channel)
• Radio System (receiver) ­ Traxxas Stability Management (TSM)® (6533)
• **Battery Tray Dimensions ­ 165 mm x 49.5 mm x 23 mm, 25 mm

Required for Use:

• 8.4v NiMH Battery (Hump or Stick) or LiPo Battery (2S or 3S) with a Traxxas Connector
• Suitable Charger
• x4 AA’s for Transmitter

MODEL 58276-74: Fully assembled with Traxxas Stability Management TSM®, TQi™ 2.4 GHz
radio system, Velineon® brushless power system, Pro Series Magnum 272R™ Transmission,
and Clipless ProGraphix® race replica painted body
