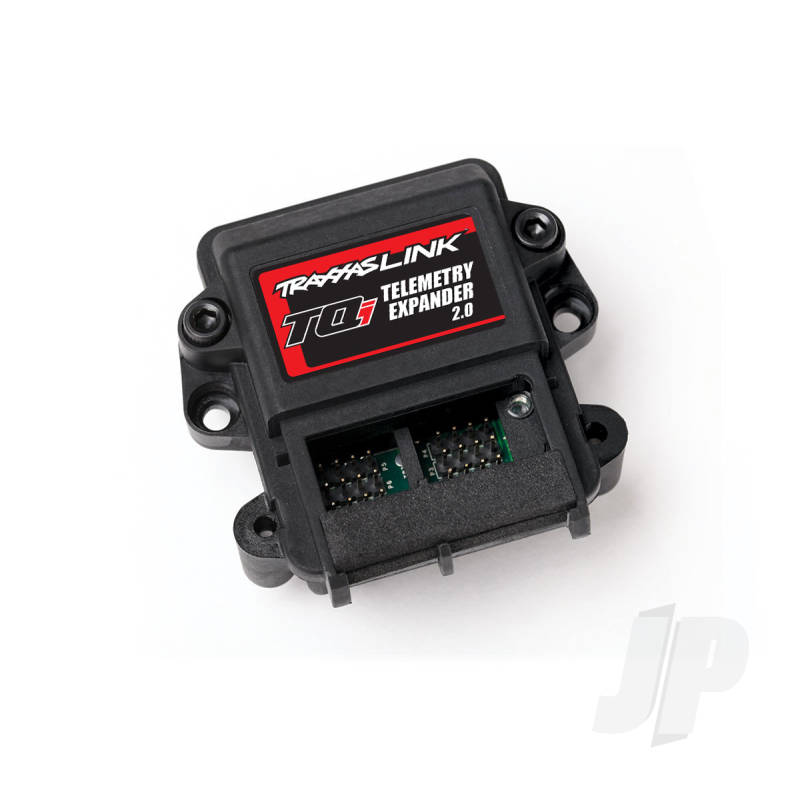

Traxxas TQi Radio Telemetry Expander 2.0

Description

Traxxas TQi Radio Telemetry Expander 2.0

Expanded Innovation

Traxxas TQi Radio Telemetry Expander 2.0 changes the game by allowing you to monitor and record real-time data from your vehicle while you drive. Add the GPS module to the water-sealed Telemetry Expander and track the actual speed of your vehicle in real-time! The Telemetry Expander accepts up to six auto-detectable sensors in addition to the three standard Traxxas sensors. There are currently three auto-detectable sensors to select from: voltage, temperature, and GPS. The Traxxas Link application automatically recognizes sensors, so setup takes only a few moments! Advanced communication bus technology allows you to connect the telemetry expander to your TSM receiver or to your High-Voltage Power Amplifier, or directly to the VXL-6s and VXL-8s electronic speed controls with optional data cables. Install the Telemetry Expander, choose your sensors, and prepare for an all-new RC driving experience!

Features:

• Includes receiver data cable (optional data cables available)
• Installs quickly and easily; no parts to replace or swap
• Waterproof case keeps the expander safe from the elements
• Six available ports for connecting auto-detectable plug and play sensors
• Ready to accept plug-in GPS Speed Module (part #6551X, sold separately)

Important Information

The new GPS Module 2.0 (#6551X) and Telemetry Expander 2.0 (#6550X) replace the original Telemetry Expander (#6550) and GPS Module (#6551). The originals are not compatible with the new 2.0 versions.

The Benefits of Traxxas Telemetry

The Traxxas TQi radio system, Wireless Link Module, and Traxxas Link App transform your Apple or Android device into a powerful tuning tool with an intuitive, high-definition, full-color graphical user interface. Adjust your radio trims and settings, vehicle profiles, update model memory, and tailor your vehicle for different driving conditions by means of a virtual dashboard and interactive screens. Using the complete TQi system and Traxxas Link app makes pro-level transmitter tuning fast, convenient, and easy

Open the dashboard from the Traxxas Link home screen to view data from telemetry-ready accessories and sensors. The application recognizes installed auto-detectable telemetry sensors for easy setup. Record and save all displayed data to share with friends and other RC enthusiasts. The Telemetry Expander adds even more functionality with up to six additional sensors and the GPS module. Installation is quick and easy utilizing a single high-speed communications cable to the receiver, or to the High-Voltage Power Amplifier or ESC with optional data cables. Unlock a whole new world of convenience and fun with Traxxas telemetry!

Easy to Install

The Telemetry Expander 2.0 is easy to install with custom, vehicle specific mounting kits from Traxxas. These mounting kits ensure that the Telemetry Expander 2.0 is secured in the model with a clean and rugged solution that delivers the durability you expect from Traxxas.

TELEMETRY EXPANDER MOUNTING KITS:

• 6554 : Rustler, Bandit, Slash 2WD
• 6555 : Slash 4X4, Stampede 4X4, 1/10 Rally, Jato
• 6556 : XO-1, Summit*, Revo 3.3, Slayer Pro 4X4
• 6557 : Stampede 2WD
• 6559 : Spartan, M41
• 6561 : TRX-4

Easy to Connect

Traxxas models equipped with the TQi radio system
The Telemetry Expander 2.0 connects directly to the TQi receiver using the supplied #6525 communication link cable.

X-Maxx, E-Revo, and Unlimited Desert Racer
Install the Telemetry Expander 2.0 and GPS Module for even more accurate speed measurements compared to the built in speed output from the VXL 6S and VXL 8S electronic speed controls. Plus, add the ability to install additional sensors to monitor parameters such as motor temperature. The Telemetry Expander connects directly to the VXL-6S or VXL-8S electronic speed control using the new Traxxas Data Link Cable #6566 (sold separately). Using the #6566 cable is a plug-and-play solution that conveniently eliminates the need to open the waterproof receiver box to add additional cables.

Vehicles equipped with the #6590 High Voltage power amplifier
The #6590 High Voltage Power supply is used for lighting accessories such as the #8485 off-road lighting set for the Unlimited Desert Racer. The #6550X Telemetry Expander can be conveniently connected directly to the #6590 high voltage power amplifier using the new #6565 Data Link Cable (sold separately). This provides a quick and easy plug-and-play connection without having to open the waterproof receiver box to add additional cables.

TRAXXAS TELEMETRY OPTIONS

• 6550X : Telemetry Expander 2.0
• 6551X : Telemetry GPS Module 2.0
• 6526 : Temperature Sensor, Auto-Detectable
• 6527 : Voltage Sensor, Auto-Detectable
