Tamiya XV-02 Pro Chassis Kit 58707

Description

Tamiya XV-02 Pro Chassis Kit 58707 – Expected 16th June

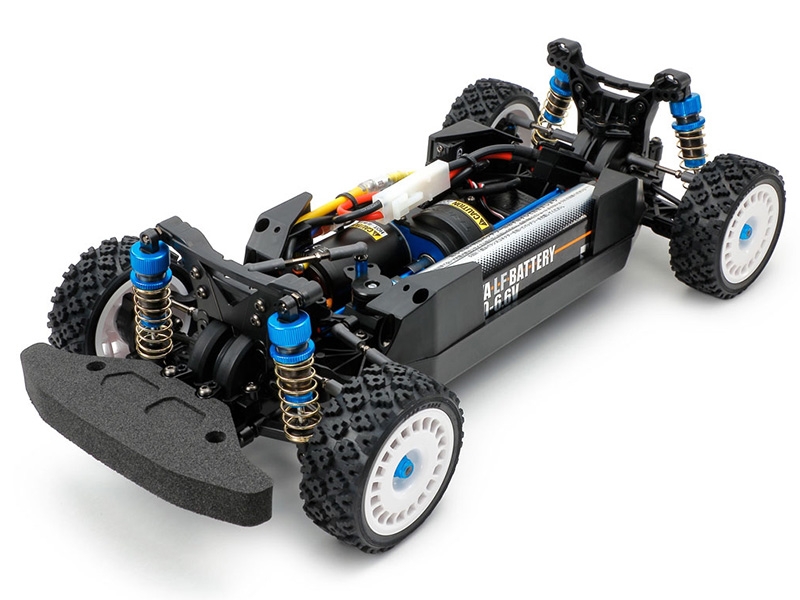

The all-new XV-02 Pro chassis kit is Tamiya’s second modern era, purpose built, 4WD Rally machine! The XV-01 Pro incorporated a 4WD belt drive system with clever positioning of the RC electronic components with debris protection compartments. The all-new XV-02 Pro takes its 4WD drivetrain into a different direction by using a shaft-driven system with front mid-ship motor placement that incorporates equal length front and rear propeller shafts!

Tamiya XV-02 Pro at a glance:

Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance. (Over-Drive and Under-Drive Adjustment)
Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.
Features newly-designed parts such as gears, bathtub frame chassis, chassis cover, caster blocks featuring 6-degree caster angle (XV-01 chassis: 10-degree caster angle), and bumpers with skid angles to reduce surface contact.
The motor mount, propeller shafts, input and center shafts, and urethane bumpers have new metal parts.
Features a longitudinal battery pack position in the center-left for optimum balance.
Long aluminum dampers are employed at front and rear.
A polycarbonate chassis cover with wheel well liners help prevent dirt and dust from getting inside.
Suspension arms and front uprights are based upon the XV-01 chassis kit.
Comes with rally block tires and wheels.

Requires: Tamiya Rally Body, 2-channel radio, servo, ESC, 540-type motor, and 7.2-7.4volt battery with compatible charger.
