SKY RC B6 Nano Duo AC Charger SK-100146

Description

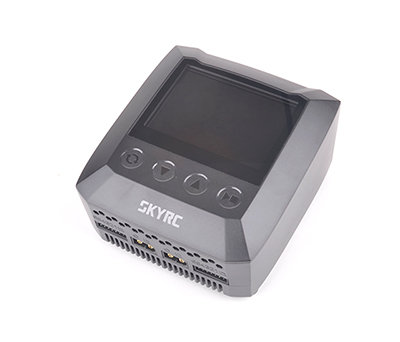

SKY RC B6 Nano Duo AC Charger

B6 Nano Duo comes out with the aspiration of developing a charger with tiny body but mighty power which makes charing in racing area more convenient and faster.The features,APP Control, Scan to Go, The features APP Conrol and Scan to go bring the user a different but pleasant charging experience.

No more scrolling through complex menu, what you see is what you need.

Large black screen, active visual size is 72.4*51.4mm, all information at a glance.

Capacitive Touch Button

B6 nano adpots touch button, advantages of which are sturdy and durable, quick-responsive and easy operative.Charging is no more rigid.

Dual Ouput

B6 Nano Duo allows you to charge two different battery packs simultaneously. If only one channel is working, the power can be up to 200W. If two channels are working, it is 100W per channel.

Case Material: Plastic
Case Size: 127x115x71mm
Weight: 561g

Buttons And Port
External Port: 2-6S Balance Socket-XH, Battery Socket, AC Input
Controls: Four Buttons

Power
AC Input Voltage : 100-240V
Charge Wattage: 200W(100WX2)
Discharge Wattage: 8W

Battery
BatteryTypes/Cells:
LiPo/LiIon/LiFe/LiHV:1-6cells
NiMH/NiCd: 1-15cells
Pb: 2-20V

Battery Capacity Range:
NiMH/NiCd:100-50000mAh
LiPo/LiIon/LiFe/LiHV:100-50000mAh
Pb: 100-50000mAh

Charge and Discharge
Charge Voltage
NiMH/NiCd: Delta peak detection
LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cell
DischargeCut-offVoltage
NiMH/NiCd:0.1-1.1V/cell
LiPo:3.0-3.3V/cell
LiFe:2.6-2.9V/cell
Pb: 1.8V LiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cell

Charge Current: 0.1A-15.0A
Discharge Current: 0.1A-3.0A
Balance Cells: 2-6 cells
Balance Current: 1000mA/cell Max
Safety Timer: 1-720minutes off
Charge Method: CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.

Powerful and High Speed Micro Controller

ARM® Cortex®-M4F 32 bits high speed processor, data process capability improves 20 times. Using industry leading 2.5V-5.5V wide range input voltage, has strong anti-interference ability.

Smart & Efficient Cooling System

Temperature controlled 16000rpm high speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device.

Universal operation, worldwide safe

100-240V AC Power input; No need any voltage converter, racing and flying outside is a breeze.

SCAN TO GO

The innovative Bluetooth Smart technology makes controlling your charger a breeze with your smartphones.

B6 Nano Due products comply with the laws and regulations into each country. Products are designed, tested and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility and other regulatory compulsory requirements, when used for their intended purpose.
