Description

Description

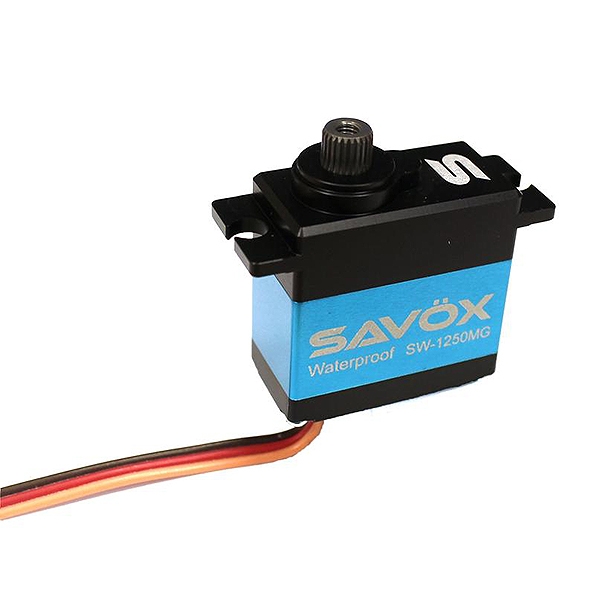

SAVOX WATERPROOF DIGITAL MINI SERVO 8KG/0.10S@6V (TRX 1/16)

The SAVOX WATERPROOF DIGITAL MINI SERVO 8KG/0.10S@6V (TRX 1/16) is a premium waterproof, ultra torque, digital mini servo that is the ultimate replacement for Traxxas 1/16 scale applications.

FEATURES
Full aluminum waterproof case.
Strong metal gear train for increased durability.
Ultra torque and speed for mini applications
Designed for Traxxas 1/16 vehicles.

SPECIFICATIONS
Torque @ 4.8v – 5.0 kg-cm/69.4 oz-in
Torque @ 6.0v – 8.0 kg-cm/111.1 oz-in
Speed @ 4.8v – 0.12 sec/60 deg
Speed @ 6.0v – 0. 10sec/60 deg

TECHNICAL DETAILS
Operating Temperature: 14° – 122°F (-10° – 50°C)
Running Current (no load): 80mA @4.8V, 100mA @6.0V
Stall Current (at locked): 1500mA @4.8V, 1900mA @6.0V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 1BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (800 → 2200 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless

Specification

Specification

Servo Power

8.0kg to 14.9kg

Servo Voltage

Servo 4.8v, Servo 6v

Servo Operation

Digital Servo

Brand

Savox

Gear Material

Metal Gear

Servo Size

Micro / Mini
