SAVOX SB2265MG LOW PROFILE BRUSHLESS HV DIGI 12KG/0.08S@7.4V – BLACK SAV-SB2265MG
Original price was: £79.99.£71.99Current price is: £71.99.Save £8.00
Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.
Description
Description

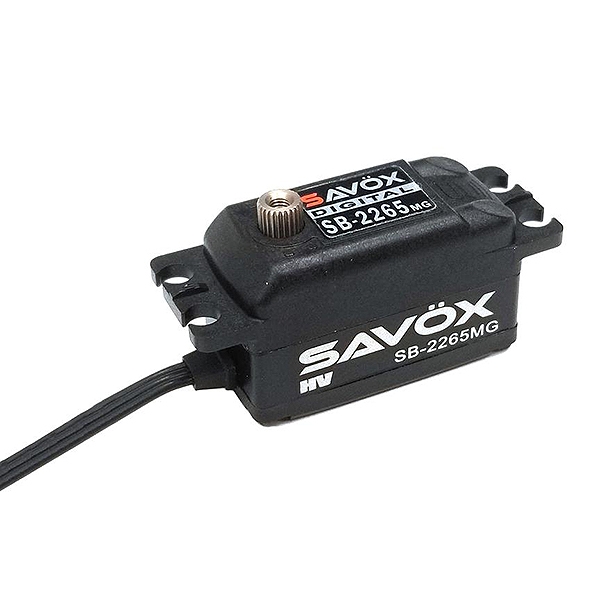

SAVOX SB2265MG LOW PROFILE BRUSHLESS HV DIGI 12KG/0.08S@7.4V – BLACK SAV-SB2265MG
FEATURES
Metal gear train ensures durability under harsh situations.
Ideal for 1/10 on road cars requiring a high speed servo
Servo Type / Size: Low Profile
Application: 1/10 Cars
Motor Type: Brushless
Gear Material: Steel
SPECIFICATIONS
Input Voltage (V): 7.4v
Torque @ 7.4v – 12.0kg/166.6oz-in
Speed @ 7.4v – 0.08 sec/60 deg

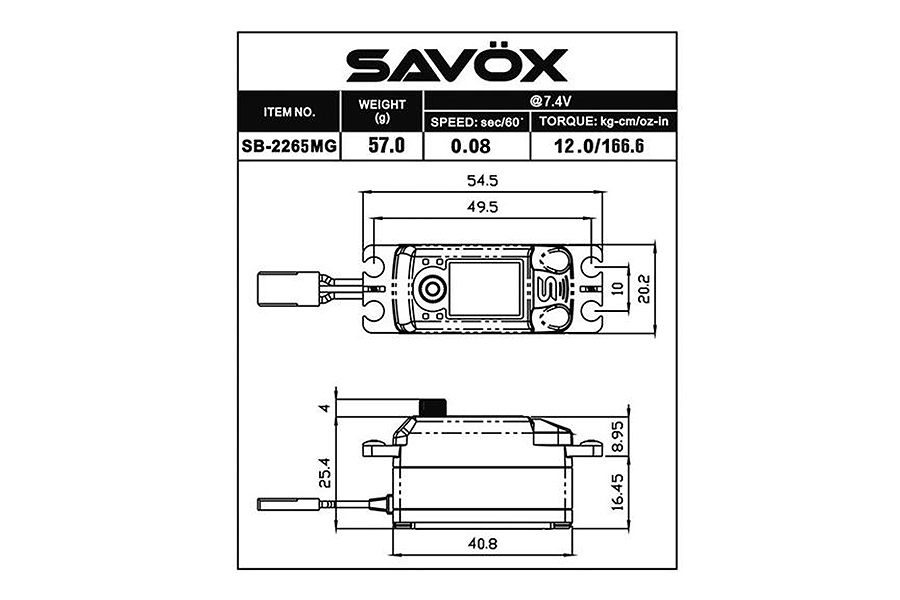

Dimensions L x W x H (mm): 40.8 x 20.2 x 25.
Weight: 57.0g
Spline size: 25T
TECHNICAL DETAILS
Operating Temperature: 14° – 122°F (-10° – 50°C)
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 3700mA @6.0 V, 4600mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 200 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 90° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless
Specification
Specification
| Servo Power | 8.0kg to 14.9kg |
|---|---|
| Servo Voltage | Servo 7.4v |
| Servo Operation | Digital Servo |
| Brand | Savox |
| Gear Material | Metal Gear |
| Servo Size | Low Profile |
