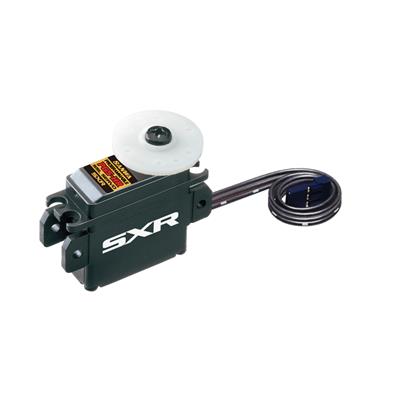

SANWA PGS-HR SERVO SA107A54573A

Description

SANWA PGS-HR SERVO SA107A54573A

FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
– SSL-COMPATIBLE PROGRAMMABLE SERVO
– Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
– PGS SETTING GEAR-COMPATIBLE
– Specialized for 1/12 models
– LiPo (1 & 2cell) Battery Support
– Digital Servo
– Coreless Motor
– Full metal gear

Speed
0.10 sec / 60° (6.0 V)
0.16 sec / 60° (3.7 V)

Torque
3.8 kg·cm (6.0 V)
5.8 kg·cm (3.7 V)

Dimensions
27.0 x 21.1 x 30.5 mm

Weight
24 g

Programmable Servo to be compatible with SSL & Telemetry at Launch
– Setting Adjustment by wireless from Radio
– Setting Adjustment to connect Servo with Setting Gear
– Regarding Temperature, Current, Voltage and Volume Position on Servo inside,
Telemetry-transmission can be passed to Radio.
– Initial Setting on Setting Gear is necessary.

– Setting Items
– SSL-CH (SSL Channel Setting) – STRETC (Stretcher Adjustment) – BOOST (BOOST Adjustment)
– D-Band (Dead Band Adjustment) – MV-MID (Middle Torque Adjustment)
– MV-END (Later Torque Adjustment) – BREAK (Break Adjustment)
?MV-HOLD (Power Adjustment at whole area) ?MV-FRQ (Feeling Adjustment at whole area)
?MAX-PW (MAX Duty Adjustment)
*Setting Gear is necessary for ?setting.
