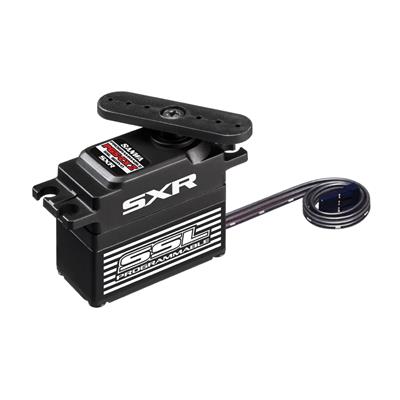

SANWA PGS-CX2 SERVO SA107A54526A

Description

SANWA PGS-CX2 SERVO SA107A54526A

\SSL Compatible – Compatible with CODE10 (M12S (RS), Exzes ZZ, MT-44) Not compatible with CODE5 (M12, Exzes Z, MT-4S, MT-4, MT-S) – MULTI SETTING GEAR compatible Not compatible with PGS SETTING GEAR – SSR mode compatible – SHR mode compatible – Lipo 2 cell battery compatible – High torque type –

SSL Compatible
– Compatible with CODE10 (M12S (RS), Exzes ZZ, MT-44)
Not compatible with CODE5 (M12, Exzes Z, MT-4S, MT-4, MT-S)
– MULTI SETTING GEAR compatible
Not compatible with PGS SETTING GEAR
– SSR mode compatible
– SHR mode compatible
– Lipo 2 cell battery compatible
– High torque type
– Coreless motor
– Metal Gears
– AL Heat Sink

Programmable Servo to be compatible with SSL & Telemetry
– Setting Adjustment by wireless from Radio
– Setting Adjustment to connect Servo with Multi Setting Gear
– Regarding Temperature, Current, Voltage and Volume Position on Servo inside,
Telemetry-transmission can be passed to Radio.
# Initial Setting on Multi Setting Gear is necessary.

– Setting Items
– SSL-CH (SSL Channel Setting) – STRETC (Stretcher Adjustment) – BOOST (BOOST Adjustment)
– D-Band (Dead Band Adjustment) – MV-MID (Middle Torque Adjustment)
– MV-END (Later Torque Adjustment) – BREAK (Break Adjustment)
?MV-HOLD (Power Adjustment at whole area) ?MV-FRQ (Feeling Adjustment at whole area)
?MAX-PW (MAX Duty Adjustment)
– Multi Setting Gear is necessary for setting.

Speed
0.11 sec / 60° (7.4 V)
0.13 sec / 60° (6.0 V)

Torque
26.5 kg ·cm (7.4 V)
23.3 kg ·cm (6.0 V)

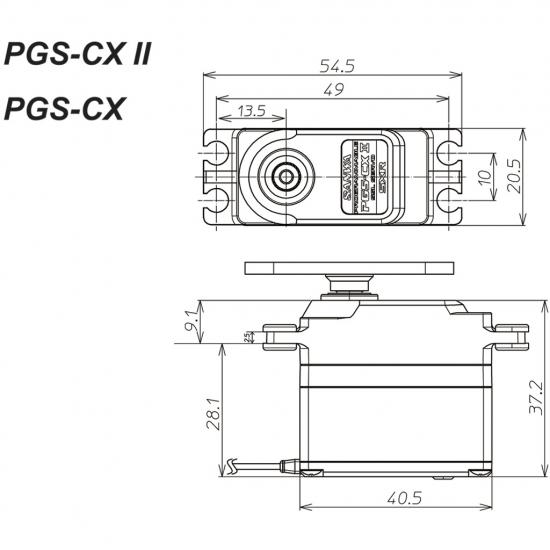

Dimensions
40.5 X 20.5 X 37.2 mm

Weight
59 g
