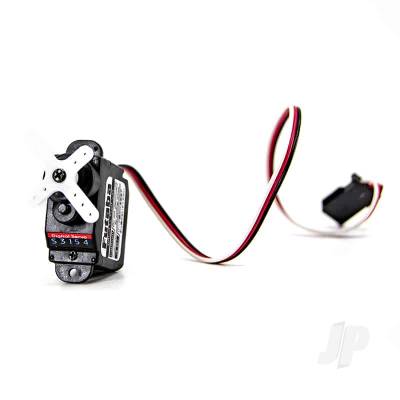

S3154 Sub-Micro Digital Servo 1.7kg 4.8V – 6V

Description

S3154 Sub-Micro Digital Servo 1.7kg 4.8V – 6V

For Small Electric Powered Models

SPEED:

• 0.10 sec/60°at 4.8V
• 0.09 sec/60° at 6.0V

TORQUE:

• 20.8 oz/in at 4.8V
• 23.5 oz/in at 6.0V

SIZE:

• 0.86 in x 0.43 in x 0.78 in

WEIGHT:

• 0.27 oz

The S3154 servo is a micro servo for small electronic powered models. Pay special attention to the following points:

Do not use with gas powered engine models or other models that require high torque.
Using supply voltage higher than 6.0V or applying high loads to the servo will shorten the life.
Always use the servo horn specifically designed for this micro servo. Do not use conventional servo horns.
Excessive force or shock to the servo horn may damage the ultra mini precision gears inside the servo.
