Radient Brushless Motor 3536 1300KV (2-4S) RDNM35361300
Original price was: £26.99.£25.49Current price is: £25.49.Save £1.50
In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received
Description
Description

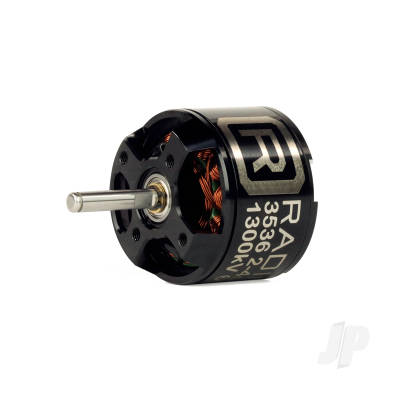

Radient Brushless Motor 3536 1300KV (2-4S) RDNM35361300
Product Description
Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It’s a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.
Key Features
- 14 Pole 12 slot hi-torque rotor.
- CNC-machined 6061-T6 billet heatsink can.
- High purity, maximum efficiency copper windings.
- High RPM ABEC5 oversized bearings.
- Precision balanced rotor offers smooth, reliable performance.
- Super-thin (0.2mm) stator laminations.
- Precision engineered for maximum energy conversion.
What’s in the Box
- 1x Radient high-torque brushless motor.
- 1x Shaft prop drive.
- 1x Can prop drive.
- 1x X-type mounting bracket.
- 4x Short countersunk screws for attaching the bracket to the motor.
- 4x Long cap head screws for can prop drive installation.
Specification:
| Watts (W): | 680 |
| Rec’d ESC (A): | 60 |
| Rec’d LiPo (cells): | 2-4S |
| Shaft Dia. (mm): | 4.0 |
| Bullet Connector (mm): | 3.5 |
| Weight (g): | 109 |
| Prop Size / 3S (in): | 9×6 / 10×6 |
| Prop Size / 4S (in): | 8×6 / 9×5 |
Specification
Specification
| Brand | Radient |
|---|
