Pilot-RC Laser 67IN 08 (Orange/Silver/White) PIL694

Description

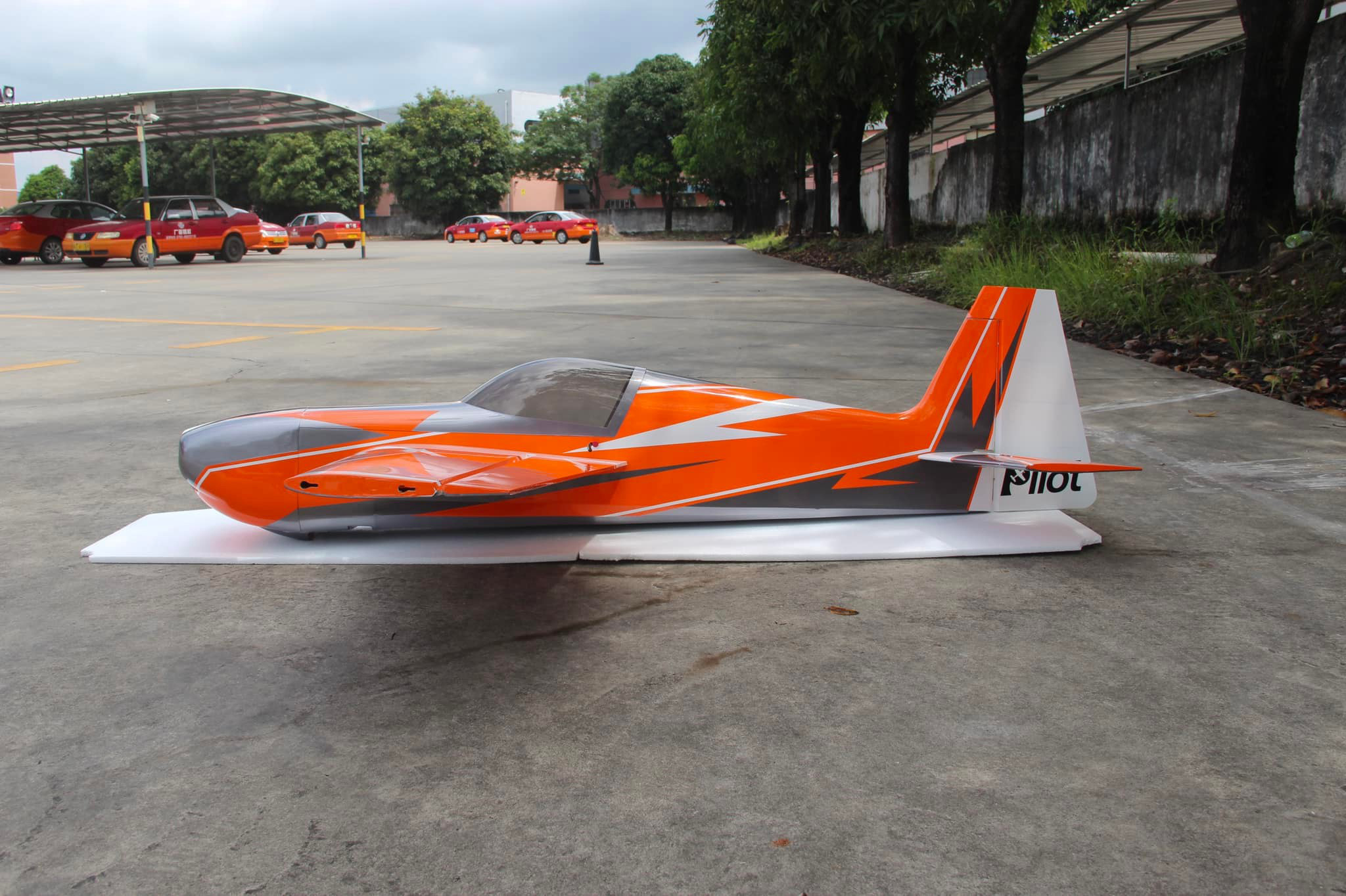

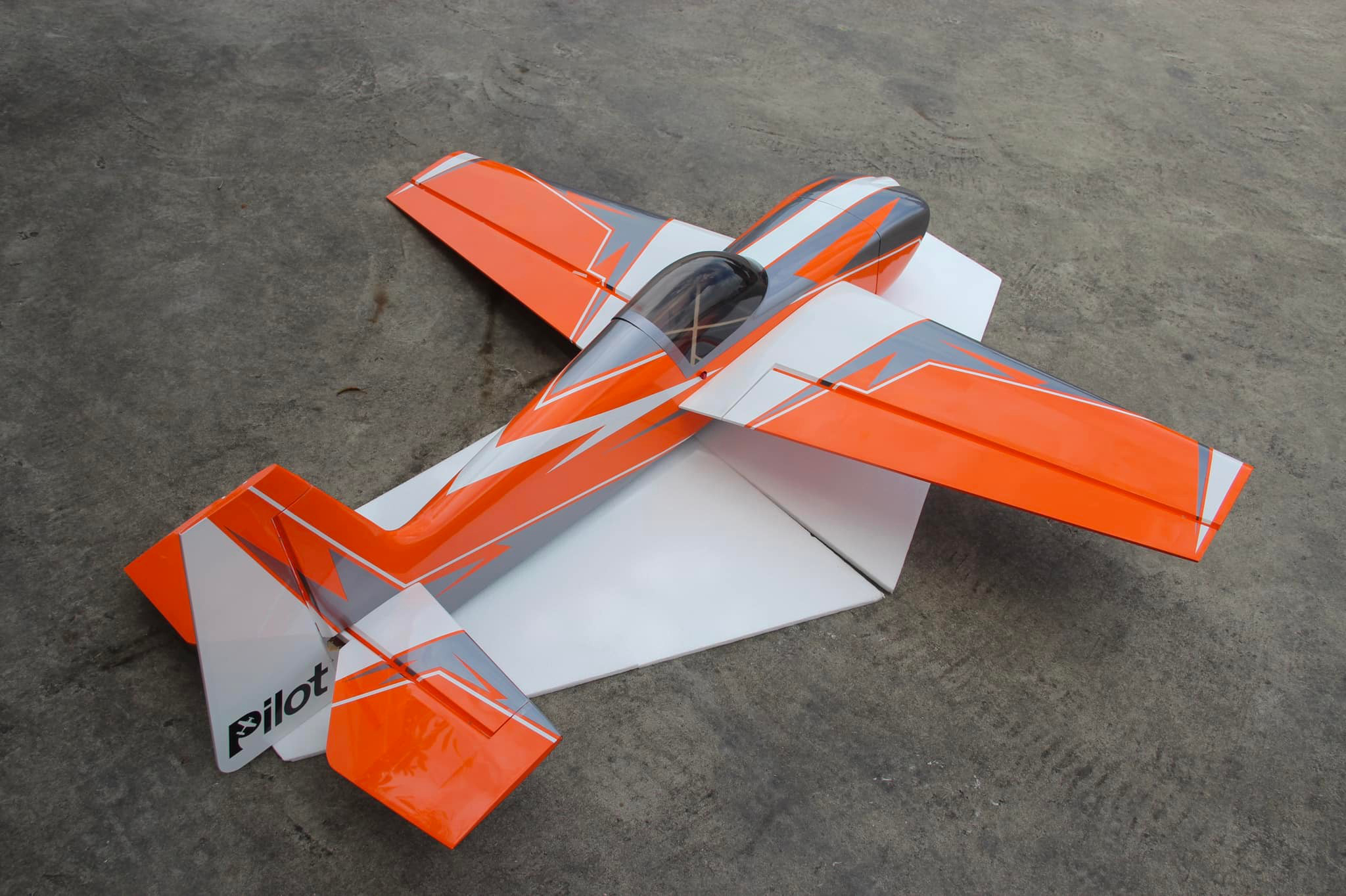

Pilot-RC Laser 67IN (Orange/Silver/White 08) PIL694

That’s right! Another new size of our popular Laser, this time for 20cc engines or electric power!
Fully designed from the ground up for out and out performance, keeping in line with current demand for faster, more aggressive and more agile models, while still keeping the well know great flying characteristics Pilot-RC models are known for.
You really need to see the videos of this model in action to understand its capability. In this case, its not a question of if the plane is quick enough, its whether you can keep up!

SPECIFICATIONS:
Model: Laser
Wingspan: 67in (1.702mm)
Length: 63.8in (1.620mm)
Wing area: 907sq in (5,850sq cm)
Weight: 7.94lbs (3.61kg)

Pilot-RC Laser 67IN 08 FEATURES:
NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings.
NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
NEW! Patented quick assembly system for SFG.
Strong yet light weight design, specially developed for precision acrobatic and extreme 3D flying
Highly prefabricated, experienced builders can have air ready in under a day
Removable wings
Laser engraved motor mounting position
Designed for both 20cc engine or electric motor
Internally mounted cowling – so no external screws exposed
Included servo extension wires and wing bags

INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tube as well as fiberglass control horns and wheel pants)
Included wing bags
Hinges ready to be installed and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pull-pull wires and pushrods with ball links
Included spinner

REQUIRED HARDWARE:
Motor: 20cc or equivalent electric
*Please note that the setup of this plane accepts both electric or gas engine, however in order to use gas engine, firewall and engine box must be reinforced.
Servos: 4 high torque plus throttle // Uses x1 per aileron, x1 for the elevator and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

PILOT-RC RECOMMENDED HARDWARE:
Servos: MacGregor MG5921HV 20.3Kg.cm/0.12s High Voltage Servo
Servo arms: MacGregor Heavy Duty Servo Arms (ACC0017) (Please note these arms are supplied with Pilot-RC 67in Aircraft Power Pack with Servos (PIL408))
Electric Motor & ESC: 67in Aircraft Power Pack (PIL406) or 67in Aircraft Power Pack with Servos (PIL408)

BUILD INFORMATION
COWL SIZE
A: 222mm – B: 222mm – C: 228mm – D: 232mm

EXHAUST TUNNEL SIZE
C: Unlimited
Due to the open tunnel design in the Laser, there is no backplate (measurement C) so there is no limit to the length of exhaust that can be used.

RUDDER HORNS AND PULL PULL LOCATION
B: 52mm – C: 34mm – D: n/a – E: n/a

SERVO EXTENSION LENGTHS
Throttle: No extension required
Each aileron: 25cm (to reach receiver direct)
Each elevator: 80cm
Rudder: Pull pull, no extension required
Direct drive, 80cm

CENTRE OF GRAVITY
142mm – Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
