Pilot-RC Extra NG 78IN 01 (Red/Blue/White) PIL654

Description

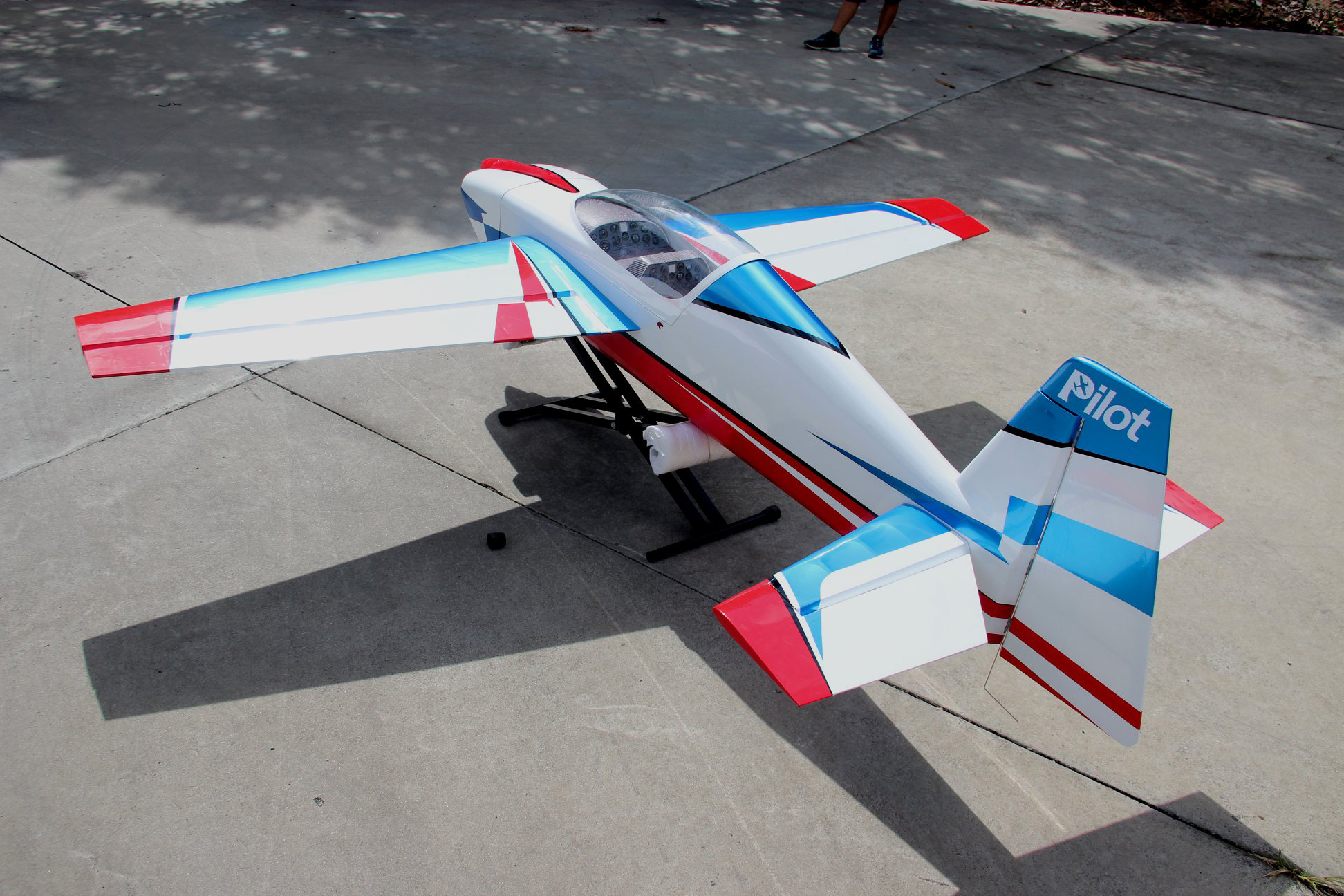

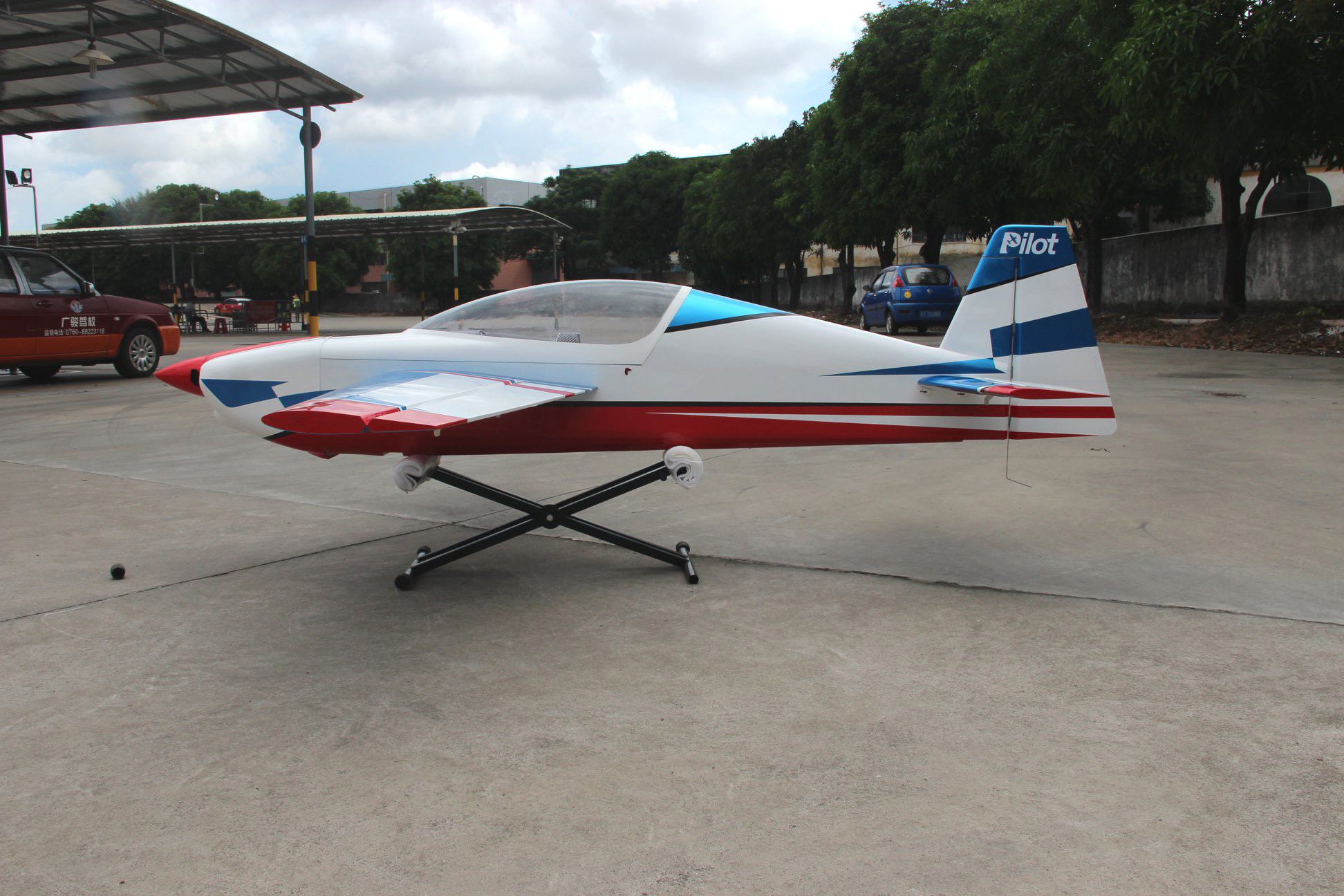

Pilot-RC Extra NG 78IN 01 (Red/Blue/White) PIL654

A brand new design, built from a classic. In 2019 Extra Acrobatic Aircraft unveiled their latest masterpiece, and now in 2020 Pilot-RC is unveiling ours.

The Extra NG is the latest iteration of the Extra family, each version becoming more precise and more agile than ever before, and this feeds down all the way through our models.

This new design, combined with all of Pilot-RC’s latest build innovations and methods provide a high quality kit that can be built within minutes upon arrival at the flying field and relied upon for strength, agility and all round fun.

SPECIFICATIONS:
Model: Extra NG
Wingspan: 78in (1.970mm)
Length: 74.2in (1.884mm)
Wing area: 1,216sq in (7,847sq cm)
Weight: 12.5lbs (5.7kg)

Pilot-RC Extra NG 78IN FEATURES:

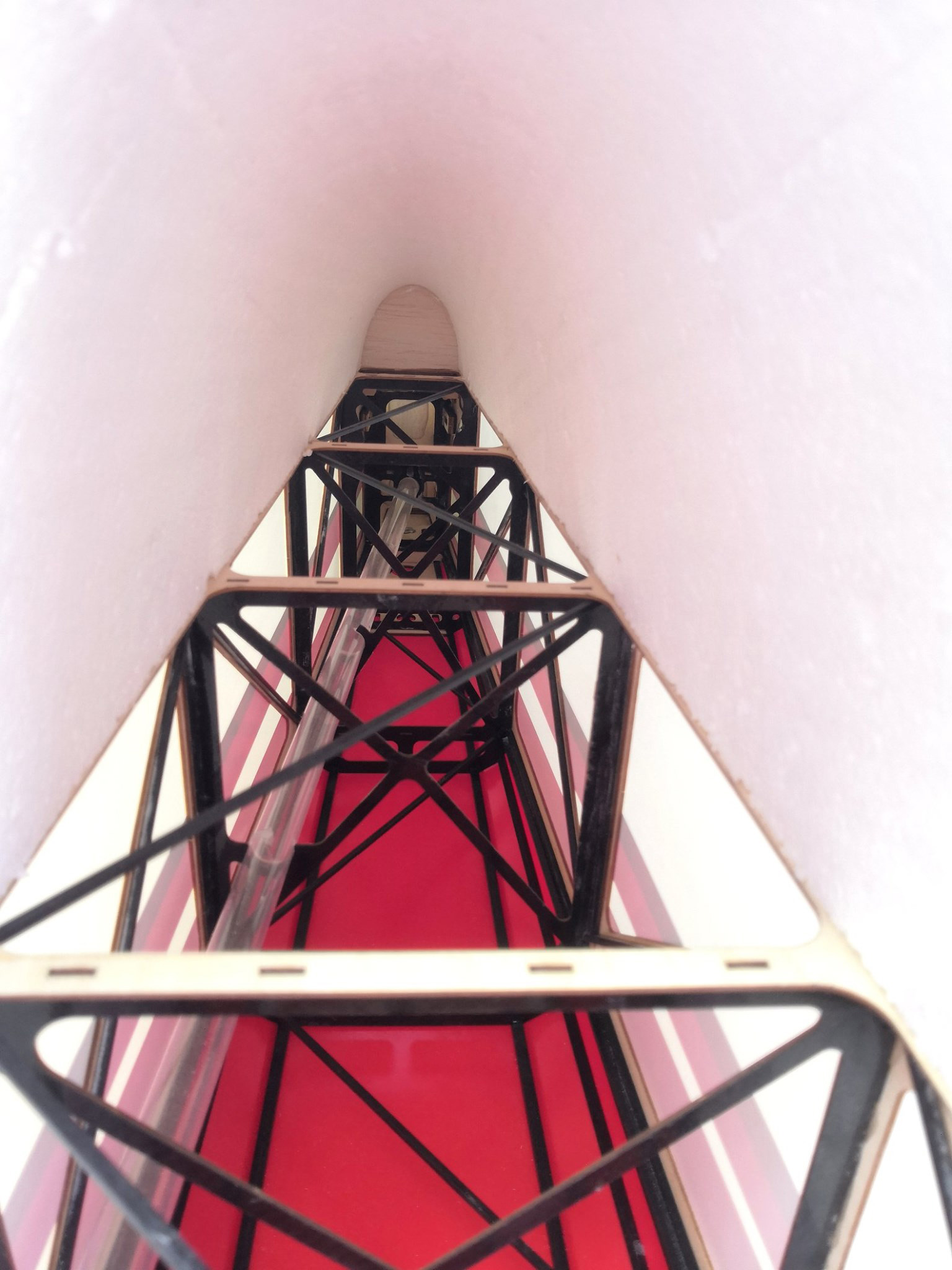

NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
NEW! Patented quick assembly system for wings, stabilazer and SFG.

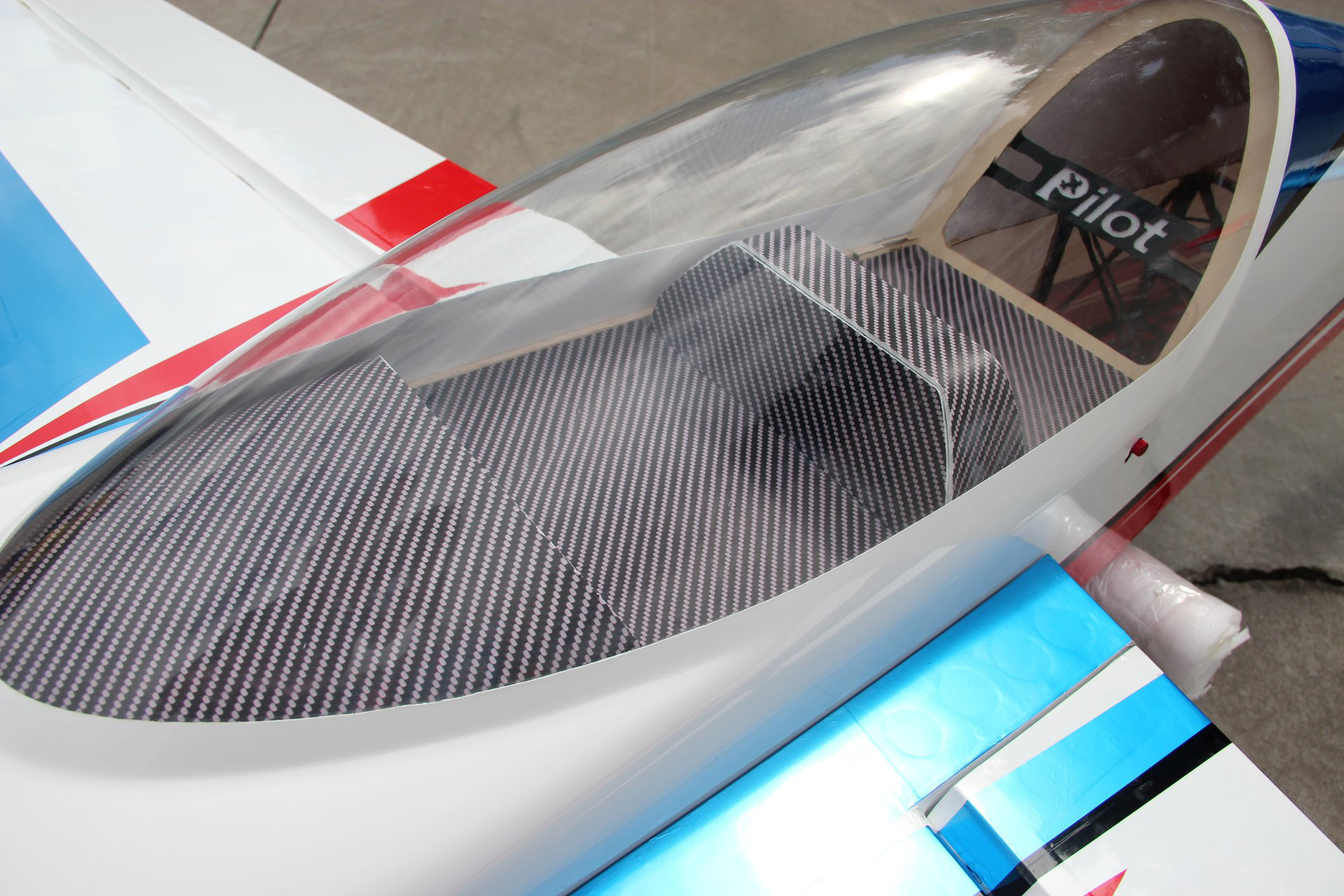

NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
Film covering applied over a Genuine German Oracover (Ultracote) base
Highly prefabricated, experienced builders can have air ready in under a day
Pre-installed aileron and elevator hinges (glued and pinned)
Easy canister installation due to open construction

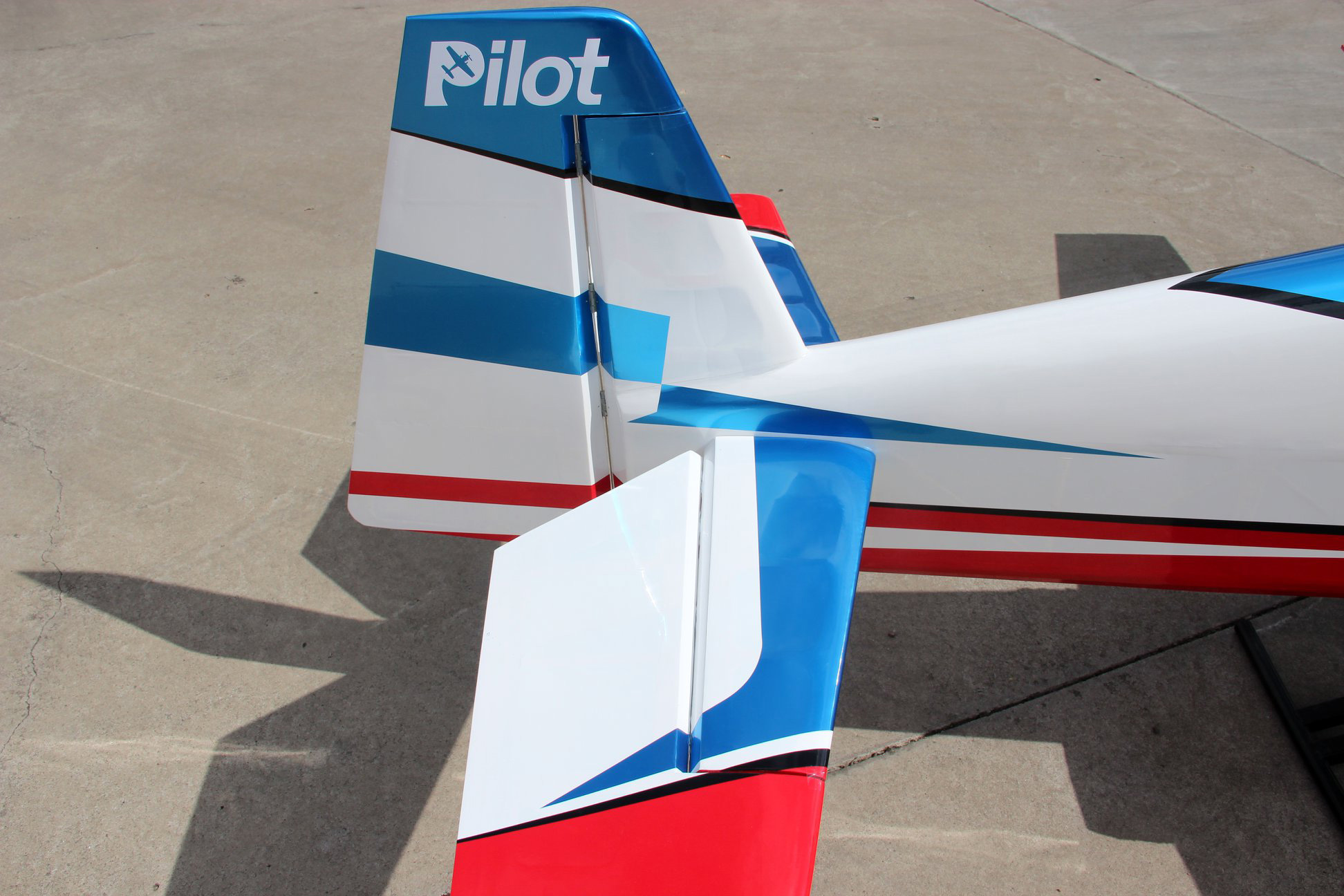

Removable wings and stabiliser
Laser engraved motor mounting position
Pull-Pull system for Rudder servo

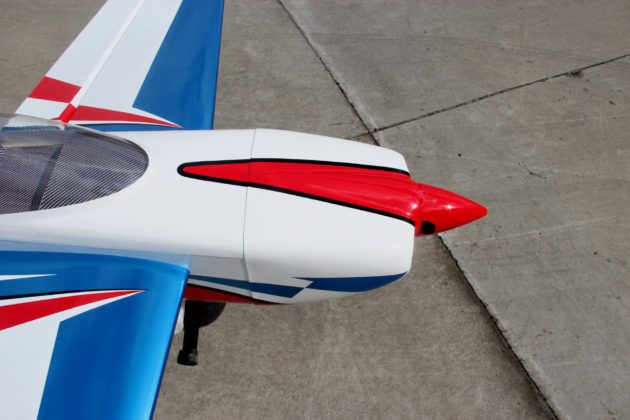

Cowl fits both gasoline and electric motors

INCLUDED HARDWARE:
Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
Pre-installed hinges and pre-mounted canopy
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels, axels and wheel pants
Pre-prepared pushrods with ball links
Matching carbon spinner

REQUIRED HARDWARE:
Motor: 30-40cc or equivalent electric
Servos: 5 high torque plus throttle // Uses x1 per aileron, x1 per elevator half and x1 on rudder
Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

RECOMMENDED HARDWARE:
Servos: MacGregor MG5921HV 20.3Kg.cm/0.12s High Voltage Servo
Servo arms: Pilot-RC 1.6in Aluminium arms (PIL302)
Engine: DLE-35RA Two-Stroke Petrol Engine or DLE-40 Twin Two-Stroke Petrol Engine
Wingbags: Pilot-RC Wing Bag for 35cc Aerobatic Plane

BUILD INFORMATION
Pilot-RC Slick Cowl Size
A: 262mm – B: 252mm – C: 243mm – D: 237mm

Pilot-RC Slick Exhaust Tunnel Size
A: 466mm – B: 72mm – C: 466mm – D: 90mm – E: 162mm

Pilot-RC Slick Rudder Horns and Pull Pull Location
A: 74mm – B: 104mm – C: N/A – D: 37mm

SERVO EXTENSION LENGTHS
Throttle: 10cm
Each aileron: 25cm (to reach receiver direct)
Each elevator: 70cm
Rudder: Pull pull, no extension required

CENTRE OF GRAVITY
180mm – Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
