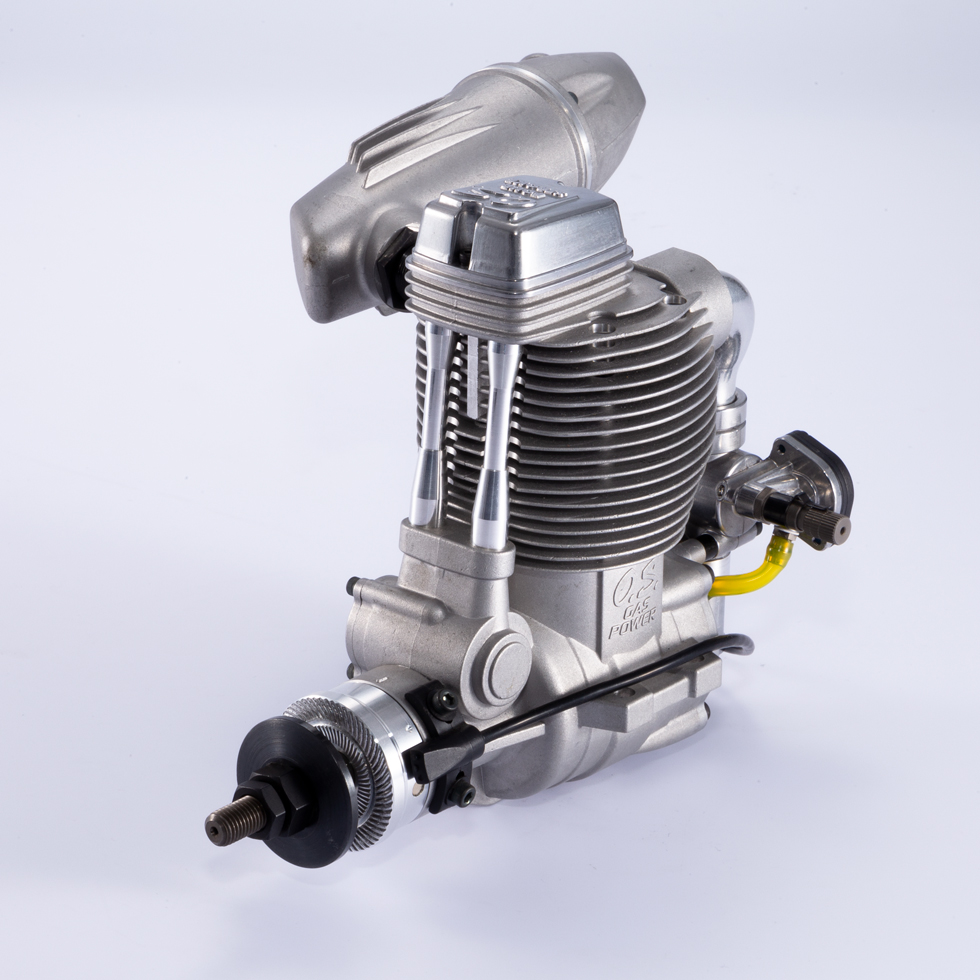

OS GF30 II Petrol Engine w/F-6040 Silencer L-OS3A010

Description

OS GF30 II Petrol Engine w/F-6040 Silencer L-OS3A010

There are many attractive airplanes for 4 stroke 120/150 size glow engine in the market. GF30II perfectly fits airplanes in this category. The new carburetor 70T is designed for easy adjustment and stability. IG-07 ignitor has applied a new plug cap for easy fit to a spark plug. The plug cap moves freely on the spark plug so that you can decide the best angle of it depending on layout. The F-6040 silencer muffles the noises and creates typical 4-stroke exhaust sound. Linear throttle response is suitable for both scale and aerobatic airplanes. A long awaited radial mount is released at the same time as an optional part.

Standard Accessories
F-6020 silencer, IF-07 igniter and spark plug ME-8 are included as standard accessories.

Specification

Displacement 29.94cc/1.827cu.in.
Bore 38.0mm/1.496in
Stroke 26.4mm/1.039in
Output 2.8ps/2.76hp/9,000r.p.m.
Practical rpm range 2,500-18,000r.p.m
Weight 1,010g /34.92oz.(engine)
113g/3.99oz. (silencer)
95g/3.35oz. (igniter)
Features

The new pump PD-09 supplies fuel consistently regardless of the orientation of an airplane. (The carburetor is removed to show the pump.)
The carburetor has a built-in regulator. The metering needle and the rotor are modified for easier adjustment and stability.
The F-6040 silencer muffles the noises and creates typical 4-stroke exhaust sound.
IG-07 ignitor has applied a new plug cap for easy fit to a spark plug. The plug cap moves freely on the spark plug so that you can decide the best angle of it according to the layout.
The optional radial mount reveals best performance of GF30II. It is long awaited and we have decided to make it even in a small production batch. (code No.71904400)
GF30II is equivalent to 4 stroke 120–150 glow engine. There are various ARF airplanes in this category.
