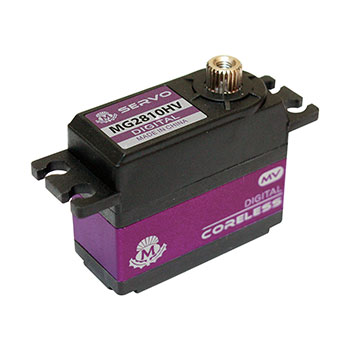

MacGregor MG2810HV

Features:
High performance high voltage coreless digital servo
High-precision metal gears with hard anodising
Dual Bearing Support
Metal centre case to act as a heat sink
Ideal for 450-500 class Helicopter swashplate
JR style lead and plug
25 tooth spline (Futaba style)
Product Description:
MacGregor MG2810HV is part of MacGregor’s range of high voltage digital servos. This high voltage servo has superceeded the MG2607HV.
MacGregor’s HV servos are designed with motors and electronics that operate off the direct voltage of a 2-cell Li-Po, Li-Ion, or Li-Fe receiver battery pack. This eliminates the need for a regulator and lowers the chance for a power failure that can cause a catastrophic failure of your model. Also note that the HV servo specs are shown at the higher voltage (8.4V 2S LiPo) but will still operate on a standard 5-cell 6V NiCd, Ni MH battery with a reduction in performance of approximately 10% in speed and torque.
Specifications:
Dead band: 1µs
Working frequency: 1520µs / 330hz
Motor: Coreless Motor
Operating Speed (5.0 / 6.0 / 7.4 / 8.4V): 0.12 / 0.10 / 0.08 / 0.07s/60°
Stall Torque (5.0 / 6.0 / 7.4 / 8.4V): 6.6 / 7.4 / 9.0 / 10.0kg.cm
Dimensions: 35 x 15 x 29mm /1.38 x 0.59 x 1.14in
Weight: 28g (0.99oz)
Connector Wire Length: JR 260mm (10.14in)
Bearing: 2BB

Specification

Specification

Servo Power

3.0kg to 7.9kg, 8.0kg to 14.9kg

Servo Voltage

Servo 4.8v, Servo 6v, Servo 7.4v

Servo Operation

Digital Servo

Brand

MacGregor

Gear Material

Metal Gear

Servo Size

Micro / Mini
