Kyosho Mini-Z 4X4 MX-01 Suzuki Jimny Jungle Green (KT531P) 32523GR

Description

The combination of the highly-detailed body and a completely new 4×4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler.

In 2019 the world’s most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scale realism in the hobby-grade RC category. The continuous pursuit of performance and evolution has led to the creation of a completely-new ‘MINI-Z 4×4’ design that delivers an all-new driving experience for RC fans of all stripes, with superior overall design, driving performance and high-quality injection-molded scale body construction. A significant feature of the MINI-Z 4×4 series is the greater emphasis of body detail and quality of finish that even surpasses existing benchmarks set by the MINI-Z. The body is also molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4×4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4×4, specially geared to run well in the low to medium speed ranges common in crawling.

Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4×4 needs is 8 x AAA alkaline batteries (sold separately). Enjoy driving under any conditions, from normal driving to rock crawling while appreciating the stunning visual appearance. The Kyosho Mini-Z 4×4 is the only mini crawler that delivers a full range of crawling performance in a smaller package.

Technical Data:

Length 193mm
Width 84mm
Height 90.0mm
Chassis Type MX-01
Wheel Base 120mm
Tread F/R:72.7mm
Weight 242g (excl. battery)
Motor/Engine 130 Class
Gear Ratio 55.44:1/46.20:1/39.60:1
                 39.60:1/34.65:1/34.65:1
Front Tire Diameter F37.0mm
Rear Tire Diameter F37.0mm
Front Tire Width 12mm
Rear Tire Width 12mm
Speed:Approx. 2.7km/h – 5.4km/h  (Pinion gears 10T – 20T)
Running Time Approx. 60 mins
Kit Contents:

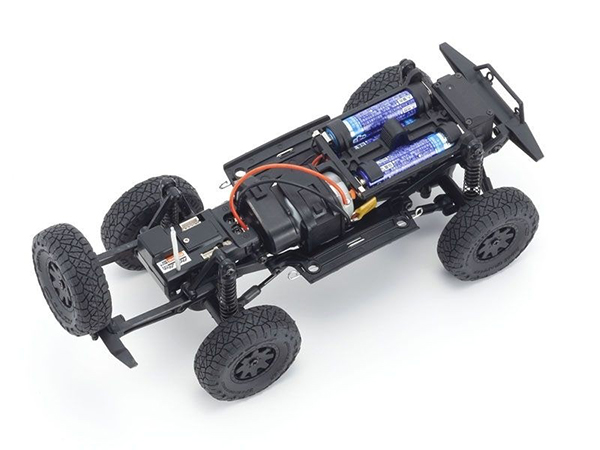

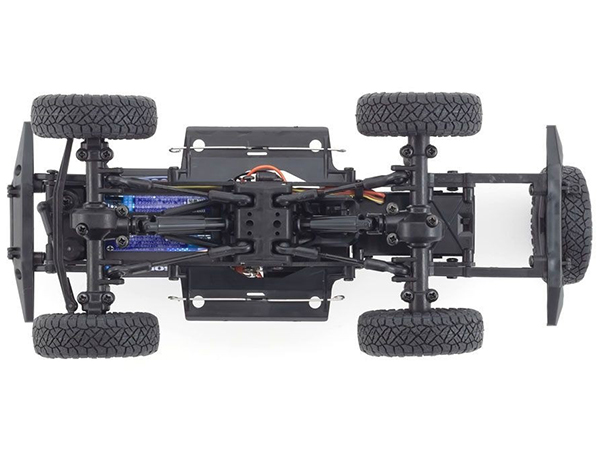

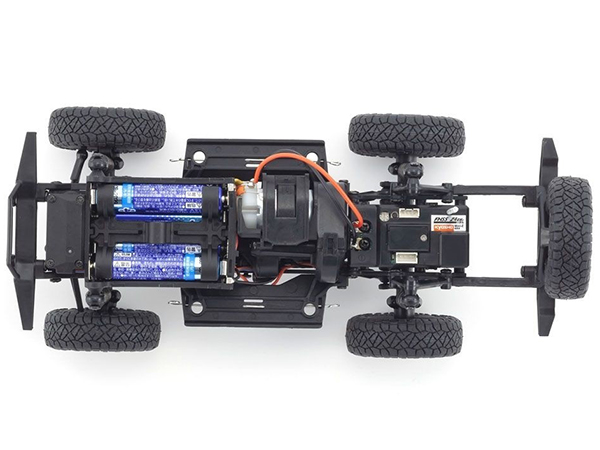

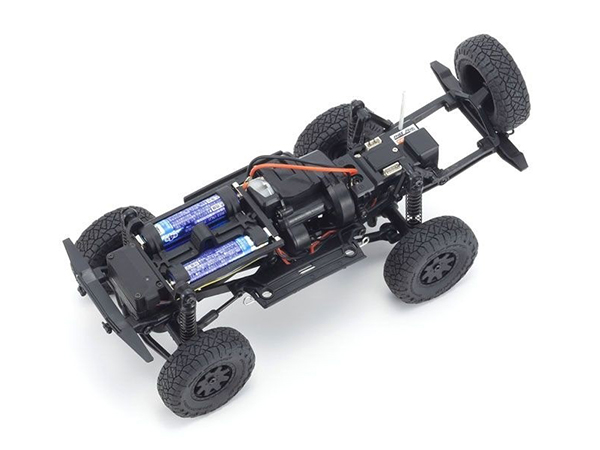

Complete chassis with built-in electronics.
Factory-painted body complete with many fine details

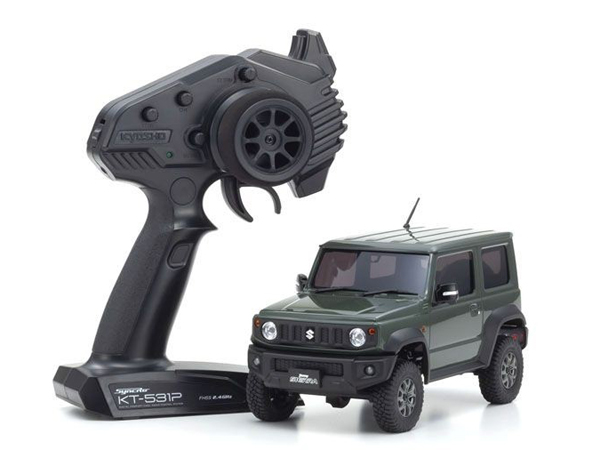

KT-531P 2.4GHz transmitter
Pinion gear set?10T?12T?14T?16T?18T?20T?
3 types of pinion gear spacers
Required for Operation:

4 x AAA batteries for the transmitter
4 x AAA batteries for chassis ?Alkaline or NiMH?
