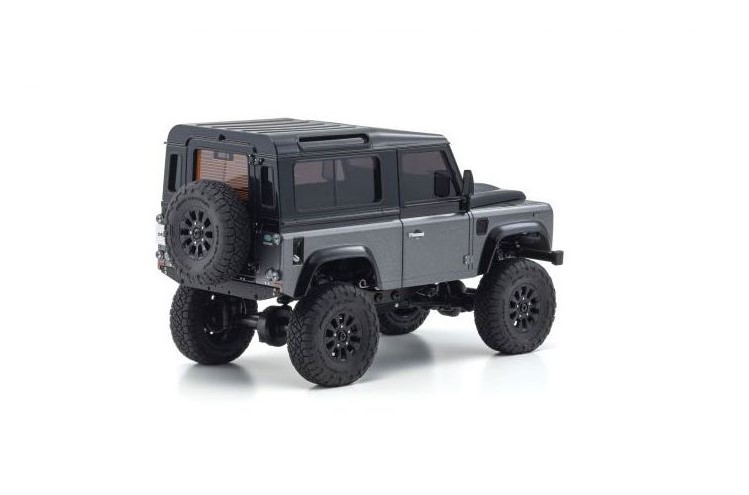

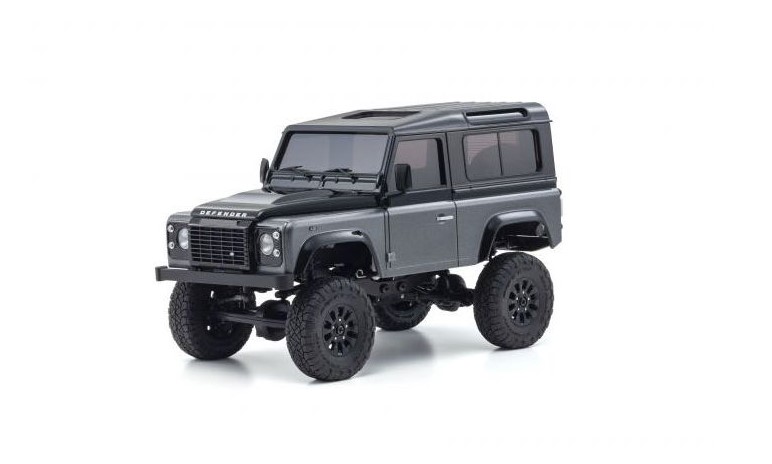

Kyosho Mini-Z 4X4 MX-01 Land-Rover Defender Autobiography G-BK (KT531P)

Description

Kyosho Mini-Z 4X4 MX-01 Land-Rover Defender Autobiography G-BK (KT531P)

The combination of the highly-detailed body and a completely new 4×4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler.

In 2019 the world’s most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scale realism in the hobby-grade RC category. The continuous pursuit of performance and evolution has led to the creation of a completely-new ‘MINI-Z 4×4’ design that delivers an all-new driving experience for RC fans of all stripes, with superior overall design, driving performance and high-quality injection-molded scale body construction. A significant feature of the MINI-Z 4×4 series is the greater emphasis of body detail and quality of finish that even surpasses existing benchmarks set by the MINI-Z. The body is also molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4×4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4×4, specially geared to run well in the low to medium speed ranges common in crawling.

Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4×4 needs is 8 x AAA alkaline batteries (sold separately). Enjoy driving under any conditions, from normal driving to rock crawling while appreciating the stunning visual appearance. The Kyosho Mini-Z 4×4 is the only mini crawler that delivers a full range of crawling performance in a smaller package.

TECHNICAL DATA

• Length 185.8mm
• Width 83mm
• eight 104.0mm
• Chassis Type MX-01
• Wheel Base 110mm
• Tread F/R:72.7mm
• Weight 238g (excl. battery)
• Motor/Engine 130 Class
• Gear Ratio 55.44：1/46.20：1/39.60：1
  34.65：1/30.80：1/27.72：1
• Front Tire Diameter Φ42.0mm
• Rear Tire Diameter Φ42.0mm
• Front Tire Width 14.3mm
• Rear Tire Width 14.3mm
• Battery 4 x AAA alkaline
• Transmitter Syncro KT-531P
• Speed Approx. 3.3km/h〜6.6km/h (Pinion gears 10T〜 20T)
• Running Time Approx. 60 mins

KIT CONTENT

• Complete chassis with built-in electronics.
• Factory-painted body complete with many fine details
• KT-531P 2.4GHz transmitter
• Pinion gear set（10T、12T、14T、16T、18T、20T）
• 3 types of pinion gear spacers

REQUIREMENT TO RUN

• 4 x AAA batteries for the transmitter
• 4 x AAA batteries for chassis （Alkaline or NiMH）

Other Mini-Z crawlers can be found here
