Kyosho Fazer Mk2 Chassis Kit 34461B

Description

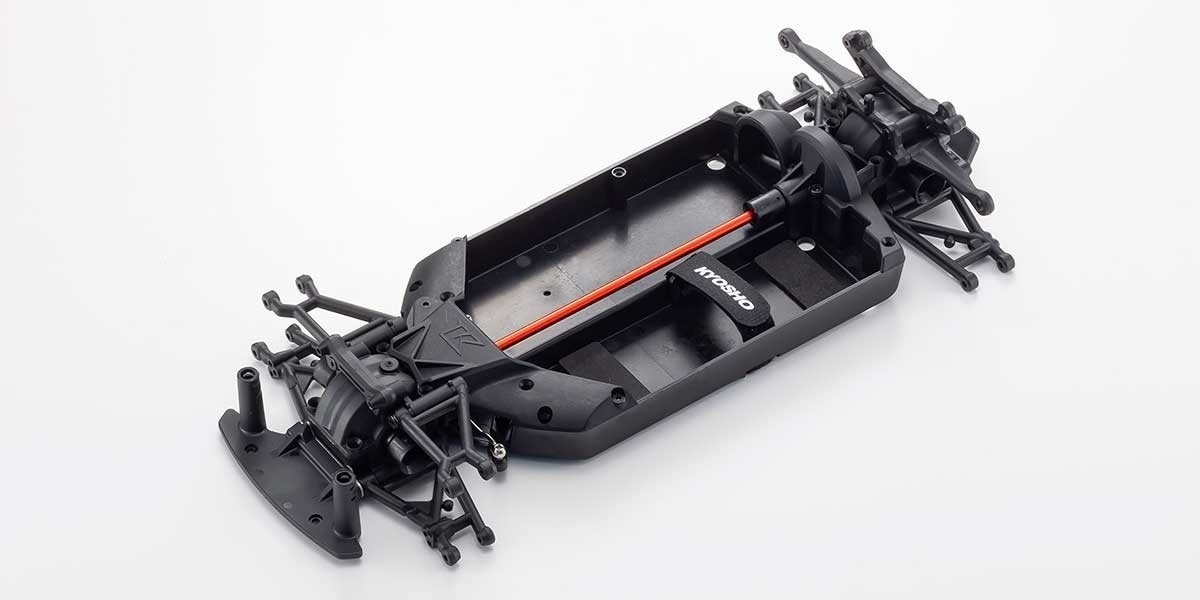

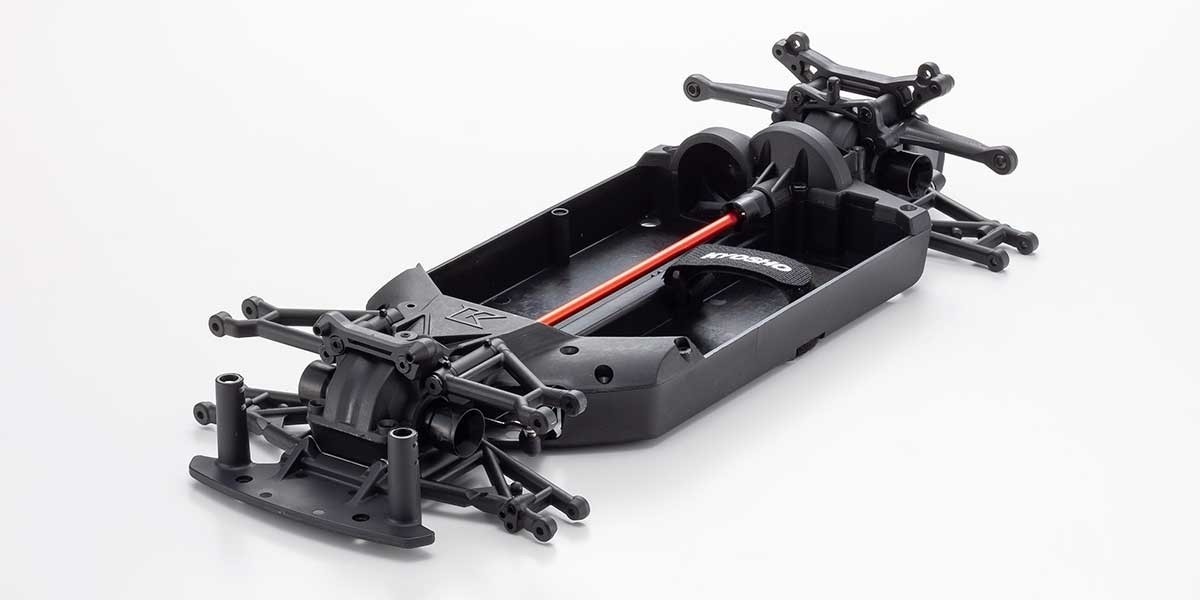

Kyosho Fazer Mk2 Chassis

Equipped with popular optional parts

This chassis kit is an optimal base for a racing vehicle

The FAZER Mk2 Readyset was created for the pure enjoyment of R/C car driving. Now available as a chassis kit, owners have the flexibility to add their own body and R/C system. Specifications have been elevated with optional parts such as HD TC center shaft S and TC universal swing shaft L to enhance the unrivaled symmetrical design and front-rear suspension balance of the lightweight chassis for R/C racers to enjoy. While the deckless design looks simple, a reduced number of components improves maintenance efficiency and optimizes torsional rigidity. Incorporation of nylon material further reduces weight and improves impact resistance. With its unique design, the FZ02 chassis embodies features and performance that will appeal to R/C drivers of all levels.

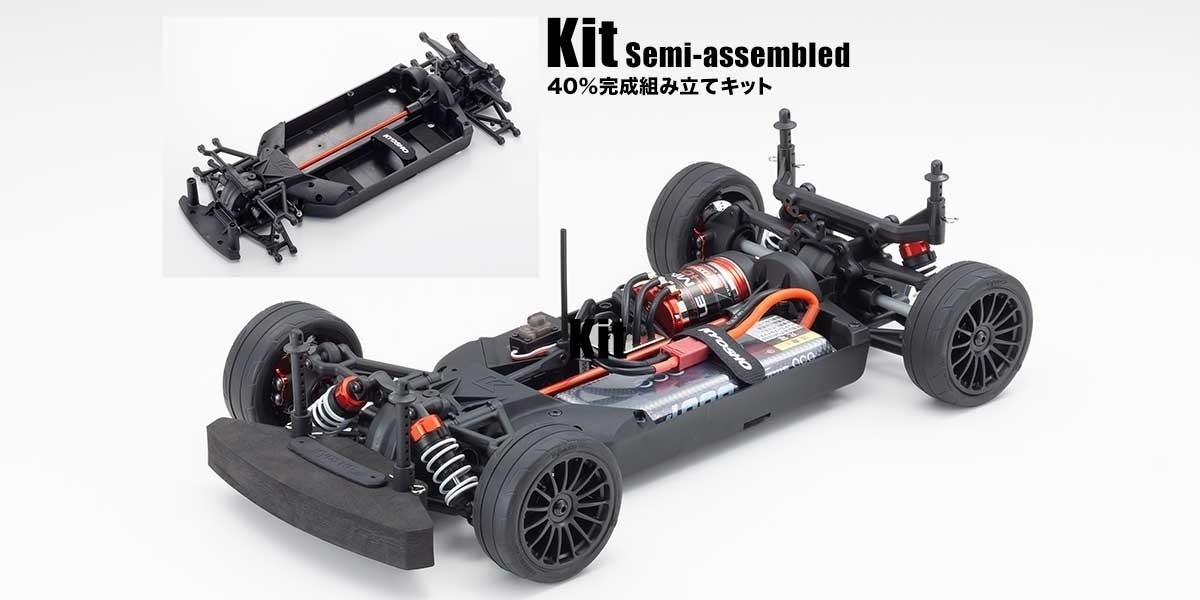

● 40% pre-assembled (shocks and diff gears are not filled with oil so assembly can be completed to preferred setting). The FZ02s effective low center of gravity design compliments the high strength and rigidity realized through front & rear stiffeners and rib reinforcement at key sections of the chassis.

● Duralumin HD TC center shaft S (FAW209) provides increased rigidity compared to the standard resin shaft included in the Readyset. In addition to smoother driving transmission, the red anodized color has striking visual appeal.

● TC Universal swing shafts L (FAW202) on the front drive section don’t drop out on heavy contact like dog bone shafts. In addition, the swing shafts deliver consistent drive transmission even when joint is at a wide steering angle.

● A special resin transponder mounting stay is included for when the chassis is competing in race events. There is no need to make a handmade stay or holes in the body to fit a transponder.

Kyosho Fazer Mk2 Chassis Technical data

● Length 375mm
● Width200mm/190mm
● Ground clearance 8mm (approx.)
● Wheelbase 260mm
● Tread（Body width:190mm）F:164mm/R:164mm
● Tread（Body width:200mm）F:174mm/R:174mm
● Tires F: 66mm x 25mm/R:66mm x 25mm
● Gear Ratio 6.54:1
● Total storage weight Approx. 1490g (with 7.4V / 4000 LiPo)

Kit contents

● 40% pre-assembled chassis
● FAW202 TC Universal Swing Shaft S
● FAW209 HD TC Center Shaft S
● Aluminum Motor Dust Plate
● transponder mounting stay
● +0mm off-set wheel hub & M4 x 16 Wheel screw（for 190mm width body）
● +5mm off-set wheel hub & M4 x 22 Wheel screw（for 200mm width body）
● body mounts for various manufacturers bodies
● FAT701M TC Tires（M）
● Inner Sponge
● VZH003BK Wheel
● 1.5/2.0/2.5mm Hexagonal wrench
● 3/4/5/5.5/7/8mmSpanner

Required for operation

● 2ch 1 servo R/C system
● Body
● 540-550 class motor
● ESC compatible with motor used
● Servo
● Battery charger
● Battery for chassis compatible with ESC used
● 4 x AA batteries for transmitter
● Damper Oil
● Grease (for Ring Gear & Diff)
● Silicone OIL (for Diff）
● Pinion Gear
● Paint for polycarbonate body
● Tools
