Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.

EAN: 6928493306987 SKU: O-GAC200WDUAL Category:

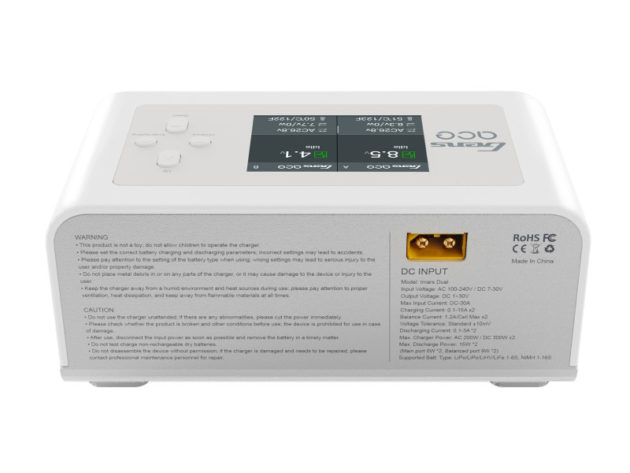

Imars Dual Charger AC 200W / DC 600W O-GAC200WDUAL

Imars Dual Battery Charger supports 2 channel charging and discharging: DC port power supply supports maximum single port 300W charging, and AC power supply supports intelligent distribution of total power.
The power rate is 200W (2 channels), the maximum charging current is 15A, the charging current is adjustable, and the use and operation are simple; 7 operating modes of the products include charge, discharge, balance, storage, ExtDischarge, SyncCharging, digital power supply;

During the charging process of the product, the current task total voltage, charging/discharging current, working time and other information can be displayed in real time through the display window;

It can also query real-time single-cell voltage information, internal resistance, and temperature, which is convenient for users to understand battery performance and charging status;

The heat dissipation design can effectively ensure the continuous stable and reliable operation of the product.

Imars Dual Charger Features
Dual Channel AC/DC Smart Balance Charger.
Small & Lightweight Portable Design with wide-view IPS Display.
High power charging, capable of Max15 amp charge rates for one channel, worldwide 100V-240V voltage versatility, AC 200 Watts, DC 600 Watts.
External discharge function.
Synchronous output, 2-in-1 Fast-charging.
Built-in DC power source for different devices.
Controlled heat dissipation system.
Temperature compensation function.
Advanced safety features, UL94-V0 Flame Retardant Grade.
Protection of Short circuit / Overcurrent / Overcharge / Overvoltage

Imars Dual Charger Specification
Input Voltage: AC100-240V DC7-30V
Output Voltage: DC 1~30V
Max Input Current: DC 30A
Max Discharging Power: 15W*2(Main port 6W*2, Balance port 9W*2)
Maximum Charging Power: 100W*2 DC 300W*2
Charge Current: 0.1-15A*2
Discharge Current: 0.1~3A*2
Cell Balancing: 1~6s
USB Output: 5V/2.4A
Display Type: 2.4 inch IPS LCD Display
Supported Battery Chemistries: LiPo/LiPo/LIHV/LiFe 1~6S; NiMH/Cd 1~16S
Accessories Included: AC Input Cable / XT60-T adapter / XT60-EC5 adapter / XT60-EC3 adapter

Spec Data





Gens Ace
