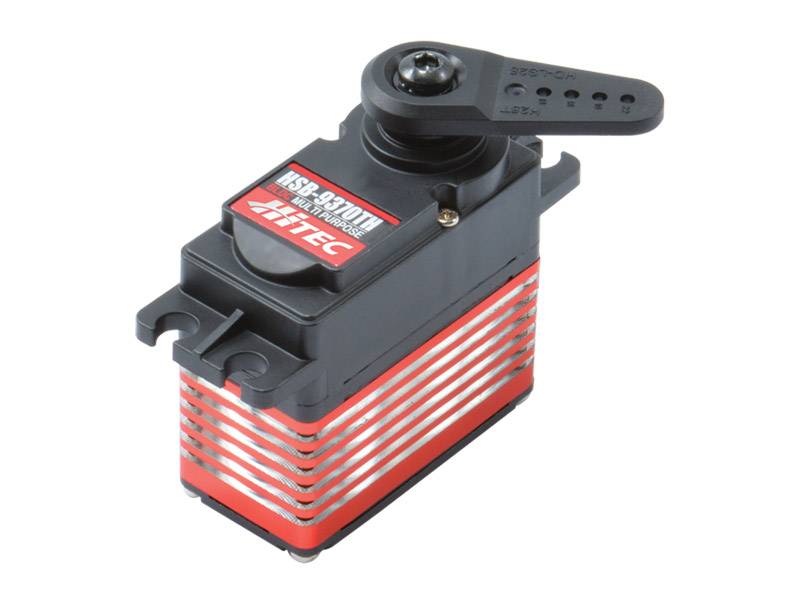

Hitec HSB9370TH Brushless High Voltage (HV) Multi-Purpose Servo
Original price was: £208.99.£188.09Current price is: £188.09.Save £20.90
Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.
Description
Description
Multipurpose version in 9000-series with titanium gears and aluminium case. High voltage with low-current-draw brushless motors.
Special Features:
– Constant torque output: Revolutionary circuit and motor designs allow the HSB-9XXX Series servos to maintain their speed in a more consistent manner, regardless of load.
– Hybrid MPD 1st Gear: Unique ultra-durable Metal/Plastic/duralumin hybrid first gear prevents inadvertent electrical noise from affecting other components within your aircraft or vehicle
– Custom NeuMotor: Designed by Steve Neu exclusively for the HSB-9XXX Series, these high performance, brushless motors provide long-standing durability and performance.
Brushless Advantages:
– At least FIVE TIMES longer-lasting than brushed servos.
– 30% faster response times.
– Greater resistance to jolts and vibration.
– Smoother operation.
– Same power consumption as brushed digital servos.
– Same compact case size as standard servos.
– Exceptionally durable geartrain.
– Smooth dual ball bearings
PLEASE NOTE: While compatible with most radio control devices, the regenerative braking feature of the HSB-93XX series servos may cause a problem if the device cannot accept a backflow of current. The types of devices that cannot accept this backflow are: Voltage Regulators, Power Safe Receivers and certain BEC circuits whether stand alone or integrated within an Electronic Speed Control. Check with the manufacturer or the Hitec website for a list of compatible models. If your device cannot accept a current backflow, then you must install a PAD (Power Absorbing Device – Hitec PN# 55756) as described in the manual. A PAD is included with every Hitec brushless servo.
| Dimensions | 1.57” x 0.79” x 1.50” (40 x 20 x 38mm) |
|---|---|
| Product Weight | 2.4oz (68g) |
| Output Shaft Style | 25 tooth (H25T) spline |
| Voltage Range | 6.0V – 7.4V |
| No-Load Speed (6.0V) | 0.12 sec/60° |
| No-Load Speed (7.4V) | 0.10 sec/60° |
| Stall Torque (6.0V) | 347 oz/in. (25 kg.cm) |
| Stall Torque (7.4V) | 347 oz/in. (25 kg.cm) |
| Max PWM Signal Range (Standard) | 700-2300μsec |
| Travel per µs (out of box) | .075°/μsec |
| Max Travel (out of box) | 120° |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -20°C to +60°C |
| Continuous Rotation Modifiable | Yes |
| Direction w/ Increasing PWM Signal | Clockwise |
| Deadband Width | 2µs |
| Motor Type | Brushless |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Dual Ball Bearings |
| Gear Type | Straight Cut Spur |
| Gear Material | Titanium (Hybrid MPD 1st Gear) |
| Wire Length | 11.81″ (300mm) |
| Wire Gauge | 20AWG |
Specification
Specification
| Servo Power | 25.0kg + |
|---|---|
| Servo Voltage | Servo 6v, Servo 7.4v |
| Servo Operation | Digital Servo |
| Brand | Hi Tec |
| Gear Material | Metal Gear |
| Servo Size | Standard |
