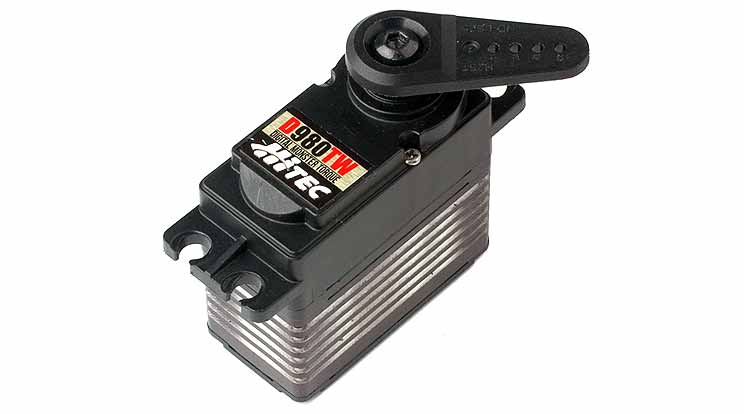

Hitec D980TW Wide Voltage Monster Torque Servo
Original price was: £179.99.£161.99Current price is: £161.99.Save £18.00
Description
Description
A programmable, 32-bit, high torque, water resistant, titanium gear servo
The titanium D-980TW is part of the Hitec D-Series dynamo servo line. All Hitec D-Series servos have been designed using brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 – 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitecs industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings a monster performance.
Key Features
- Programmable digital amplifier with MOSFET drive
- Long life (1M cycles) indirect potentiometer
- Durable titanium alloy metal gears with dual ball bearings
- Semipermanent magnetic rotary encoder
- Ultra hardness gear shaft with 3 axial metal bushing
- Water and dust resistant case
- Heat sink for motor
D980TW Servo Specifications
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V ~ 7.4V |
| Speed (Second @ 60°) | 0.28 ~ 0.21 ~ 0.17 |
| Maximum Torque Range oz. / in. | 361 ~ 500 ~ 611 |
| Maximum Torque Range kg. / cm. | 26.0 ~ 36.0 ~ 44.0 |
| Current Draw at Idle | 30 mA |
| No Load Operating Current Draw | 500 mA |
| Stall Current Draw | 6,200 mA |
| Dead Band Width | 1 µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.72 x 0.88 x 1.57 |
| Dimensions (Metric) | 43.8 x 22.4 x 40.0 |
| Weight (Ounces) | 2.76 |
| Weight (Gram) | 79.0 |
| Circuit Type | 32bit Programable Digital |
| Motor Type | Coreless Metal Brush |
| Gear Material | Titanium |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | H25T |
| Case Material | Plastic / Aluminum |
| Dust / Water Resistance | Splash Proof |
| Connector Gauge (AWG) / Strand Count | 20 / 80 |
Specification
Specification
| Servo Power | 25.0kg + |
|---|---|
| Servo Voltage | Servo 4.8v, Servo 6v, Servo 7.4v |
| Servo Operation | Digital Servo |
| Brand | Hi Tec |
| Gear Material | Metal Gear |
| Servo Size | Standard |
