Futaba T6PV remote control F-4G/T-THSS/S-FHSS with R404SBS FUT05003230-3

Description

Futaba T6PV remote control F-4G/T-THSS/S-FHSS with R404SBS FUT05003230-3

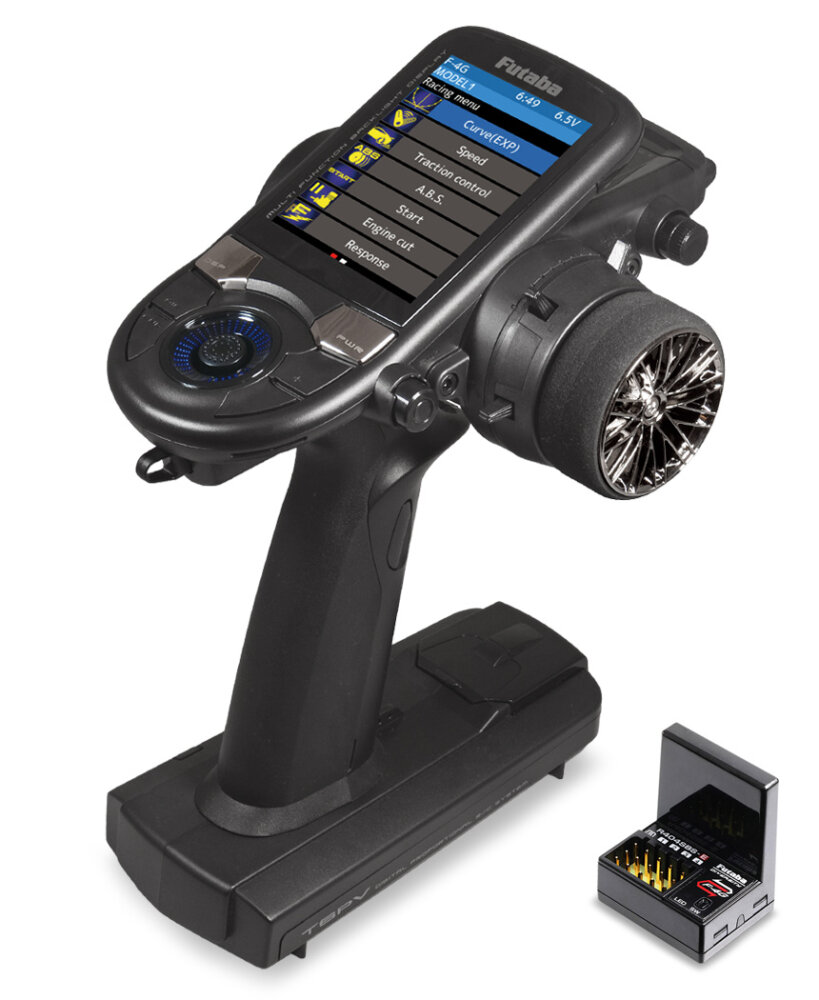

Futaba T6PV – 6-channel radio – with R404SBS receiver

High-middle radio with the fastest response function.
This is a mid-range transmitter that combines the functions of the T10PX with the operability of the T4PM Pulse. The full-color display enables intuitive operation. In addition, by supporting the fastest system “F-4G”, the “response/feel function” is easier to feel and ensures stability in operation.
The T6PV transmitter is compatible with F-4G, T-FHSS, S-FHSS and MINI-Z modes.
R404SBS and R404SBS-E are ‘F-4G’ compatible receivers.
The F-4G system and UR mode offer high-speed response that rivals that of the T10PX radio (*note 1).
Equipped with 6 system modes: F-4G, T-FHSS, S-FHSS, MINI-Z EVO, MINI-Z EVO2 & MINI-Z FHSS
Although T-FHSS SR mode is not supported, the “SR mode” of the servo can still be used in the servo settings of the F-4G system.
“Model Types” Normal, Large and Drift
Also equipped with settings for crawlers
Function to adjust response/feel: Adding a mellow touch and taking advantage of high-speed response makes driving easier.
Supports up to 6 channels (*Note 2)
The lightest in its class and highly balanced design
Equipped with micro SD card slot
Micro SD card is used to store model data, telemetry data, display photos of your vehicle on the transmitter, and update software. (Micro SD card sold separately. Supports SD/SDHC, not SDXC)
New wheel unit/APA/APA angler/trigger (*Note 3)
Rubber grip: In addition to the included size (M), you can choose an optional size (S or L) that is comfortable for you to use.
Wheel position can be adjusted with the steering APA (included items: steering APA (24.0) & angle spacer (5°)
Trigger end point adjustment: If you use the optional T10PX set of special trigger adjustment parts, you can adjust the end point in the throttle direction (= FWD) using the spacer, allowing you to adjust the throttle operation to your preferred feel.
Setup with bright, wide-angle, full-color LCD and jog button

Batteries (not included):
Requires dry batteries (AA). Optional LiFe batteries (FT2F1100B, FT2F1700B V2, FT2F2100B V2) can also be used.
A non-contact charger (LF-02) can also be used for LiFe batteries.
Optional batteries such as Tx LiPo batteries (LT2F2000B) and Tx Nickel Metal Hydride batteries (HT5F1800B) can also be used.

*Note 1: Be sure to use servos that are compatible with the UR mode.
*Note 2: When using channels 5 and 6 in F-4G mode, use an S.BUS2 servo or SBD-2 with the S.BUS2 connector on the R404SBS/R404SBS-E.
*Note 3: Adjustable Positioning Adapter – adapter for changing the position.

Features and specifications:

Setup menu:
Receiver Settings (F-4G / T-FHSS / S-FHSS and MINI-Z compatible)
For a list of our receivers that support each system, please click here.
MINI-Z is also compatible with MINI-Z EVO, MINI-Z EVO2 and MINI-Z FHSS (*Note 4).
Telemetry function is only available in F-4G and T-FHSS modes. It cannot be used in S-FHSS and MINI-Z modes.
*Note 4: MINI-Z FHSS requires the MINI-Z FS-RM005 module (manufactured by Kyosho Corporation).
Servo view: This is where you can check the servo function of all channels. You can check the function when setting the steering angle or the mixing function.
Throttle Mode: This allows you to set the neutral brake that applies the brakes when the throttle is in the neutral position.
Reverse: This function determines the direction in which servos and other devices operate in response to operation of the steering, throttle, channel 3/4 and other auxiliary channels of the transmitter.
Subtrim: Used when assembling a model to fine-tune the center position of the servo horn, which is used as a reference for the servo horn of each servo, and the link that connects the parts with rods.
Endpoint: Used during linking to adjust the left and right steering angle, throttle up/brake lever operating amount, and the up/down lever operating amount of channel 3/4 and other auxiliary channels.
Failsafe Function: This function sets the servo operating position in case the receiver is unable to receive the transmitter signal for any reason or the receiver battery voltage drops. The Failsafe, Hold and OFF modes are automatically canceled as soon as signals are received from the transmitter again.
Acceleration: The throttle/brake ramp characteristics near idle can be adjusted separately.
Trim/dial settings: You can set the functions that can be operated with the digital trims (DT1 to DT6) and the dial (DL1).
Switch settings: Select the functions to be operated by the push switches (SW1 to SW3) and set the operation method.
Idle speed boost: Improves engine starting by increasing the idle speed when starting a gasoline engine (boat). This function is also effective when you want to prevent braking when the power is cut off during driving due to the transmission ratio setting or the motor used in an electric car. However, for models MC971CR, MC970CR, MC960CR, MC950CR, MC851C, MC602C, MC402CR, etc., as with the neutral braking function, the idle-up switch must be activated as soon as the controller has detected the neutral position and is ready for operation.
D/R, ATL
Channel Setting: This function allows you to assign steering or throttle to any channel. This is convenient if you want to use steering or throttle on another channel, or if you want other channels to have the same function as steering or throttle.

Model menu:
Model selection, model copy
Model name
Delete model (SD card)
Reset data
Model type: You can use the standard settings that are suitable for 1/5 models and drifts.

Mixing modes:
Steering mix
Brake mix
Gyro Mixing
4WS Mixing
Double ESC
CPS Mixing (1,2,3): When using CPS-1 (optional), you can set the LED lighting pattern, etc.
Tank mix: mix for tracked vehicles such as tanks.
Program mix (1, 2, 3, 4, 5): It is also possible to set the mix master to telemetry.
Winch mix: This mix is effective for tracked vehicles.

Race menu:
Curve (EXP): Steering, throttle and brake can be adjusted separately.
Speed: Steering and throttle can be adjusted separately.
Traction control: Intermittent application of the accelerator allows you to steer gently and drive on the racing line. In addition, for drift cars, you can reproduce a pseudo-engine rev limiter sound by intermittently applying the engine towards the highest point.
ABS: When braking in a curve in vehicles with permanent four-wheel drive, the car will understeer. However, with this function, you can gently drive through the curve.
Start: Simply press the throttle slowly without releasing the grip, and the lever position will automatically change to the preset point, allowing a smooth start.
Engine shutdown: This function moves the throttle servo to a pre-set position (engine shutdown position) so that the engine can be stopped with a switch.
Response/feel: This function makes the response smoother if you feel that the servo response is too sensitive and difficult to operate. The soft side slows down the response, while the aggressive side speeds it up. With the feel setting deactivated, the response is the fastest.
Drag racing (trans brake): Stopping the vehicle with the throttle fully open (trigger) and releasing the trans brake allows for powerful acceleration.

Accessories:
Timer: Use one of four timers: on timer, tank off timer, lap timer and lap navigation timer.
Lap List: This is displayed when you want to check the lap memory data (each lap time) stored by operating the lap timer.
S.BUS-Servo: Special function for changing the parameters of Futaba S.BUS-/S.BUS2-servos.
change the UR servo settings
MC (ESC) link: Enables you to set up the ESC.
Gyro Link: Enables you to set the gyro.
Index table: Enables you to display an index table for DD cars.
translation Table: Calculates the final gear ratio from the input pinion, spur gear and the secondary ratio of the gearbox and displays it in a list.
END/DIR button settings: Enables you to customize the END/DIR button as a button to access your favorite menu.
Home screen display settings: Allows you to customize the display of the home screen.
Custom menu editing: Enables you to create your own frequently used functions.
Warning display: Low battery alarm, warning if you forget to switch off, MIX warning

System menus:
Display settings: You can adjust the brightness of the backlight, the dimming time, etc.
System Information: You can use the arrow key to set the user name, display language and units of the telemetry information. The software version is also displayed.
Buzzer: You can customize the switch/trim/jog button operation tones and the warning alarm tone pitch.
Battery settings: Setting the battery type allows you to access the corresponding battery alarm voltage.
Totalizer: You can display the total time the device has been on the home screen.
LED settings: You can adjust the brightness and lighting method of the control LED (always on, off, linked to the backlight).
Adjuster: You can correct the neutral position and the angle of operation of the steering wheel and the throttle.
Receiver update: You can perform the update via the radio control.

Supplied accessories:
APA-M wheel position change adapter
Bag of mounting screws
32° wheel adapters
L Brake lever
5° angle spacer
Large diameter steering wheel
UR/SR label
Operating instructions
Allen wrench

Included receiver:
R404SBS-E (for 1/10 electric cars)
